DICE



Bus Messages, DICE
For a further description of the car's bus system, see System overview, bus and diagnostics communication, petrol.

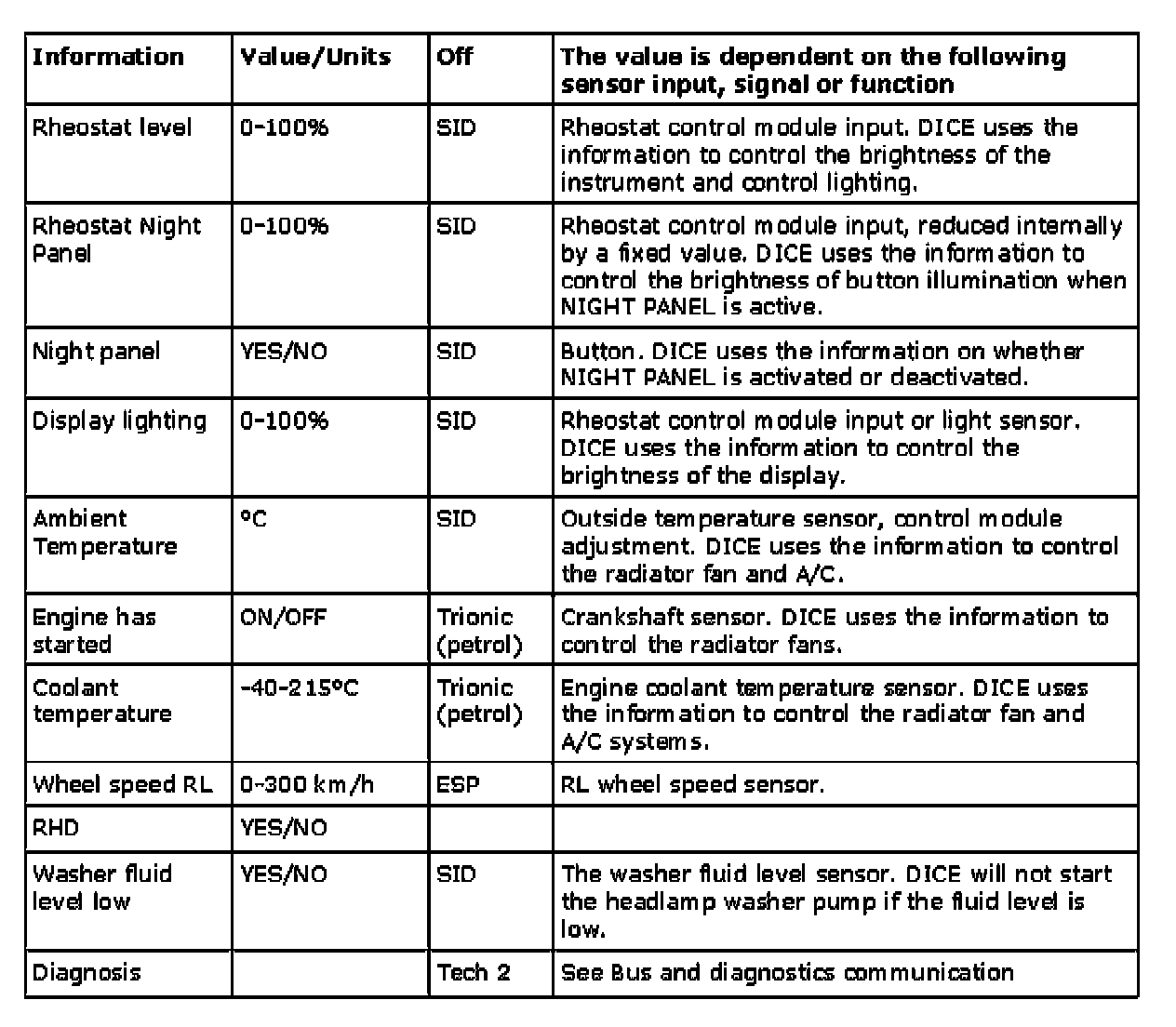

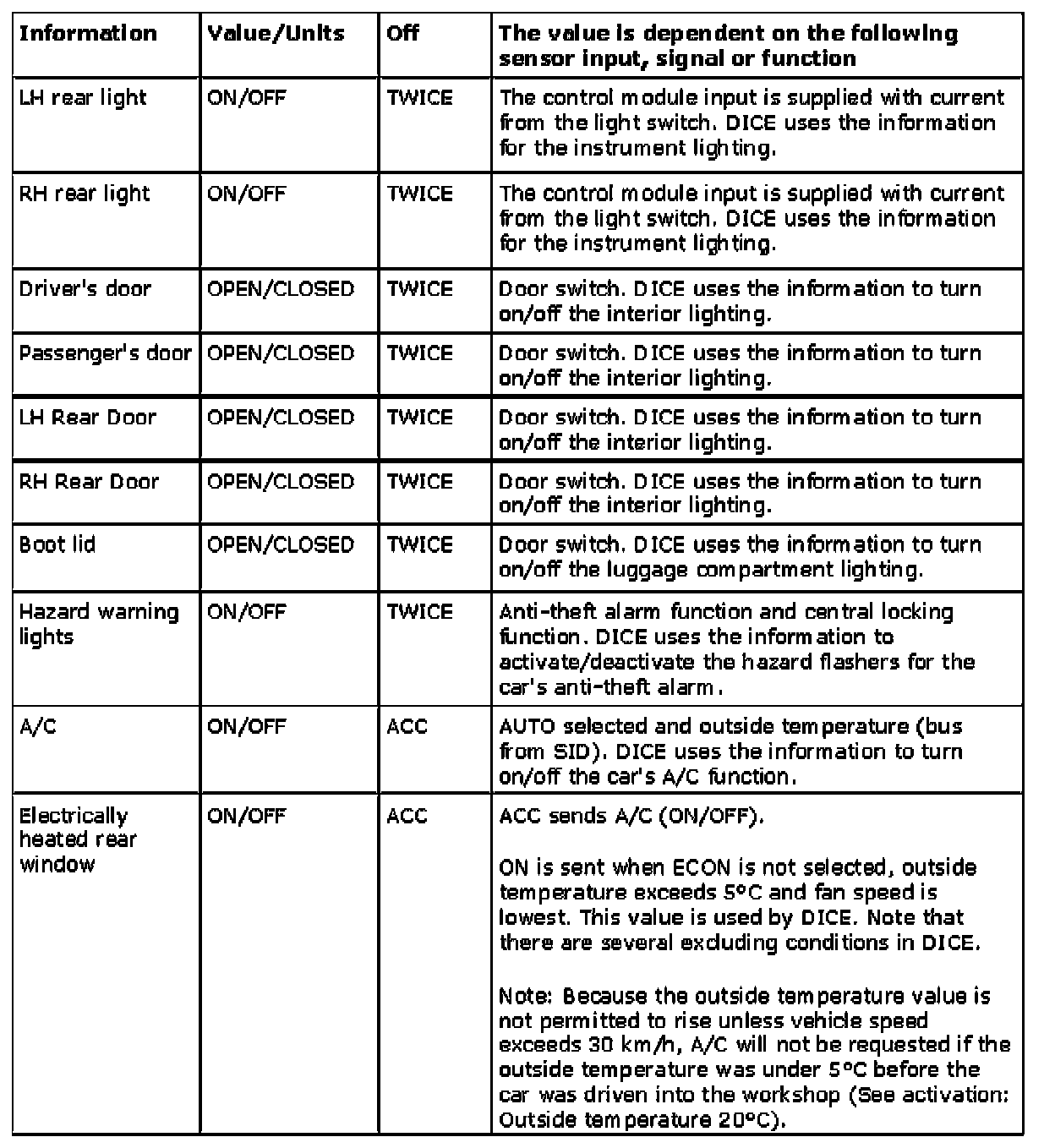

DICE Uses The Following Information

Part 1:




Part 2:

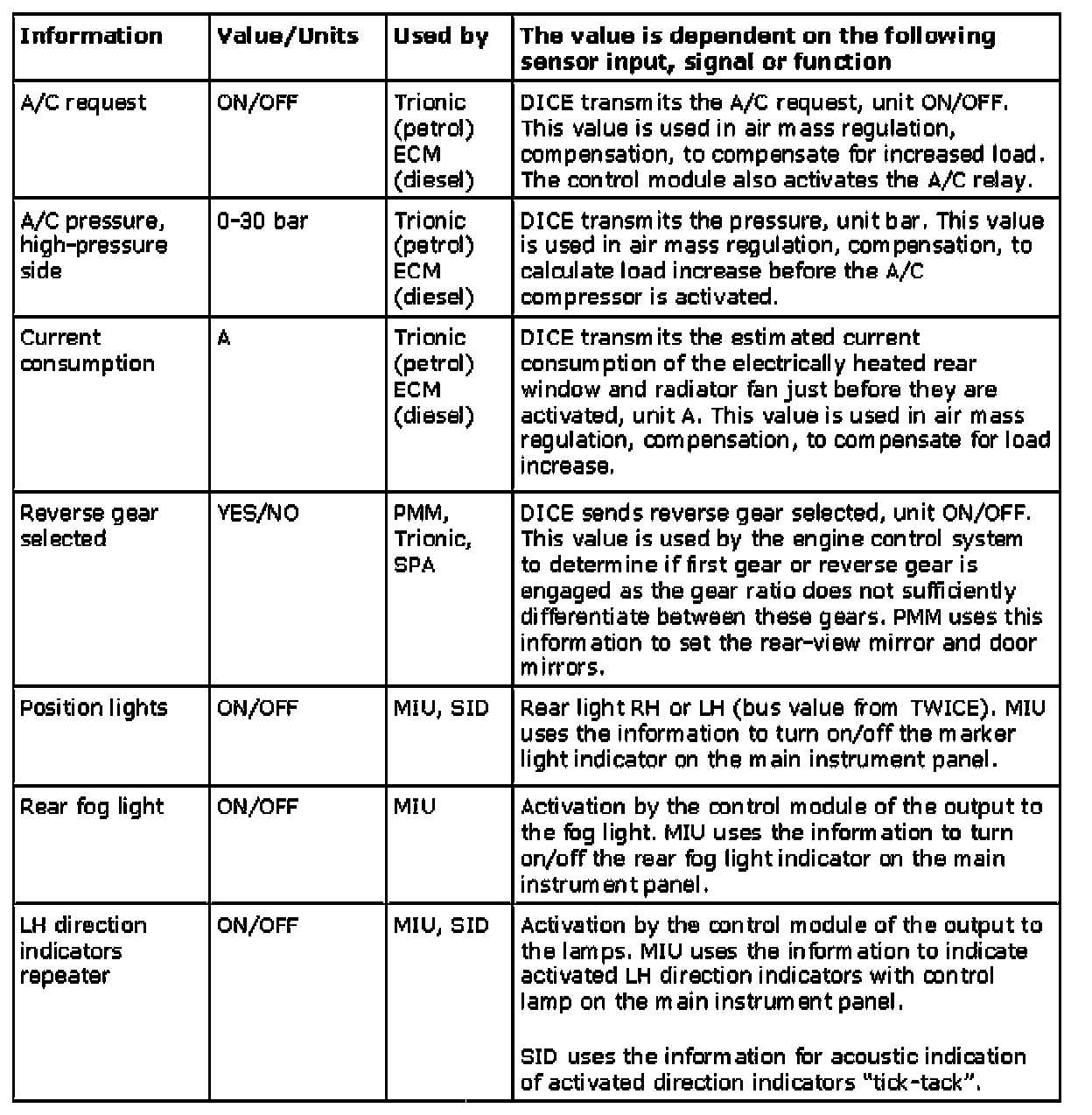

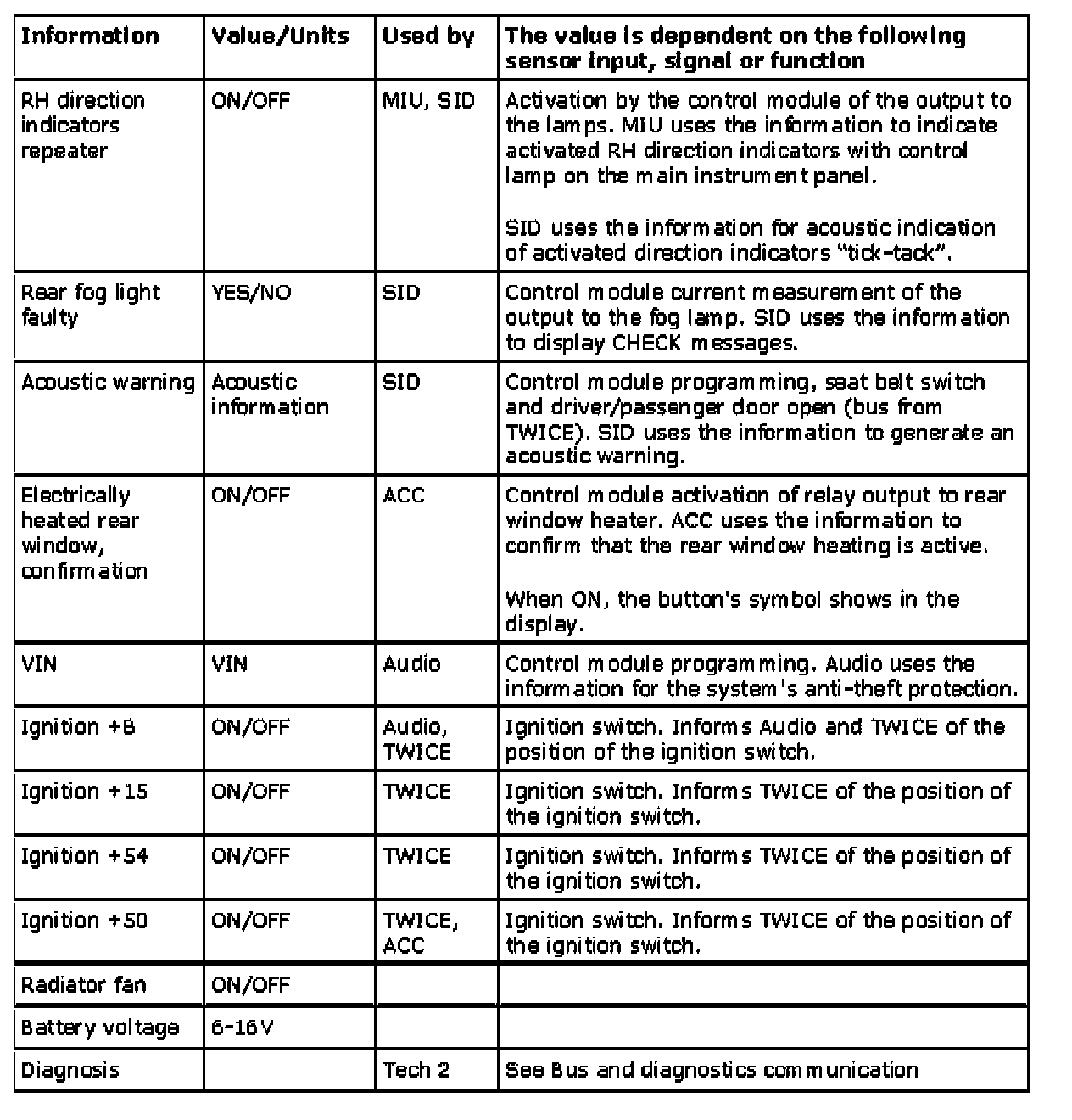

DICE Sends The Following Information

Part 1:




Part 2:
