Leak Detection Solenoid: Service and Repair

EVAP Shut-off Control Valve (588)

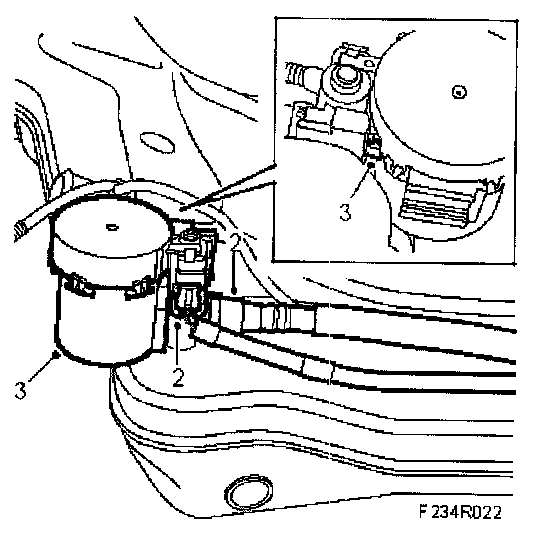

To remove

1. Remove Fuel tank.


2. Unplug the connector and undo the quick coupling on the cut-off valve.





3. Bend aside the catch arid remove the cut-off valve.

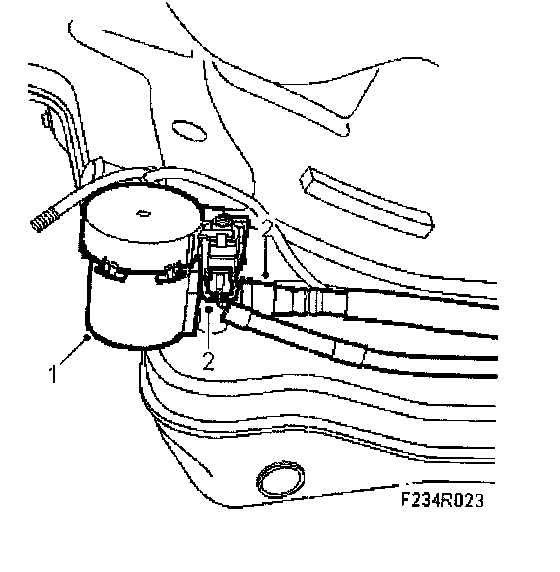

To fit

1. Fit the cut-off valve.





2. Plug in the connector and quick coupling to the cut-off valve.


3. Fit Fuel tank.
