Electric Opening of Tailgate

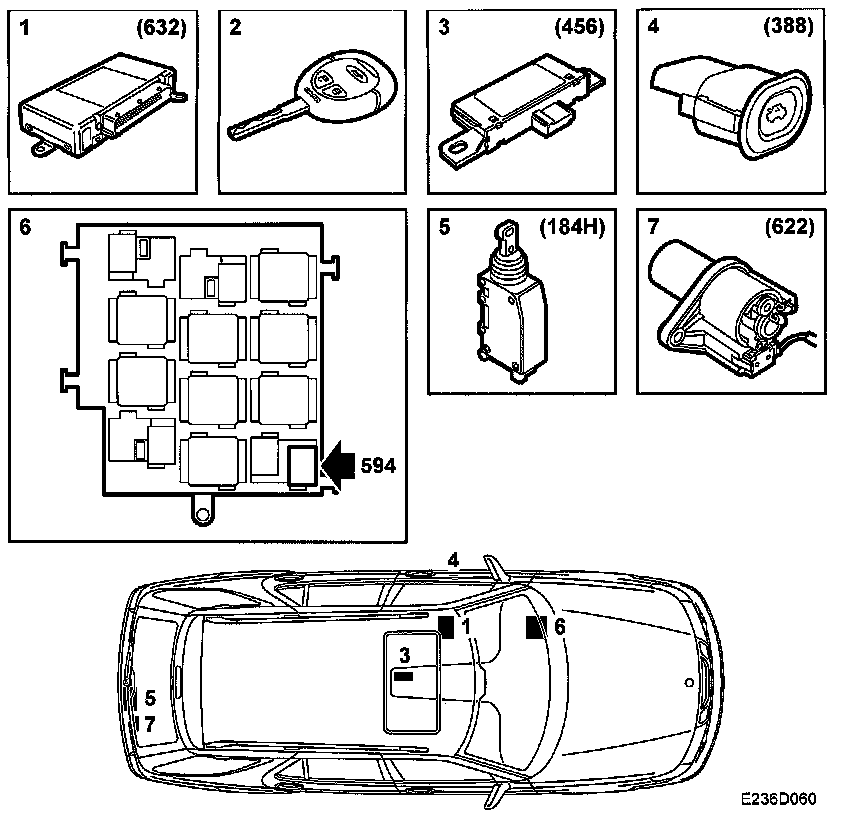

Main Components, Electric Opening Of Tailgate (5D)







1. Control module, TWICE (632)
2. Car key
3. Antenna, remote control, central locking system (456)
4. Switch, tailgate (388)
5. Motor, central locking system, tailgate (184H)
6. Relay, tailgate (594)
7. Microswitch, tailgate lock (622)
