Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-5 (9600) L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Passenger Presence System
Passenger Presence System

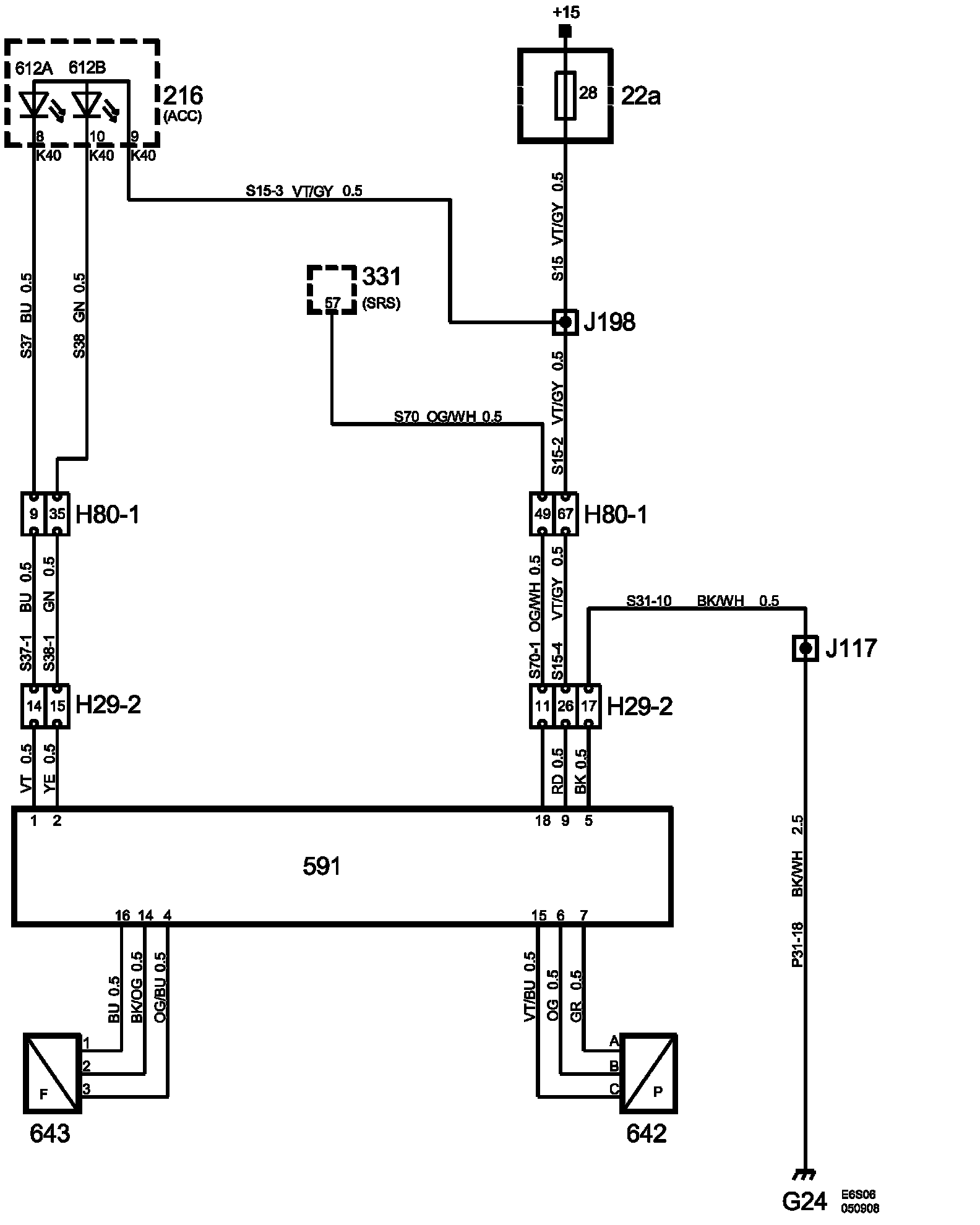

Passenger Presence System:

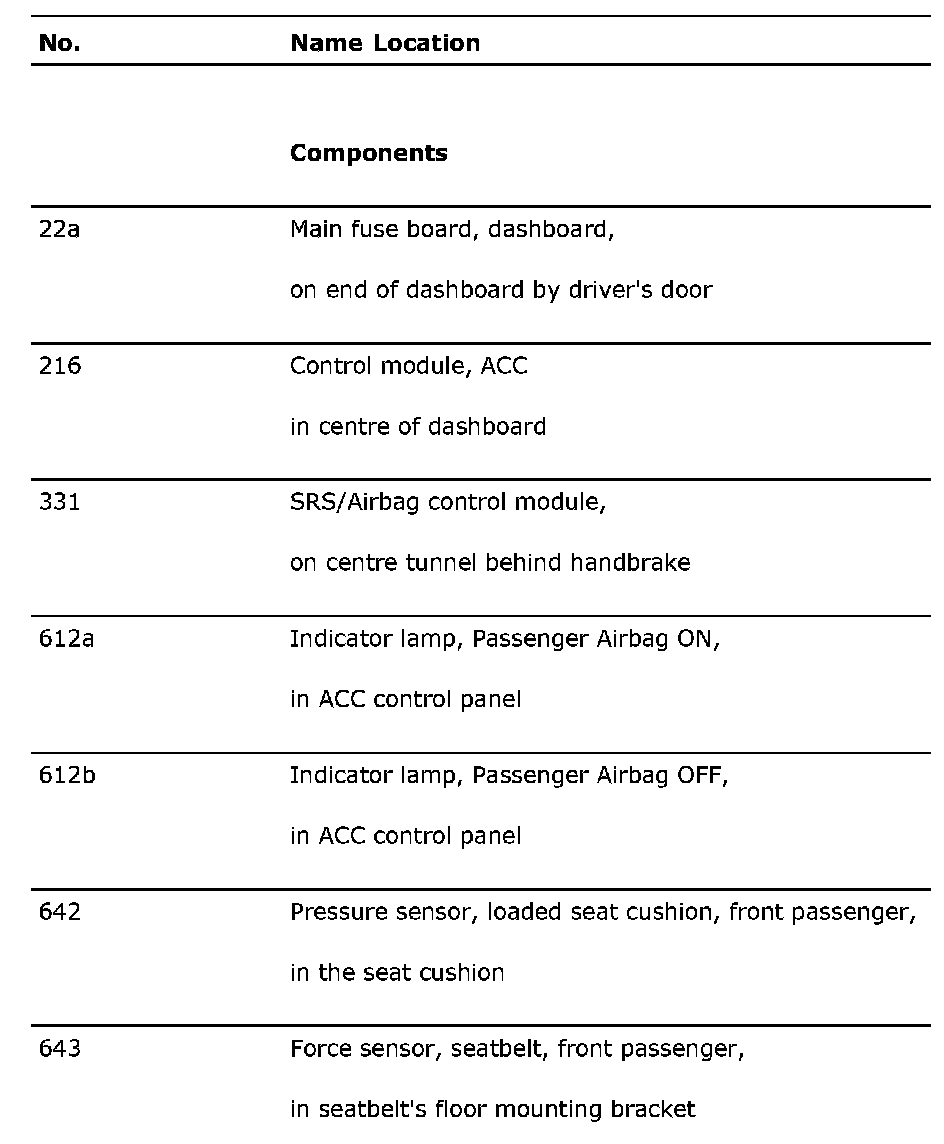

Component List (Part 1):

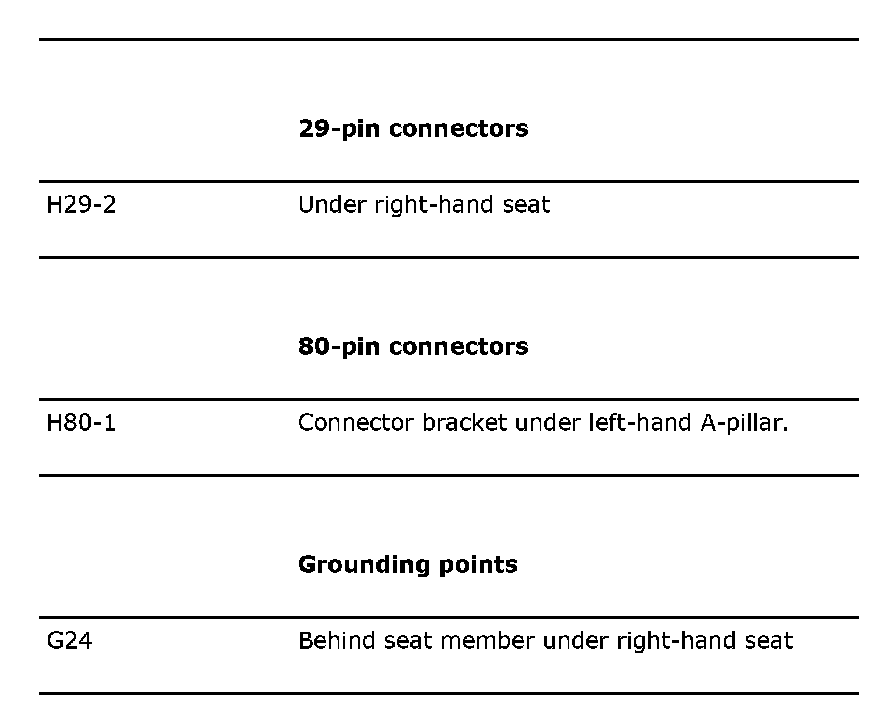

Component List (Part 2):
