Air Door Actuator / Motor, HVAC
>>
DC Motor, Air Recirculation Flap (38)
DC Motor, Air Recirculation Flap (38)

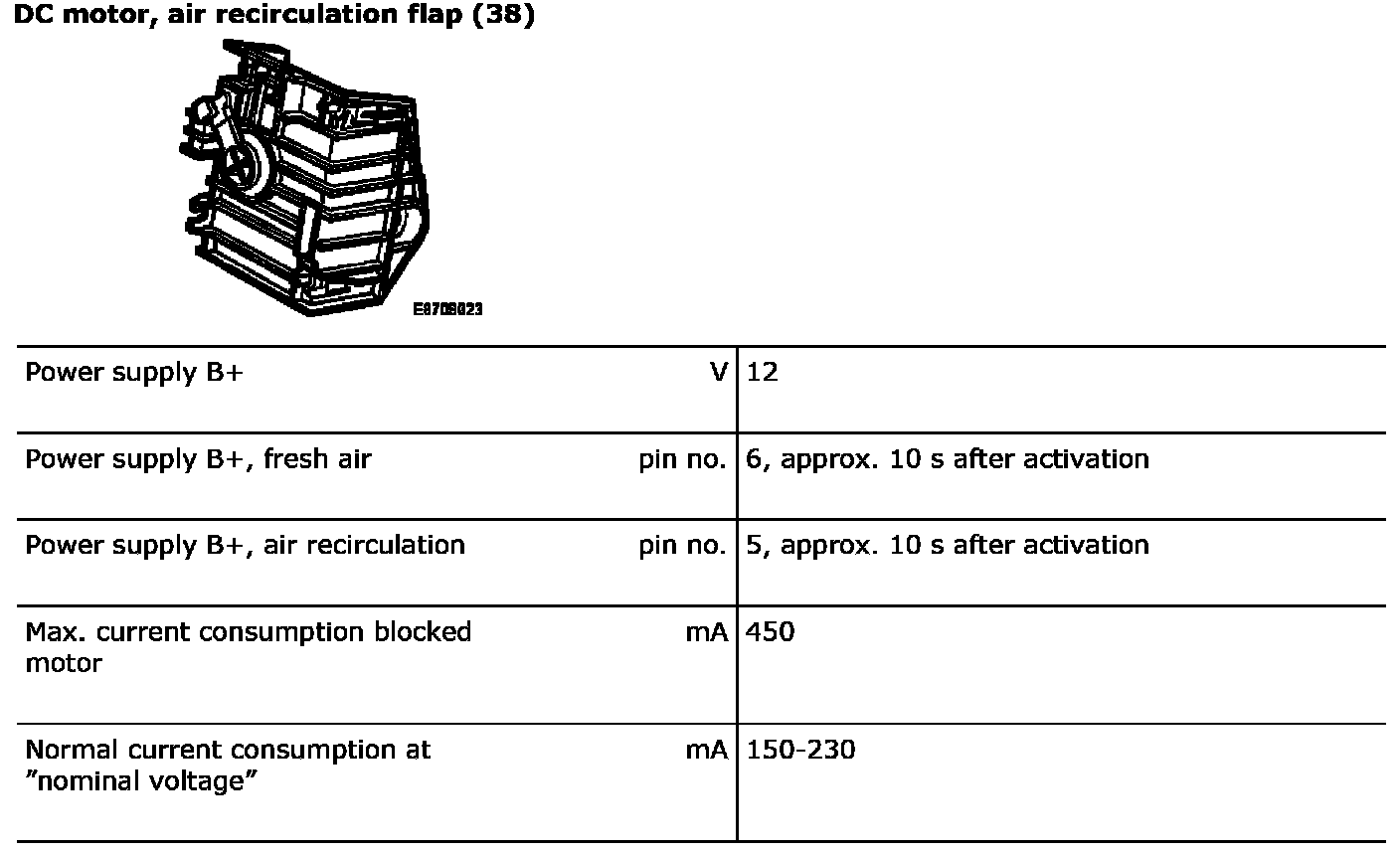

DC Motor, Air Recirculation Flap (38):
