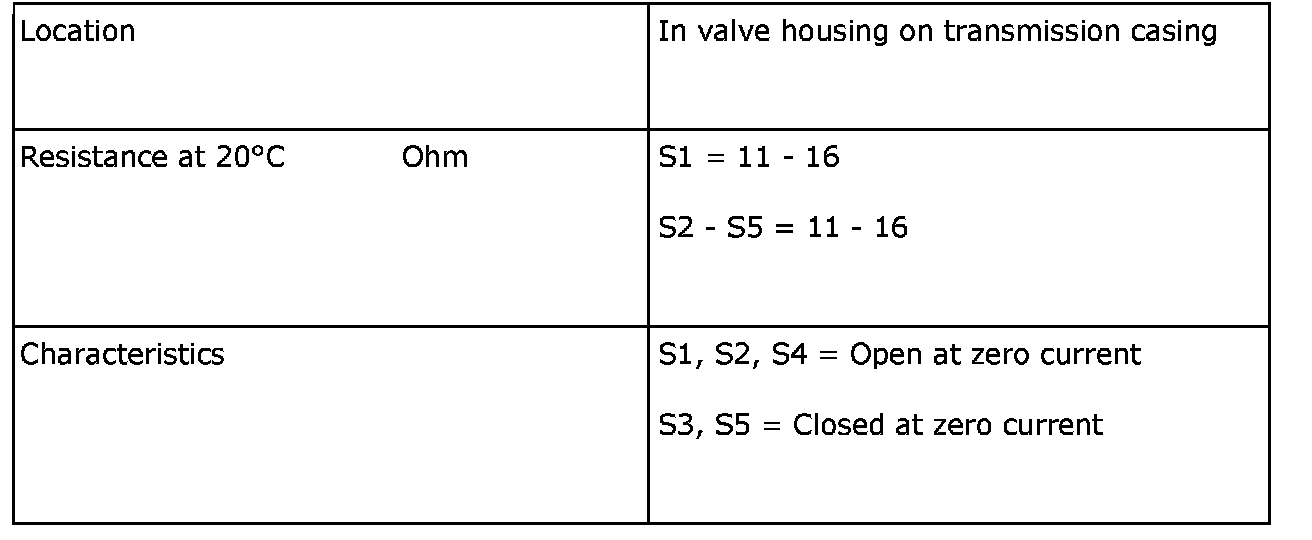

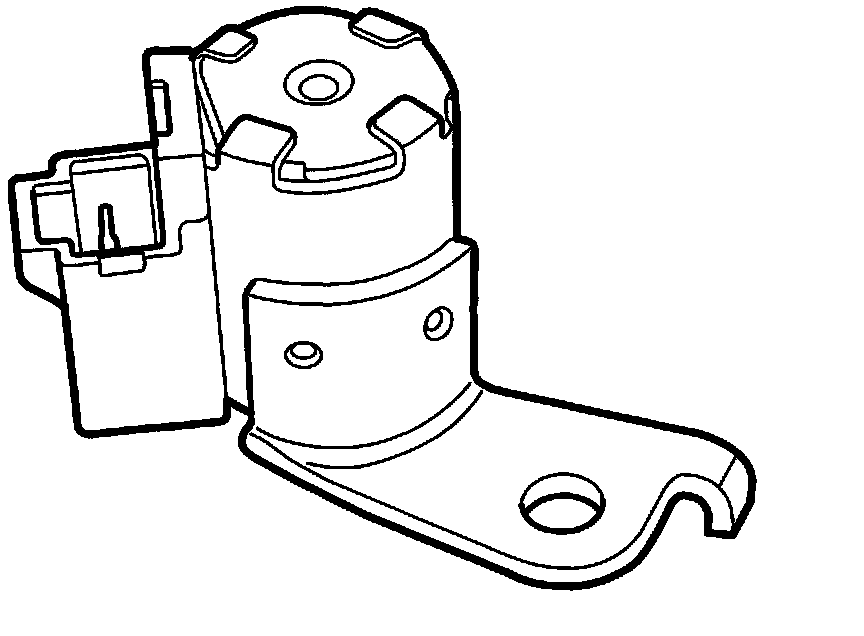

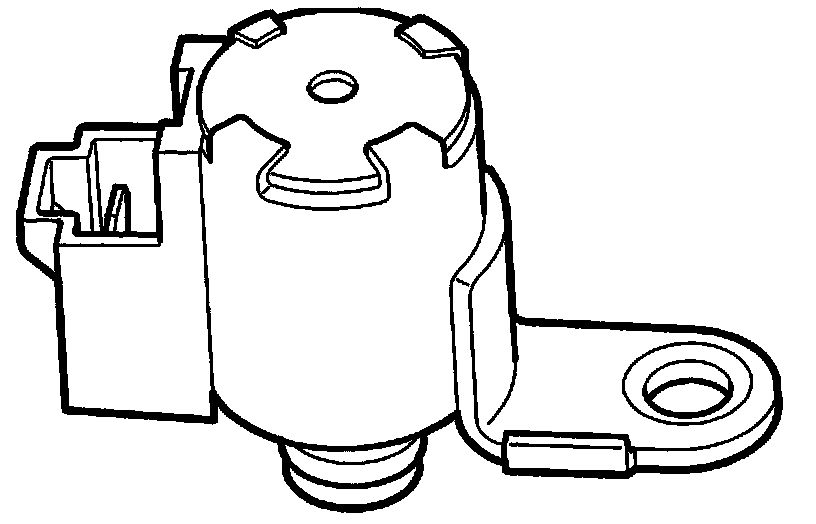

Gearshift Solenoid Valve (S1, S2, S3, S4 and S5)
Gearshift Solenoid Valve (S1, S2, S3, S4 and S5)
Gearshift Solenoid Valve (S1, S2, S3, S4 and S5)

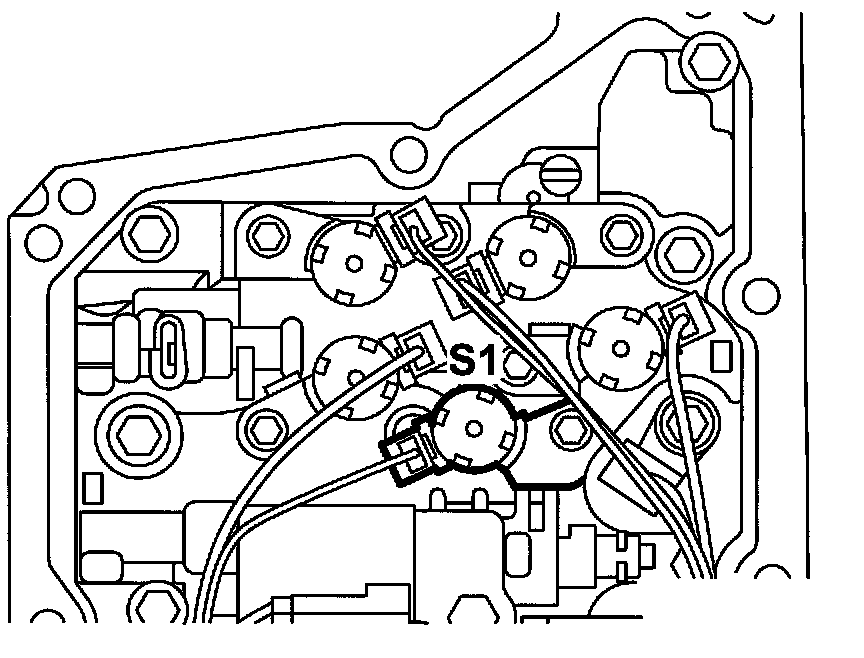

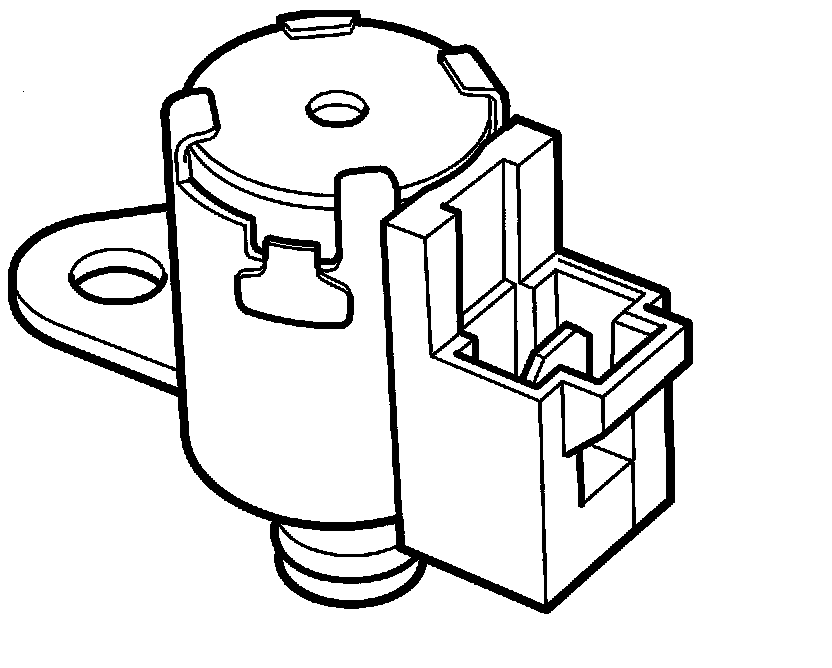

S1
S1

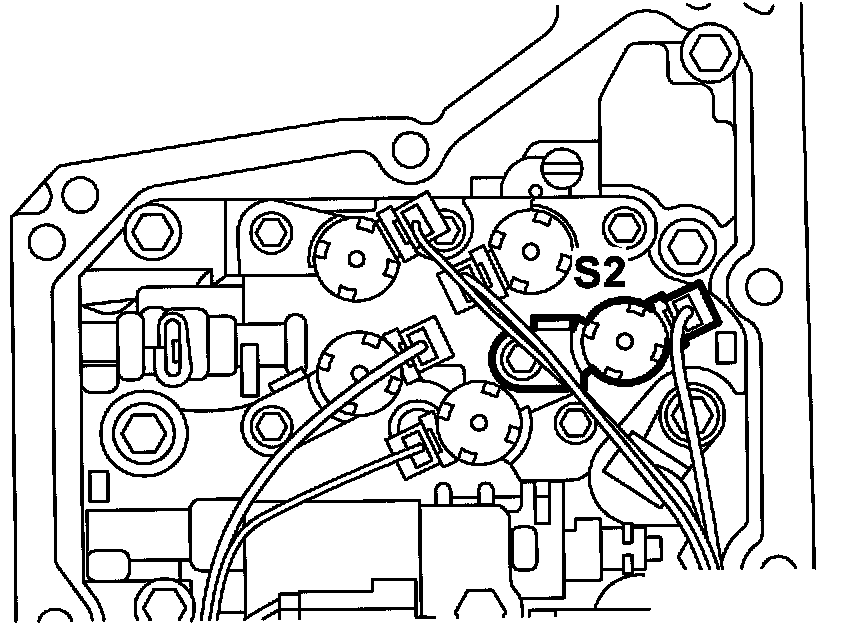

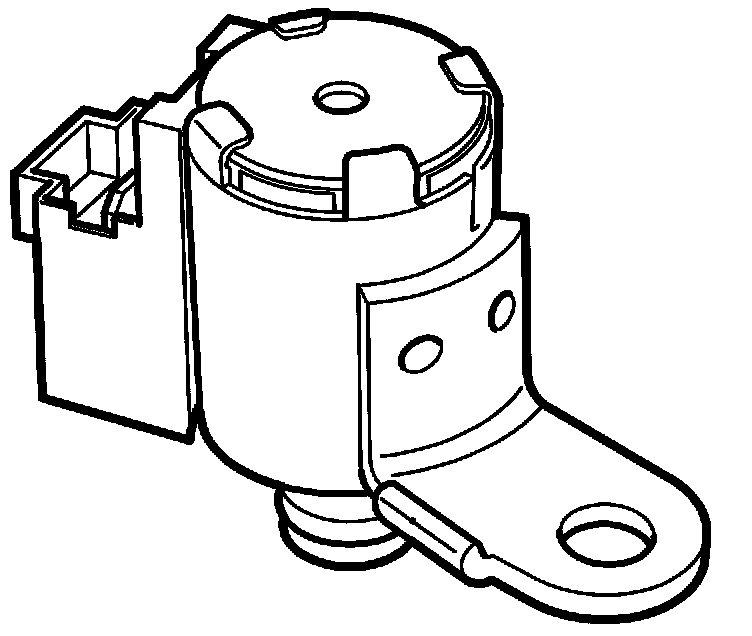

S2
S2

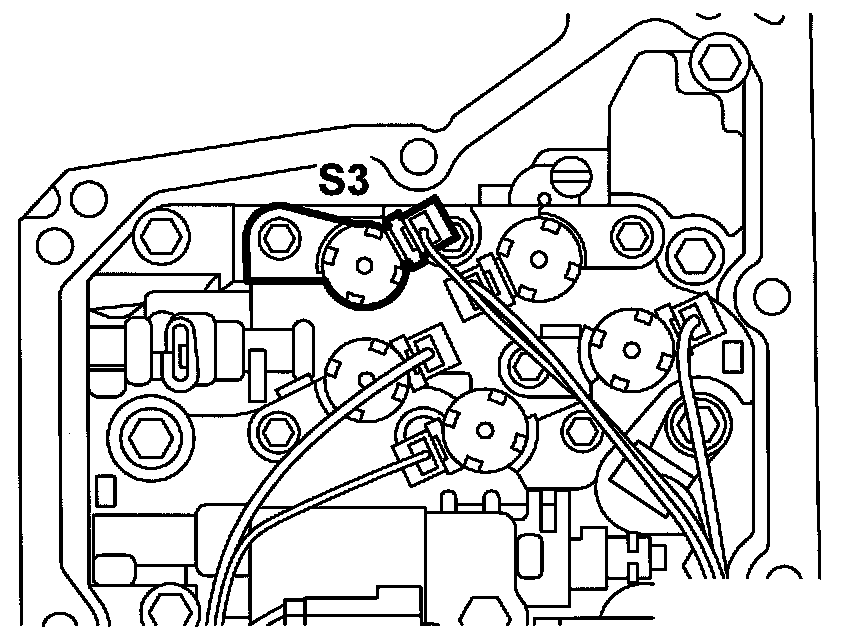

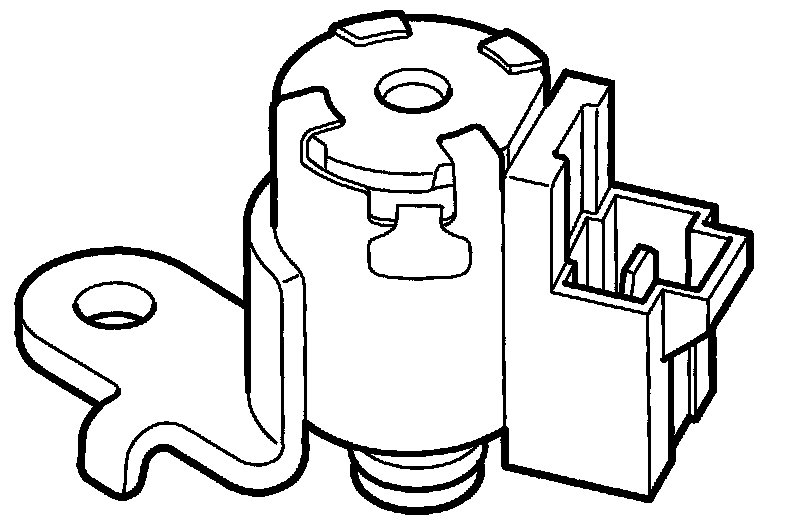

S3
S3

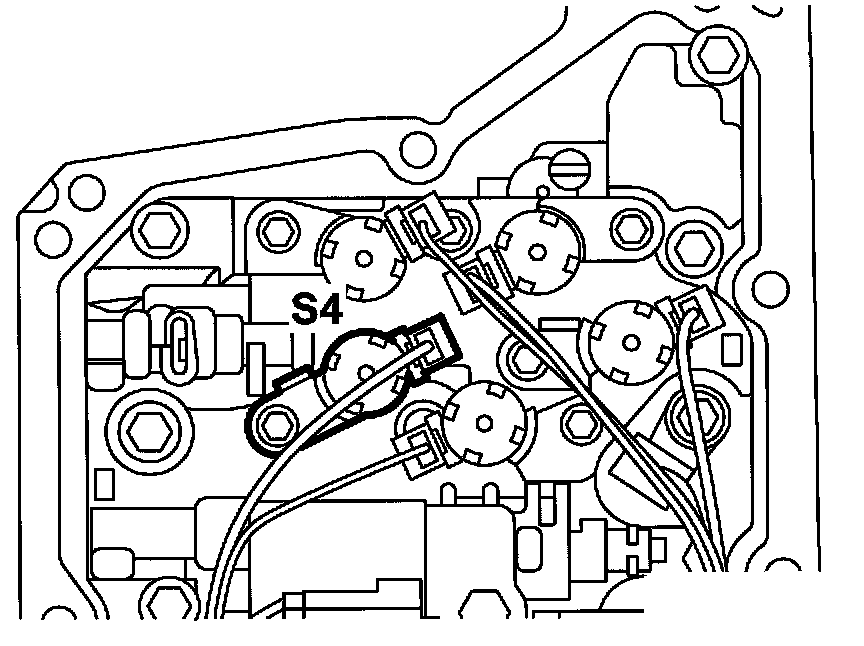

S4
S4

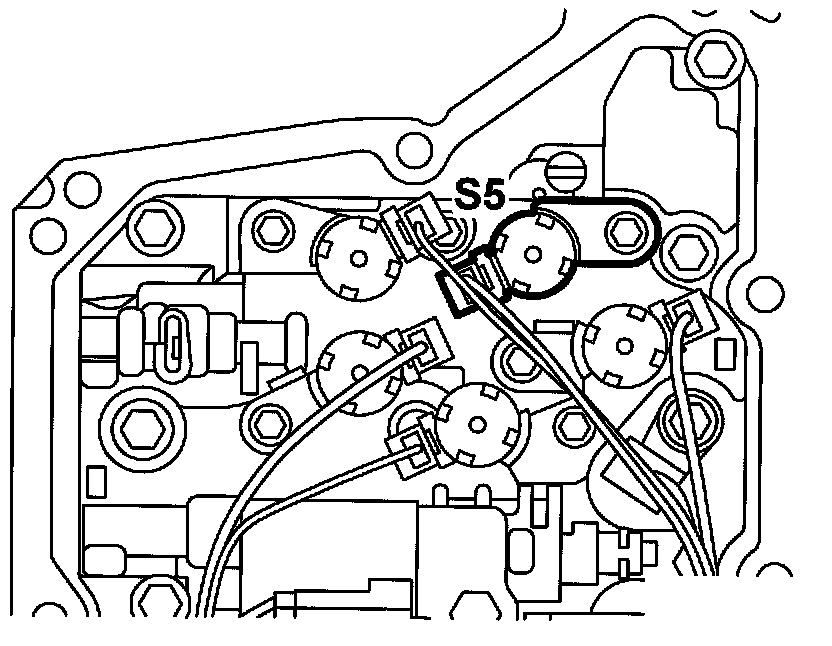

S5
S5
