Diesel Data: Automotive Repair
Home >> Saab >> 2008 >> 9-5 (9600) L4-2.3L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> System Specifications >> Design Specifications - Valve Gear >> Valve Gear

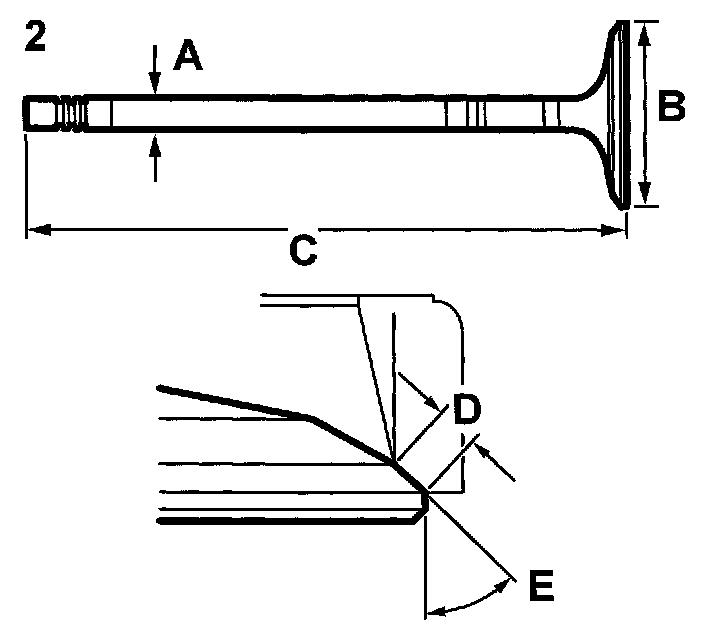

Valve Gear

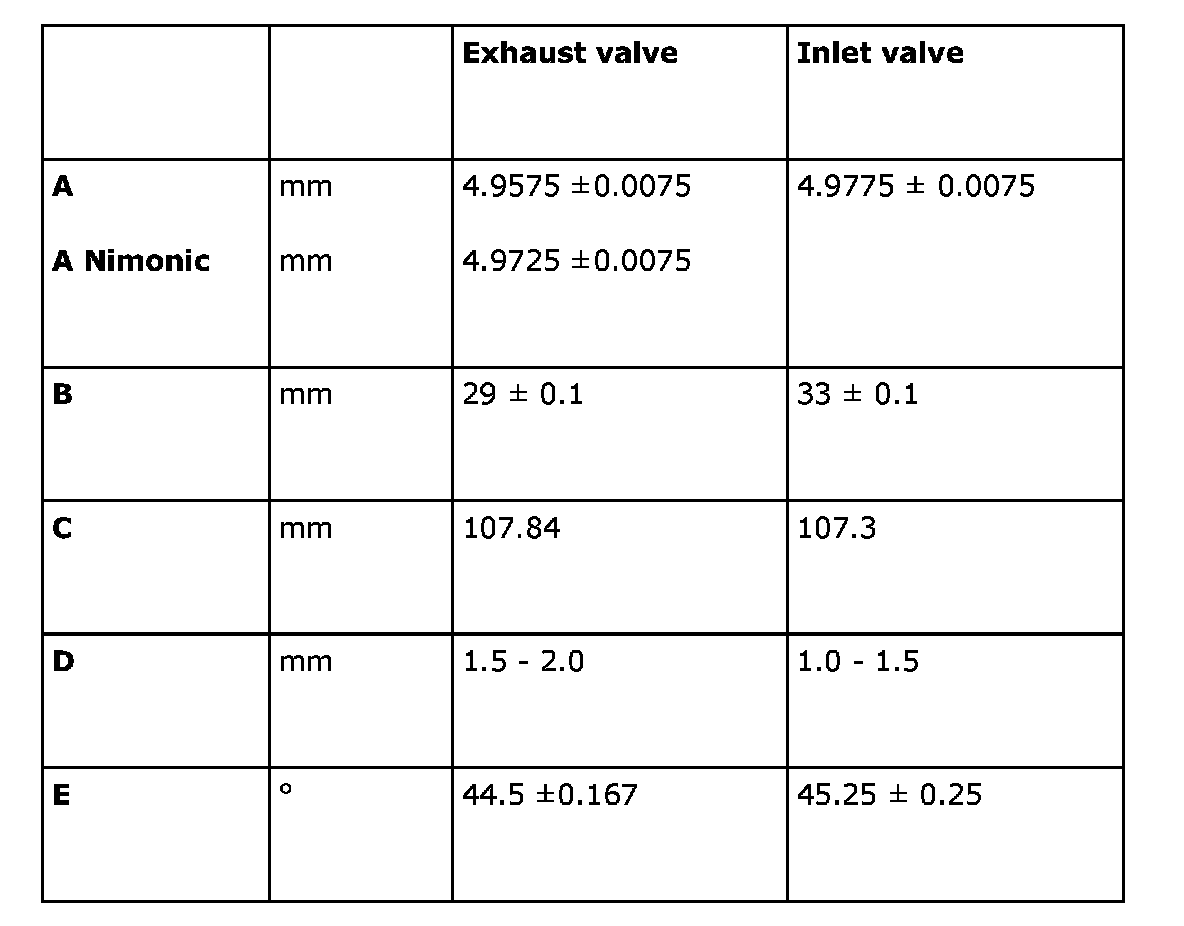

Index Of Specifications:



Inlet Valve:
