Grounding Point
>>
Locations
>>

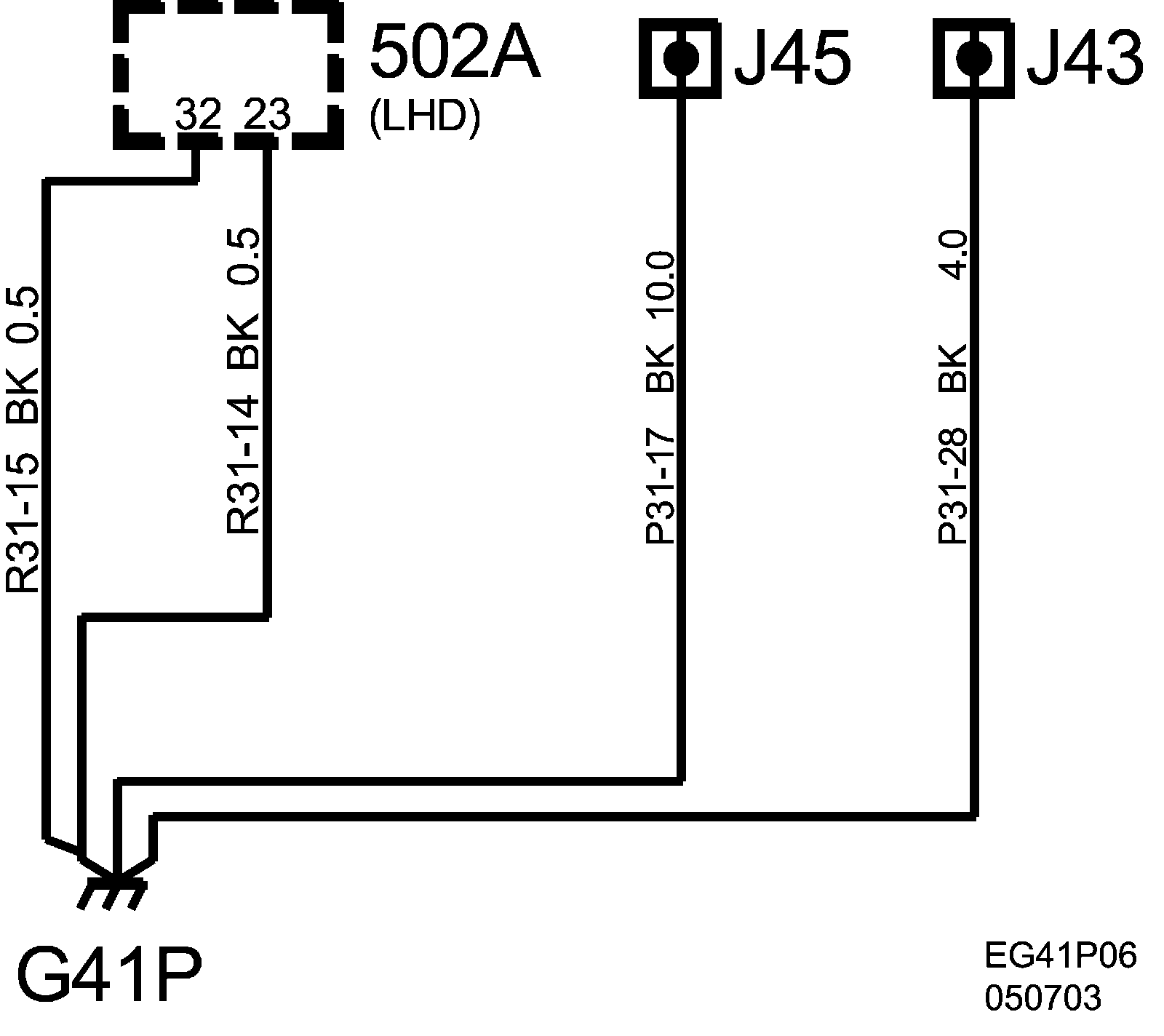

Grounding Point, G41P
Grounding Point, G41P

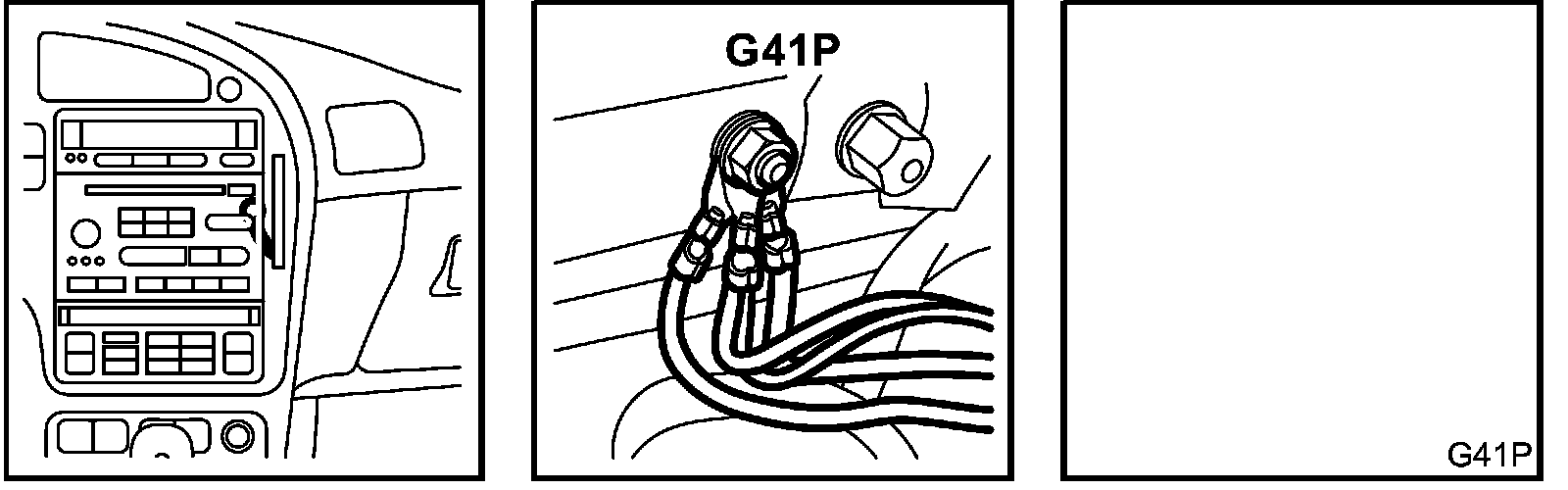

Grounding Point, G41P:
Location:
Left grounding screw on middle of knee member (in cabin)

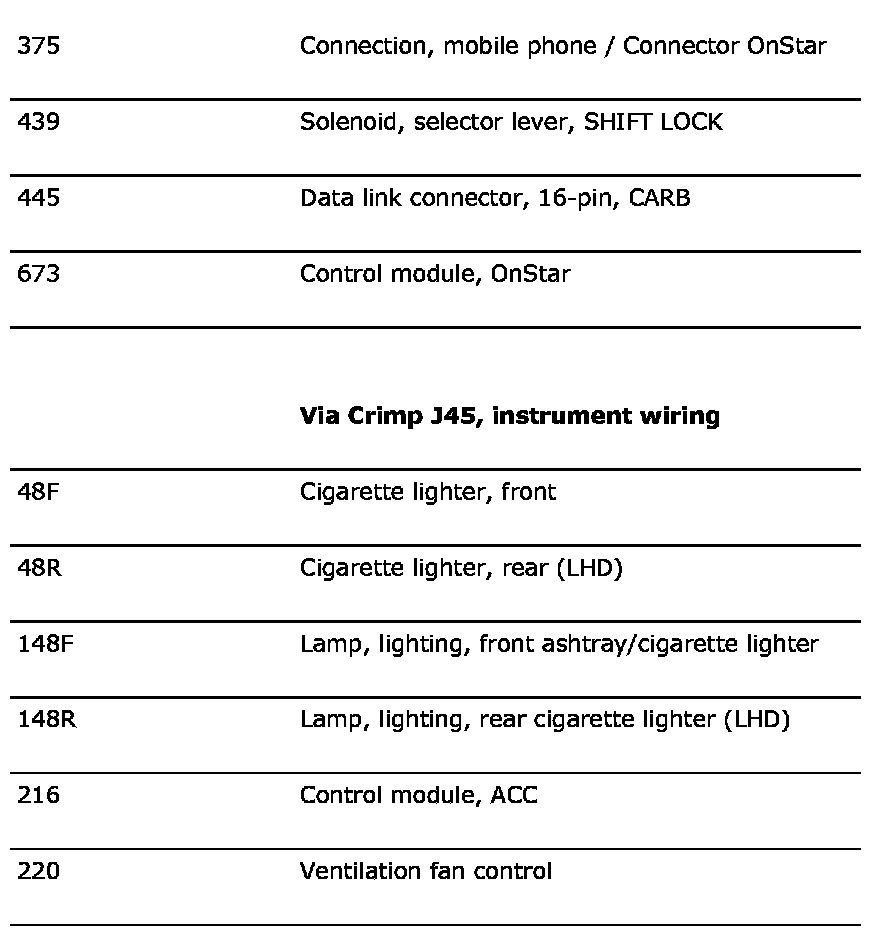

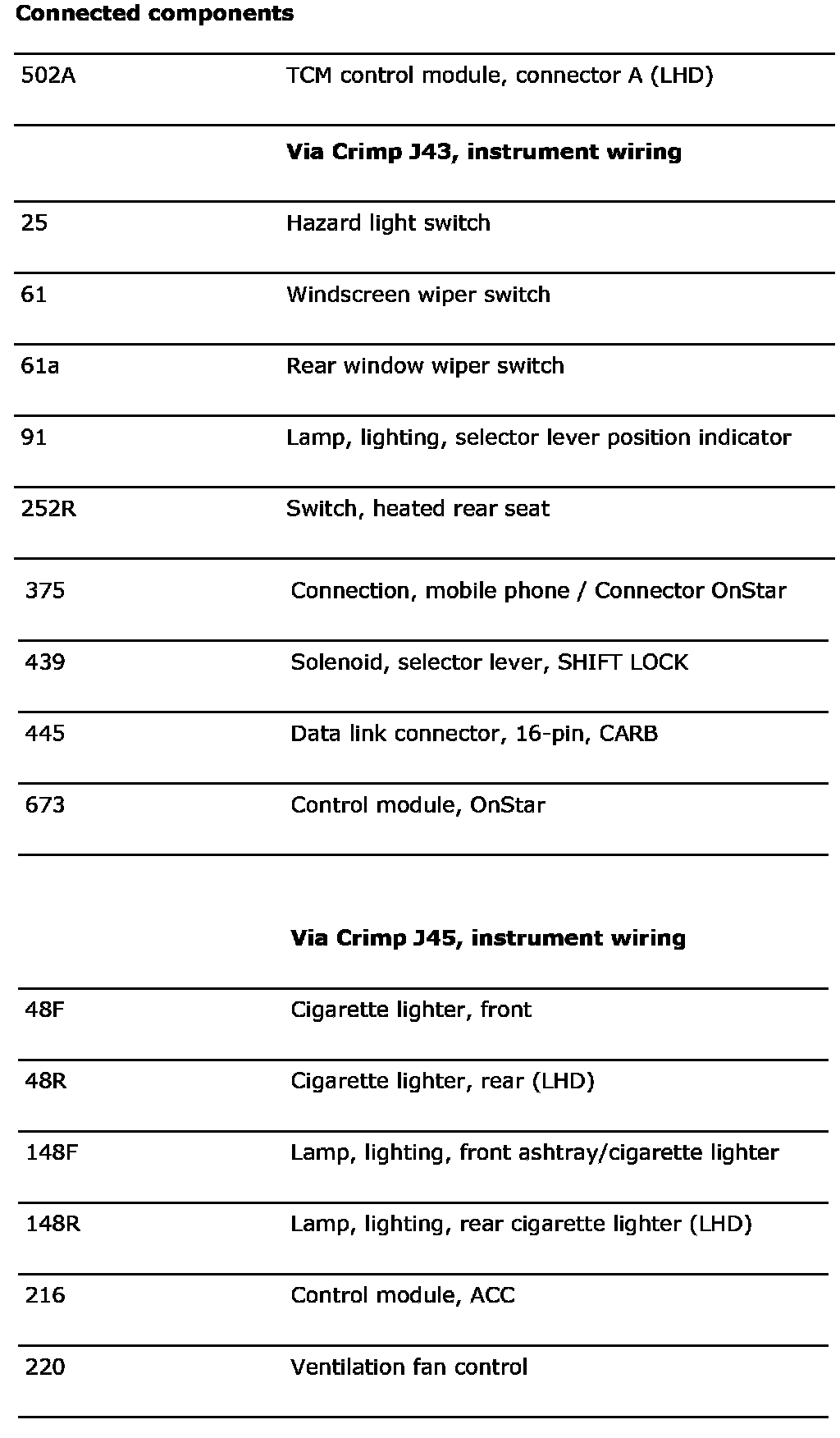

Connector Components (Part 2):
