Drive Shaft Seal, RH

Drive Shaft Seal, RH

Replacement In Car





To Remove
1. Remove the intermediate shaft.

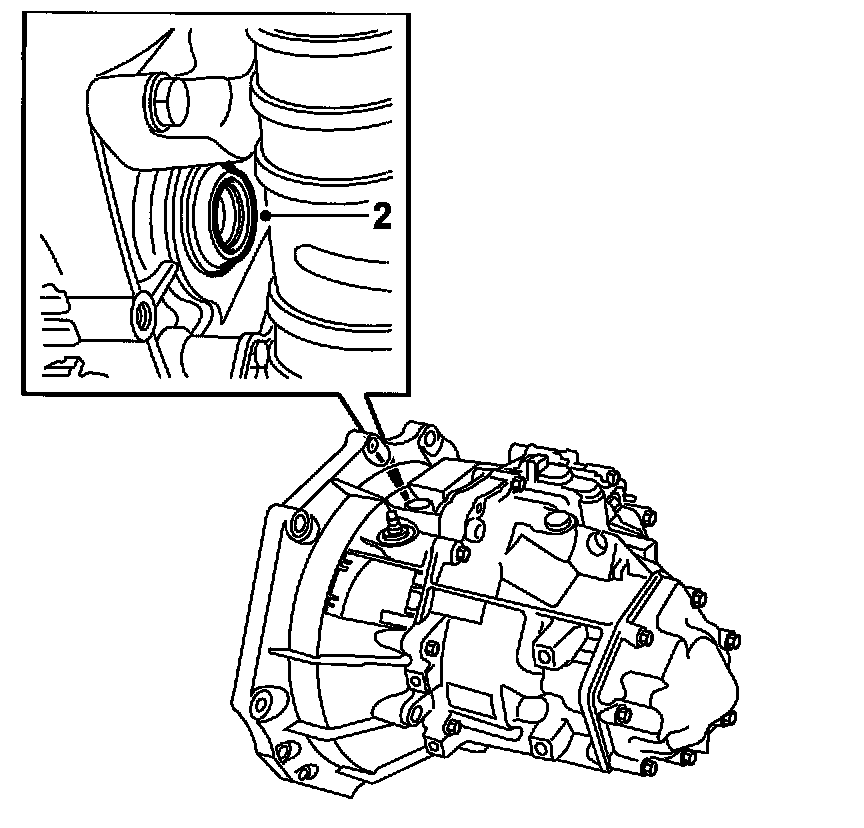

2. Remove the seal using a large screwdriver.

NOTE: Take care not to scratch the drive shaft seal hole in the gearbox.

To Fit

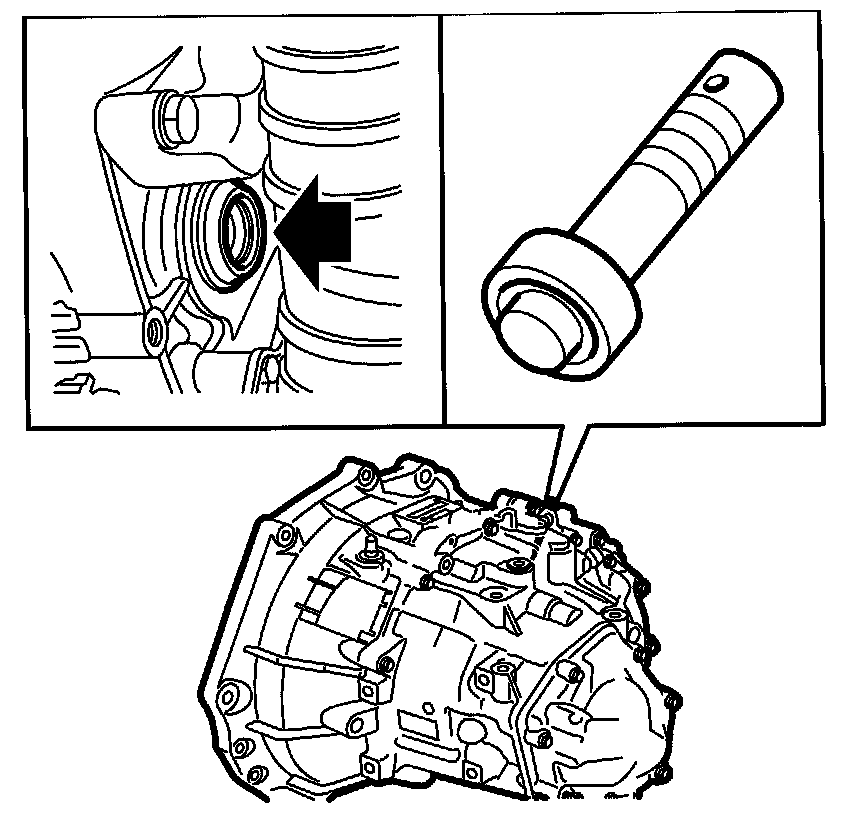

1. Tap in the new seal with drift 87 92 657.
2. Fit the intermediate shaft according to 4.
