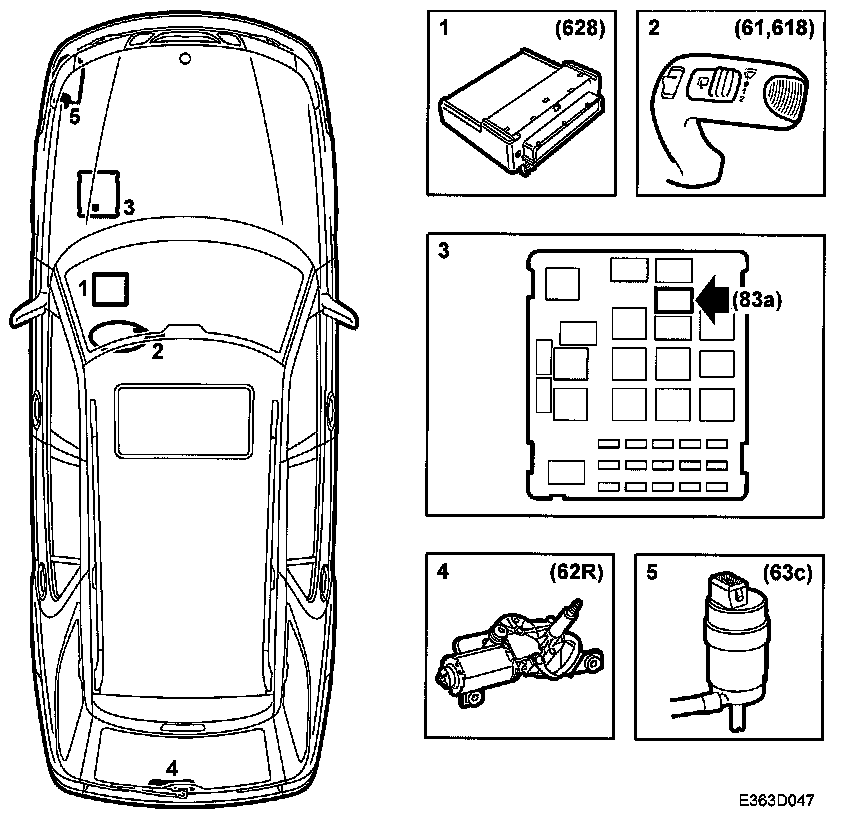

Main Components, Rear Window Wiper, (5D)

Main Components, Rear Window Wiper, (5D)







1. DICE (628)
2. Windscreen wiper switch (61a)
3. Relay, intermittent rear window wiper (83a)
4. Rear window wiper motor (62R)
5. Washer fluid pump, rear window (63c)
