Radio Antenna Cable Extension Cable Replacement

Radio Antenna Cable Extension Cable Replacement

Removal Procedure

1. Remove the inflatable restraint instrument panel (I/P) module. Refer to Inflatable Restraint Instrument Panel Module Replacement (Inflatable Restraint Instrument Panel Module Replacement).

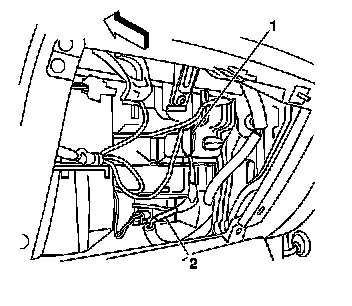

2. Disconnect the antenna cable (2) from the radio extension cable.





Important: Note the location of the radio extension cable before removal.

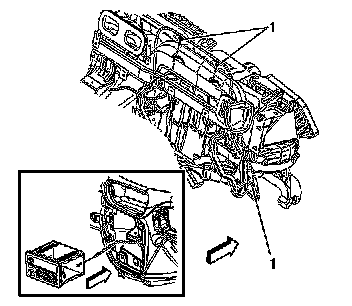

3. Remove the cable attachments (1) from the I/P support bars.
4. Reach through the I/P compartment to disconnect the antenna cable from the radio.
5. Remove the radio extension cable from the vehicle.

Installation Procedure




1. Position the radio extension cable to the I/P support bars as previously noted.
2. Reach through the I/P compartment to connect the antenna cable to the radio.
3. Install the radio extension cable attachments (1) to the I/P support bars.




4. Connect the antenna cable (2) to the radio extension cable.
5. Install the inflatable restraint module. Refer to Inflatable Restraint Instrument Panel Module Replacement (Inflatable Restraint Instrument Panel Module Replacement).
