Radio Front Side Door Speaker Replacement

Radio Front Side Door Speaker Replacement

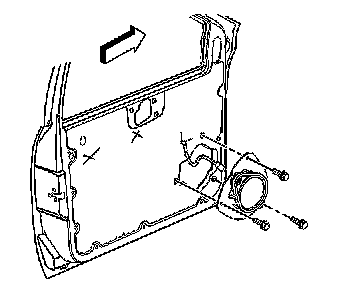

Removal Procedure

1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Front Side Door Trim Panel Replacement).




2. Disconnect the speaker electrical connector.
3. Remove the 3 speaker retaining bolts.
4. Remove the speaker from the door.

Installation Procedure




1. Install the speaker to the door.

Notice: Refer to Fastener Notice.

2. Install the 3 speaker retaining bolts.

Tighten the bolts to 2 Nm (18 in. lbs.).

3. Connect the speaker electrical connector.
4. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Front Side Door Trim Panel Replacement).
