Radio Rear Side Door Speaker Replacement

Radio Rear Side Door Speaker Replacement

Removal Procedure

1. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement (Rear Side Door Trim Panel Replacement).
2. Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement (Rear Side Door Water Deflector Replacement).

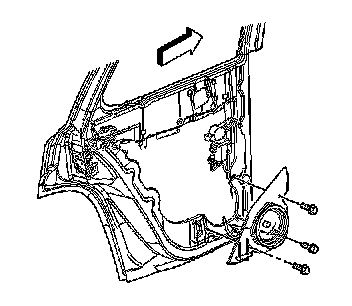

3. Disconnect the speaker electrical connector.
4. Remove the 3 speaker retaining bolts.
5. Remove the speaker from the door.

Installation Procedure




1. Install the speaker to the door.

Notice: Refer to Fastener Notice.

2. Install the 3 speaker retaining bolts.

Tighten the bolts to 2 Nm (18 in. lbs.).

3. Connect the speaker electrical connector.
4. Install the water deflector. Refer to Rear Side Door Water Deflector Replacement (Rear Side Door Water Deflector Replacement).
5. Install the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement (Rear Side Door Trim Panel Replacement).
