Rear Bumper Reinforcement: Service and Repair

Rear Bumper Impact Bar Replacement


Removal Procedure

1.Remove the spare tire carrier. Refer to Spare Wheel Hoist Replacement .

2.Remove the rear fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement .





3.Disconnect the trailer/towing receptacle electrical connector.

4.Rotate the trailer/towing receptacle assembly counterclockwise and remove from the vehicle.

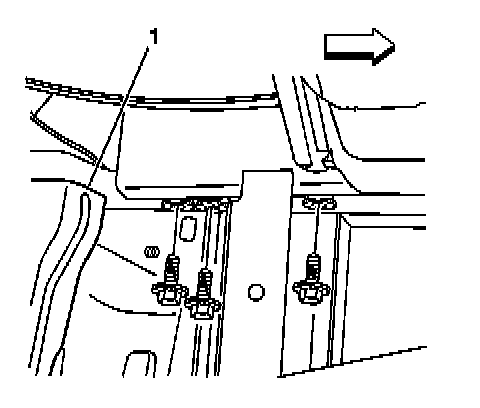

5.Remove the 4 rearward bolts that retain the impact bar assembly to the frame rails.

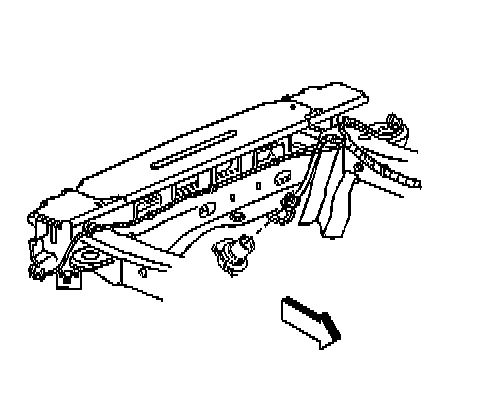

6.While an assistant holds the impact bar (1) assembly in place, remove the remaining 2 retaining bolts.

7.Remove the impact bar (1) assembly from the vehicle with an assistant.

Installation Procedure





1.Position the impact bar (1) assembly to the vehicle with an assistant.

Notice:Refer to Fastener Notice .

2.Install the bolts that retain the rear impact bar to the frame.

TightenTighten the rear impact bar bolts to 364 N �m (268 lb ft).





3.Install the trailer/towing receptacle assembly to the bracket and rotate clockwise until fully seated.

4.Connect the trailer/towing receptacle electrical connector.

5.Install the rear fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement .

6.Install the spare tire carrier. Refer to Spare Wheel Hoist Replacement .
