Drink Holders: Service and Repair

Instrument Panel Cup Holder Replacement

Removal Procedure

1. Remove the instrument panel (I/P) accessory trim panel. Refer to Instrument Panel Accessory Trim Plate Replacement (Instrument Panel Accessory Trim Plate Replacement).

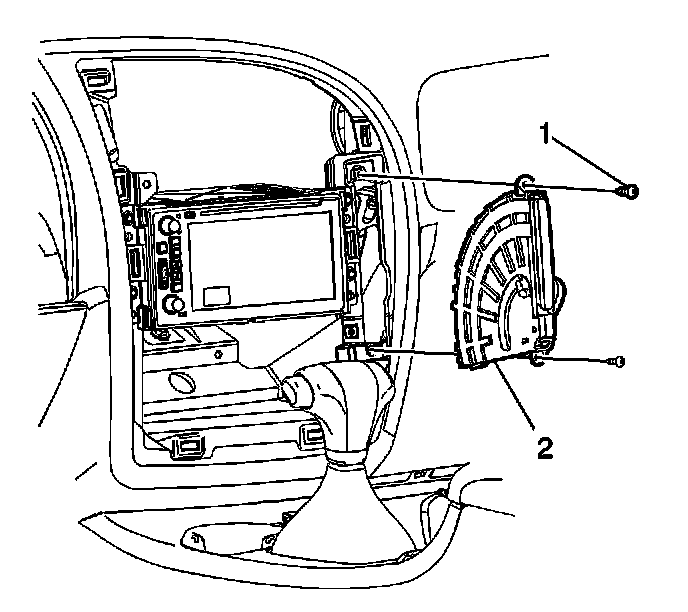

2. Remove the screws (1) securing the cupholder (2) to the I/P.

Installation Procedure




1. Locate the cupholder (2) to the I/P.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the screws (1) securing the cupholder to the I/P.

Tighten the screws to 2 Nm (18 in. lbs.).

3. Install the I/P accessory trim panel. Refer to Instrument Panel Accessory Trim Plate Replacement (Instrument Panel Accessory Trim Plate Replacement).
