Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-7X L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

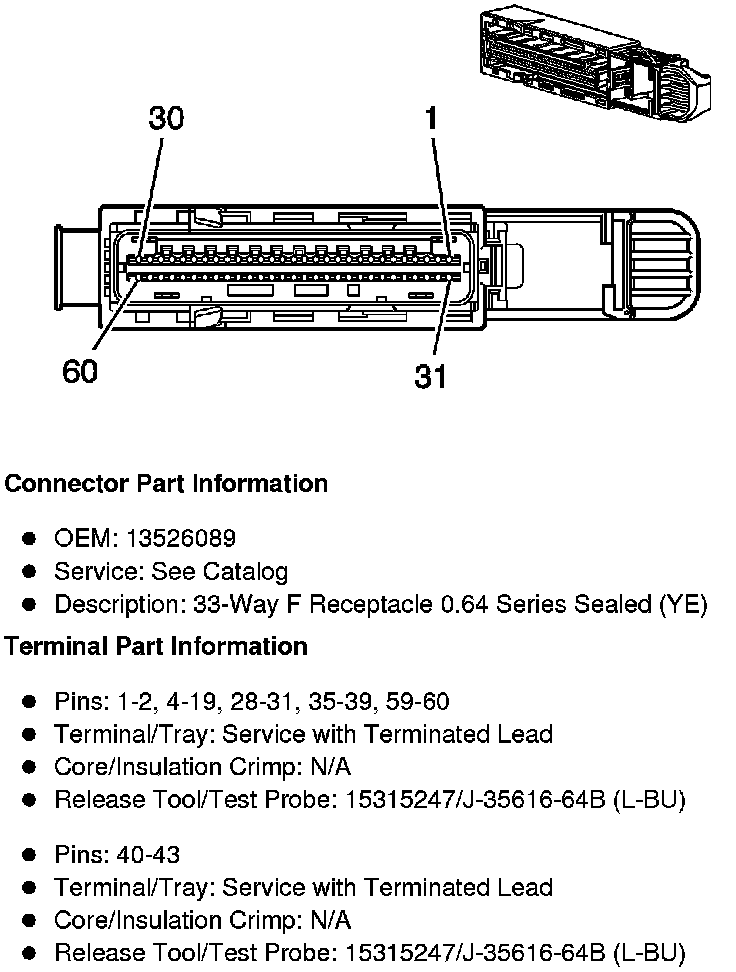

Component Connector End Views

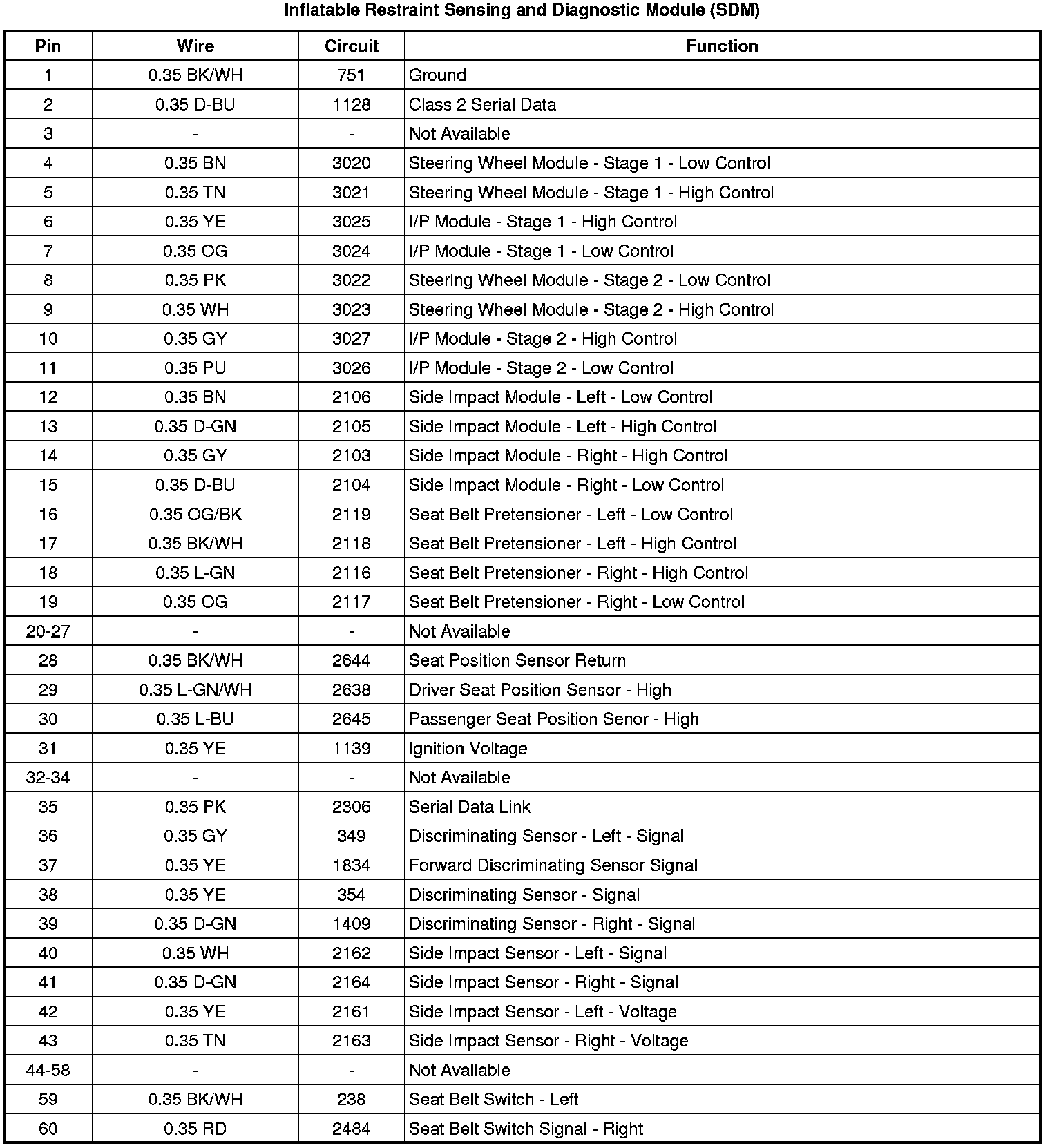

Inflatable Restraint Sensing and Diagnostic Module (SDM)
