Transmission Position Sensor/Switch, A/T

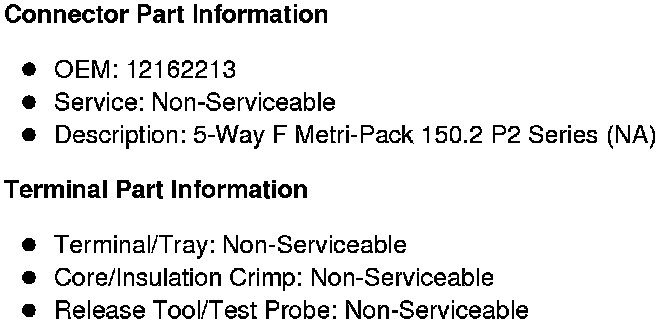

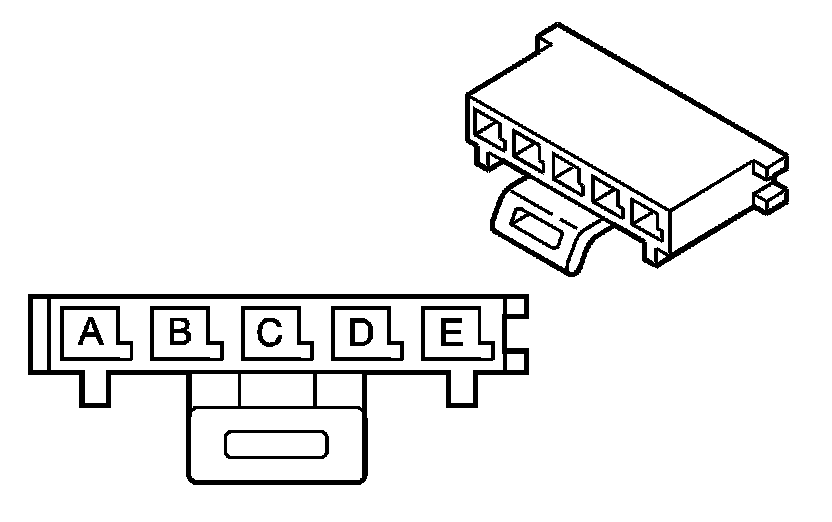

Component Connector End Views

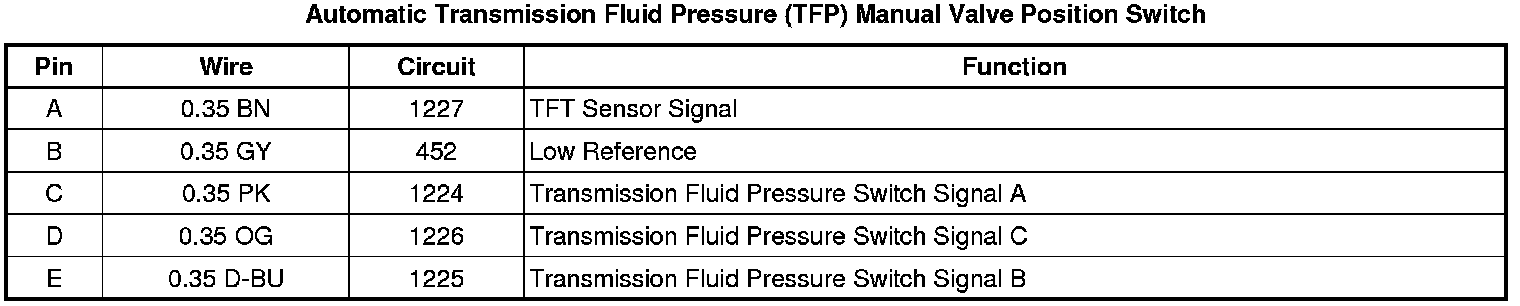

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
