Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
Transmission Speed Sensor, A/T
Automatic Transmission Internal Connector End Views

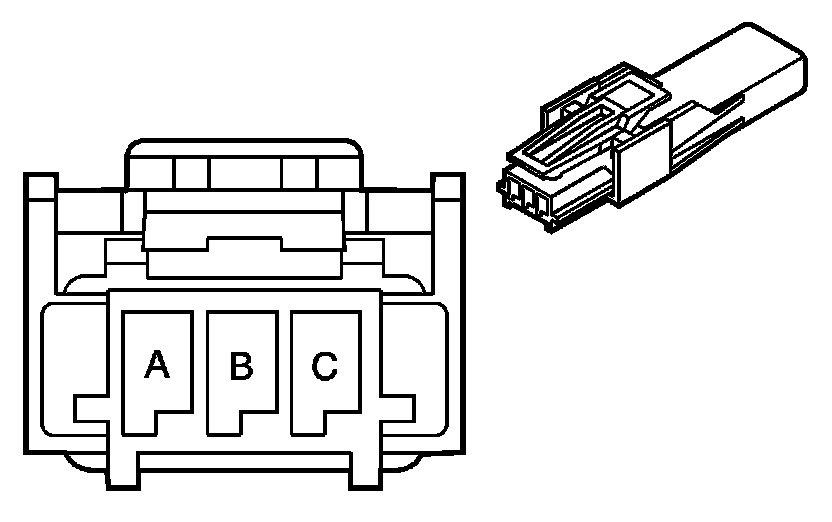

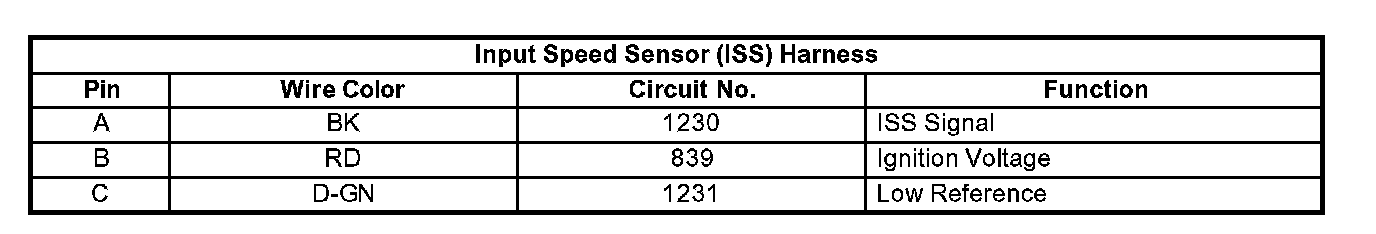

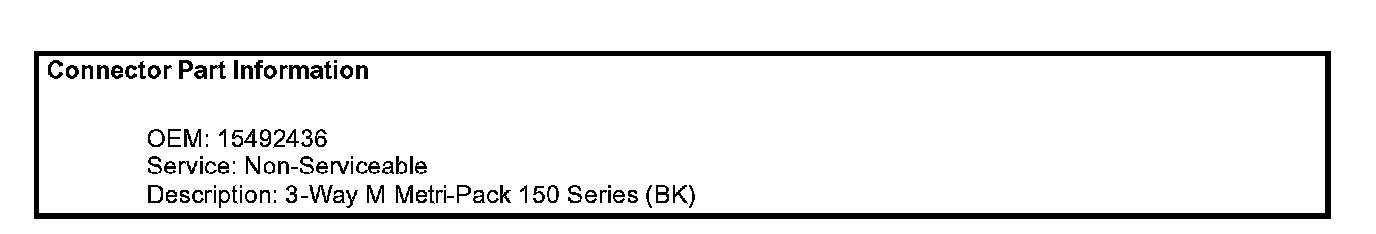

Input Speed Sensor (ISS) Harness
Input Speed Sensor (ISS) Harness:
