Vehicle Communication Interface Module (VCIM) (UE1)



Component Connector End Views - Continued

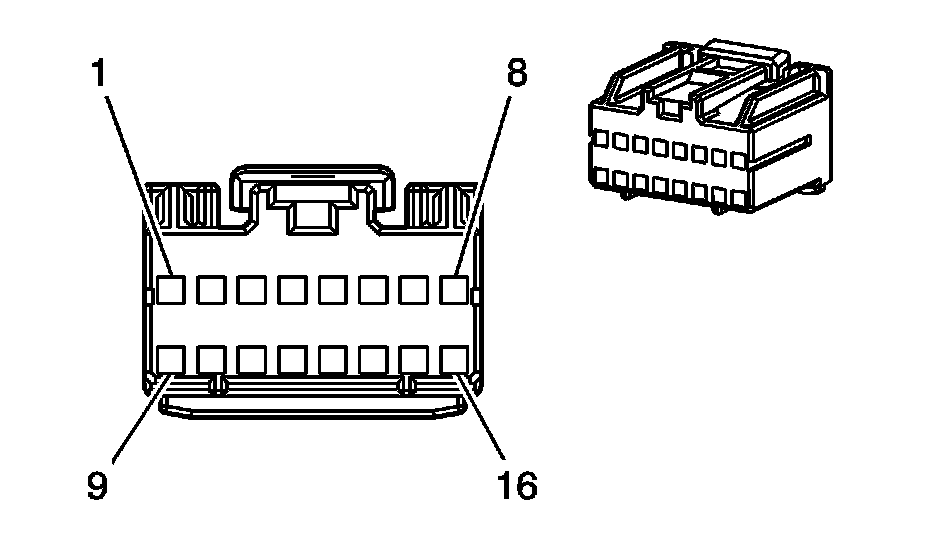

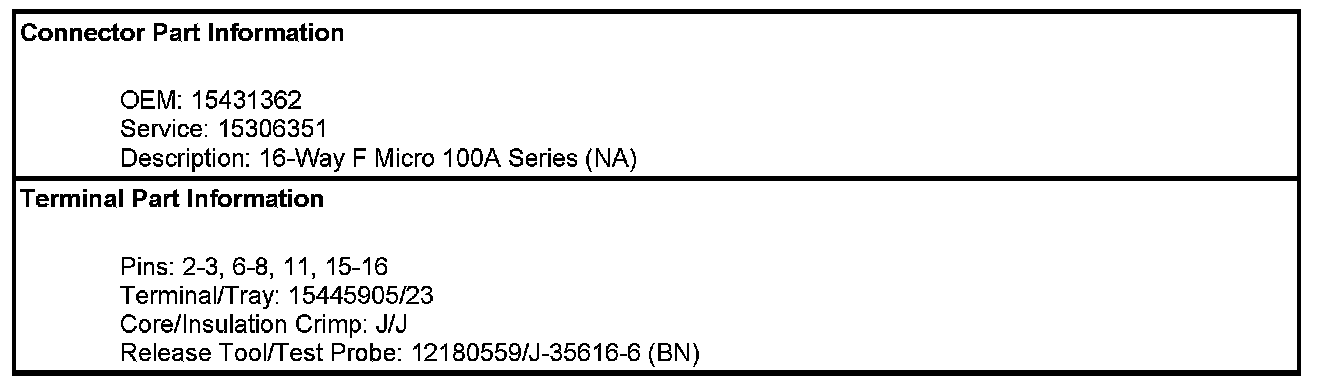

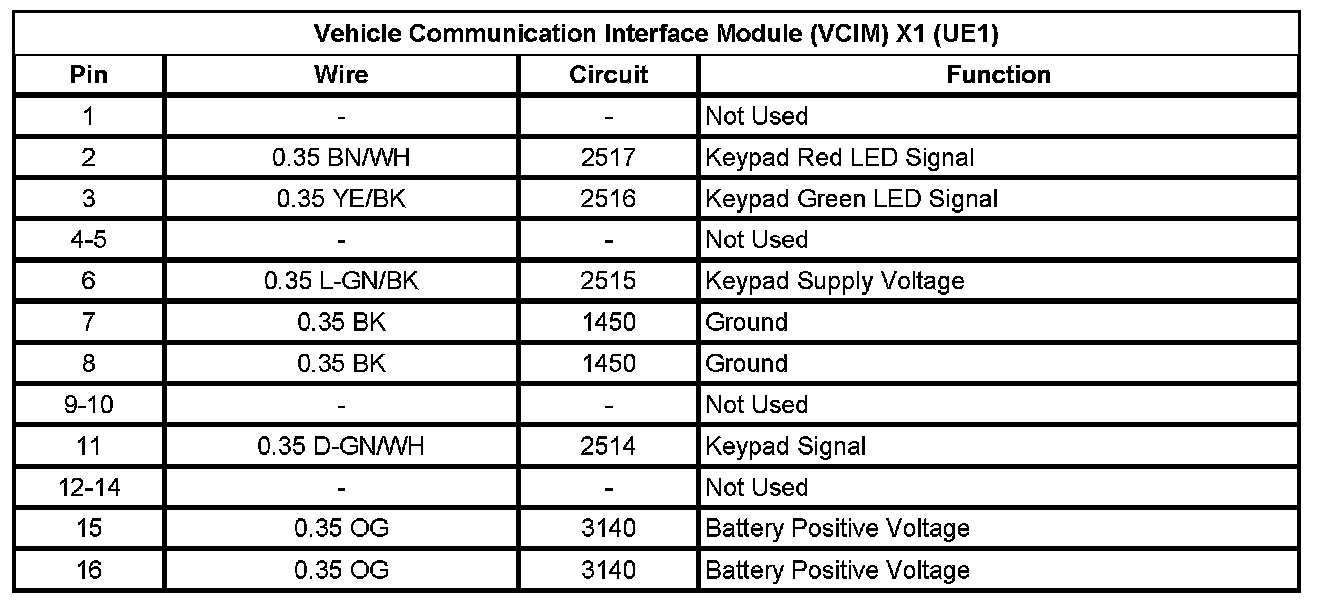

Vehicle Communication Interface Module (VCIM) X1 (UE1)

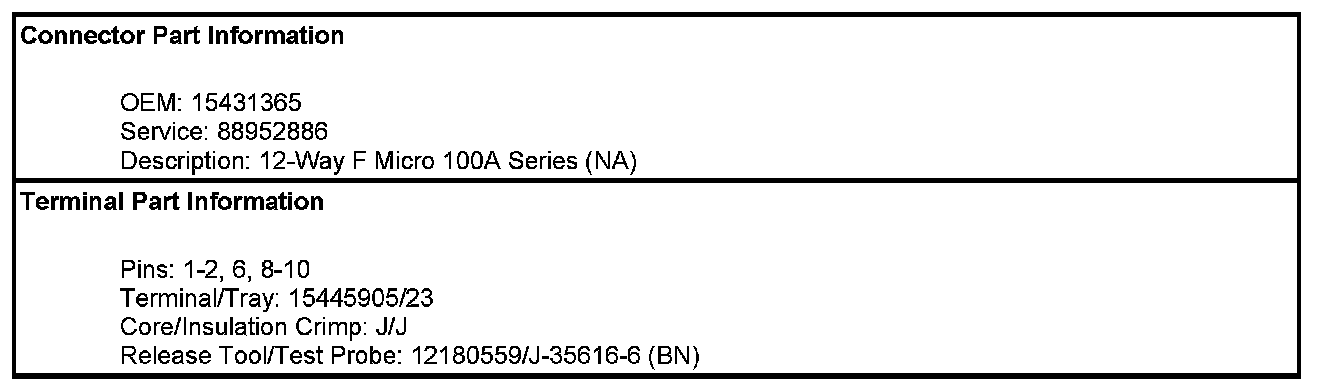

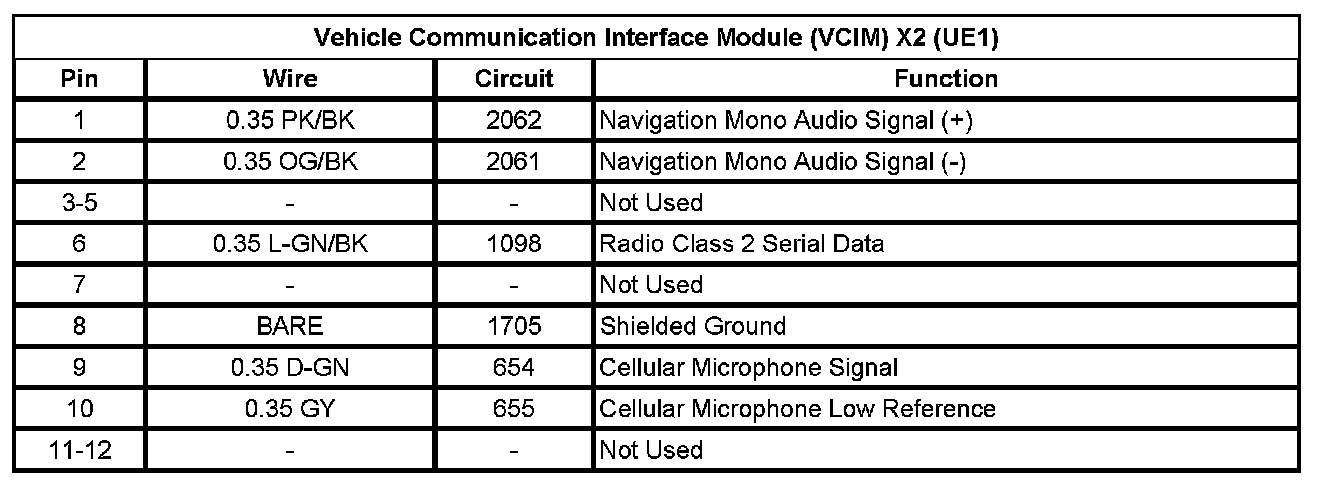

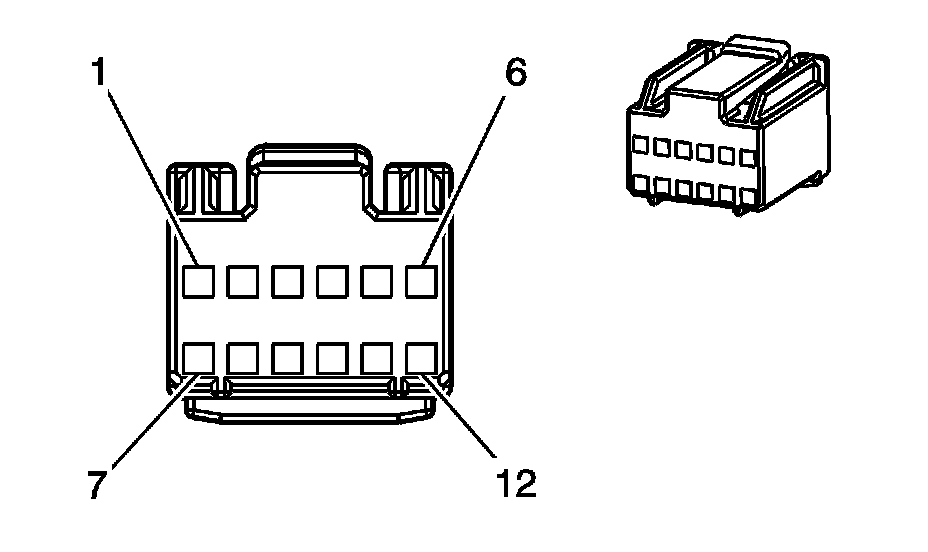

Vehicle Communication Interface Module (VCIM) X2 (UE1)
