Home
>>
Saab
>>
2008
>>
9-7X L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor Clutch
Compressor Clutch

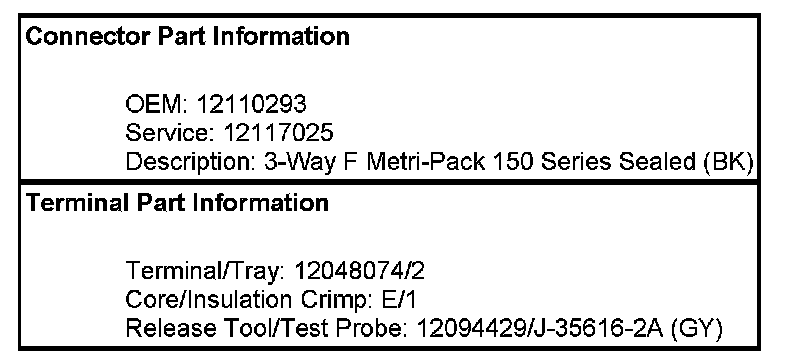

HVAC Connector End Views

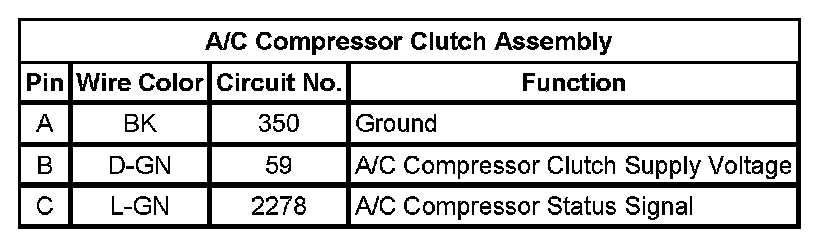

A/C Compressor Clutch Assembly
