Engine Control Module



Component Connector End Views

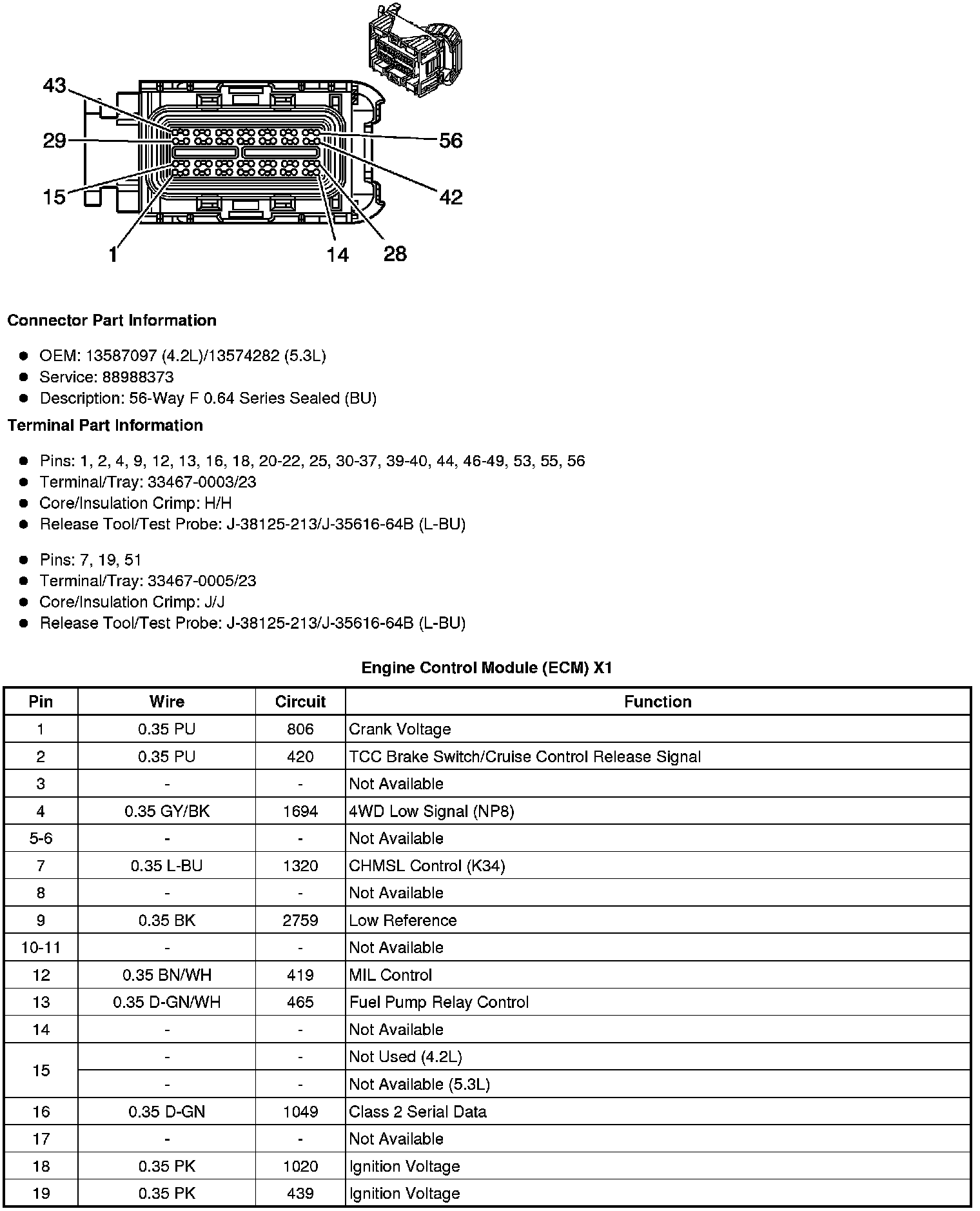

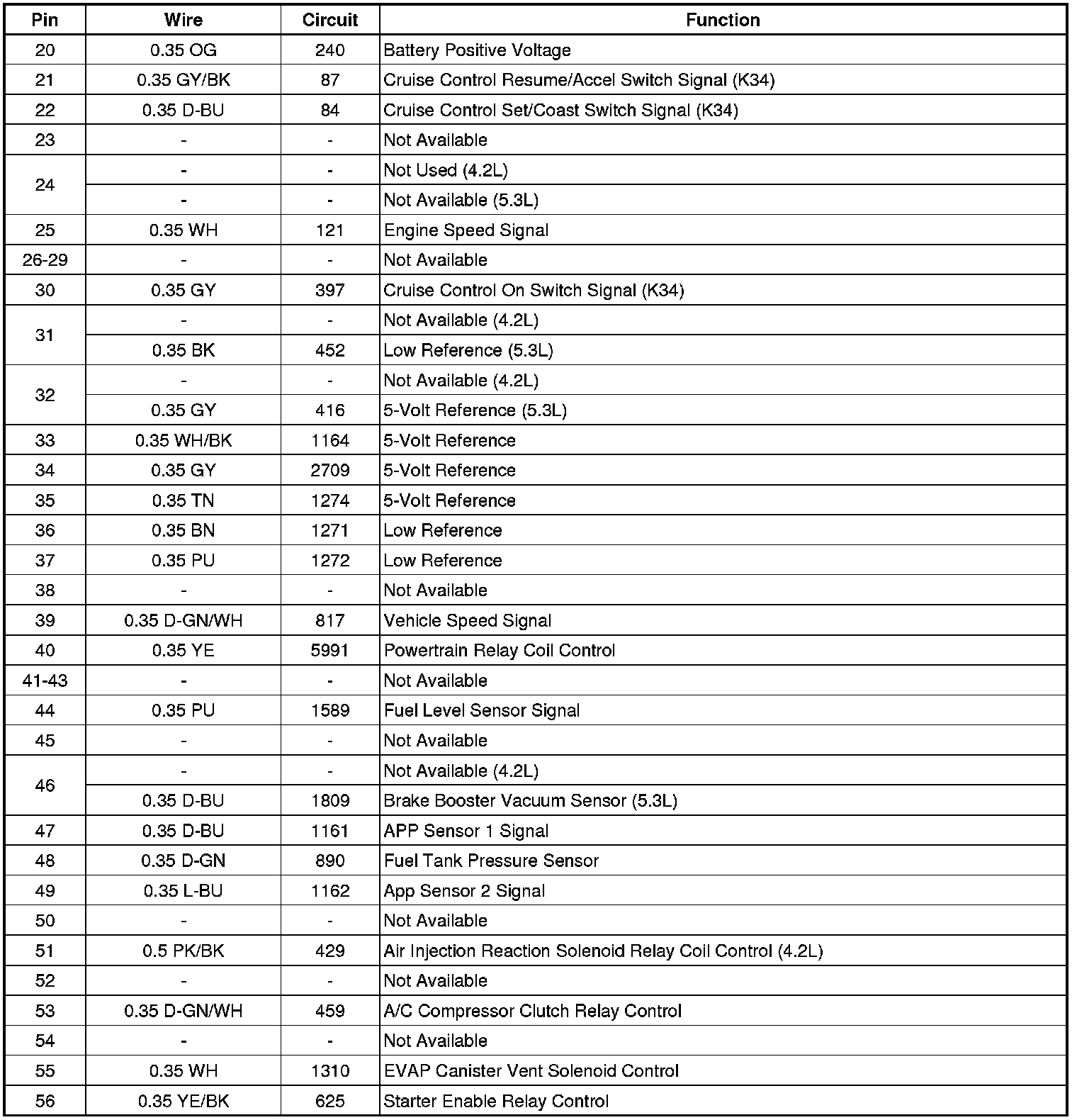

Engine Control Module (ECM) X1

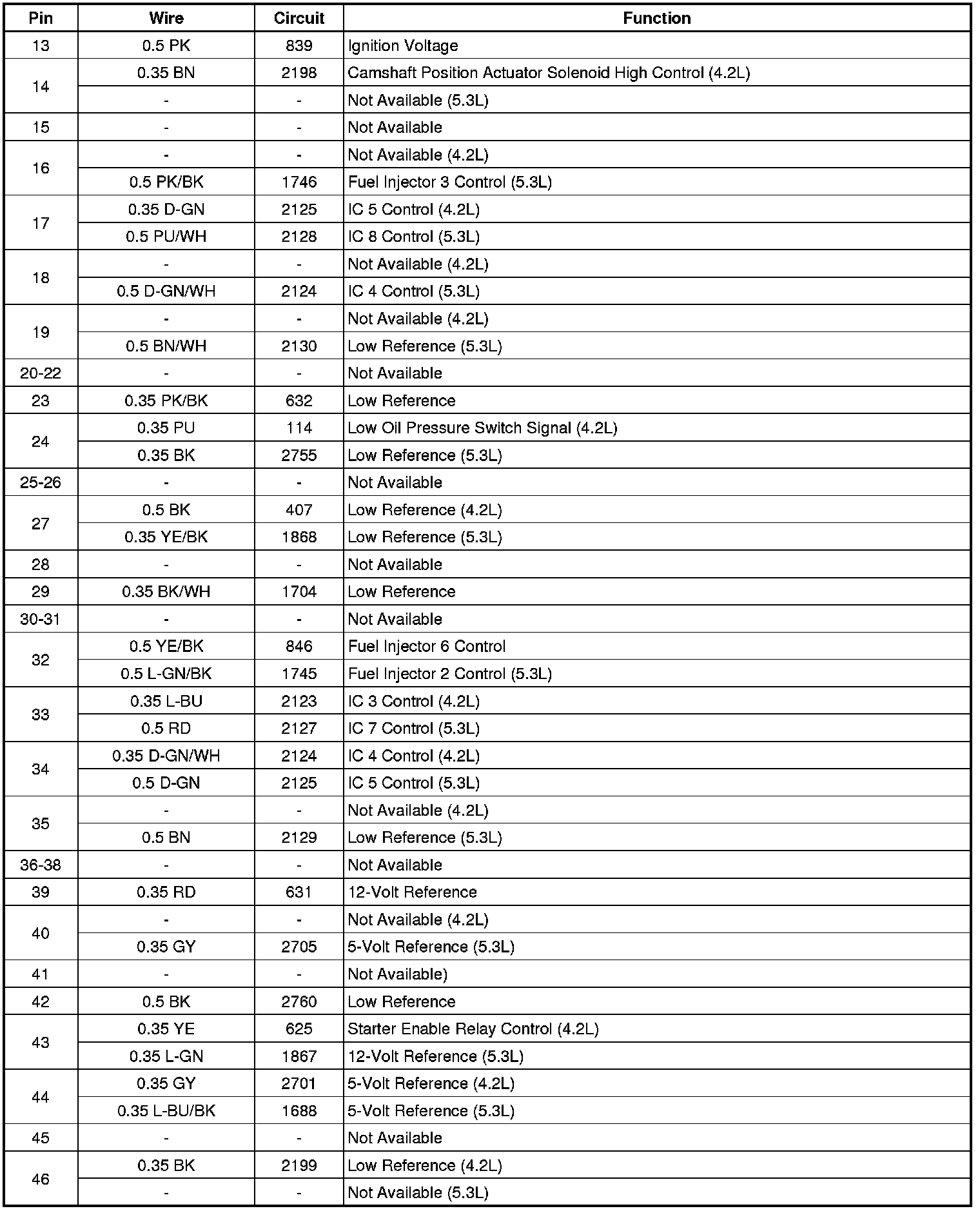

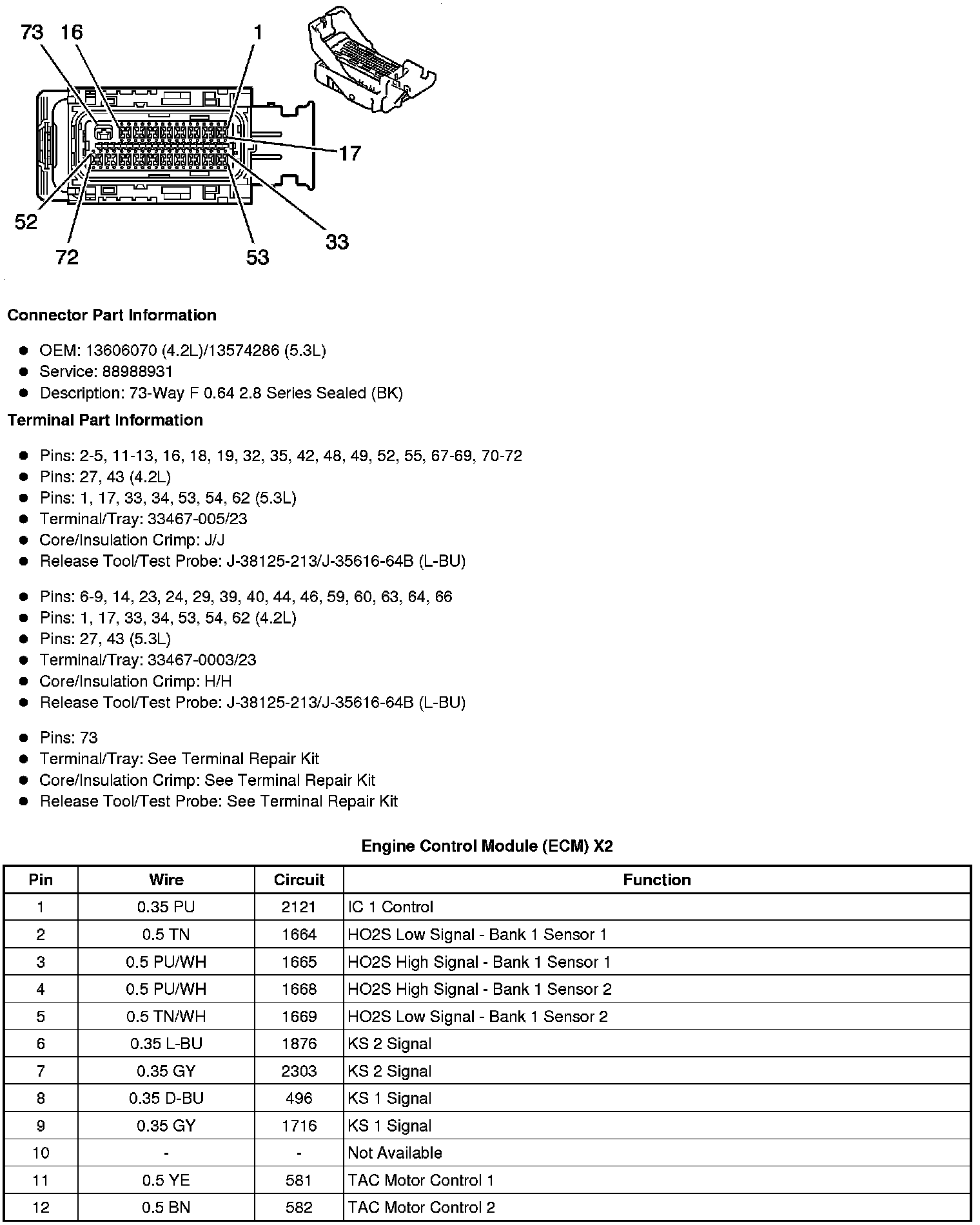

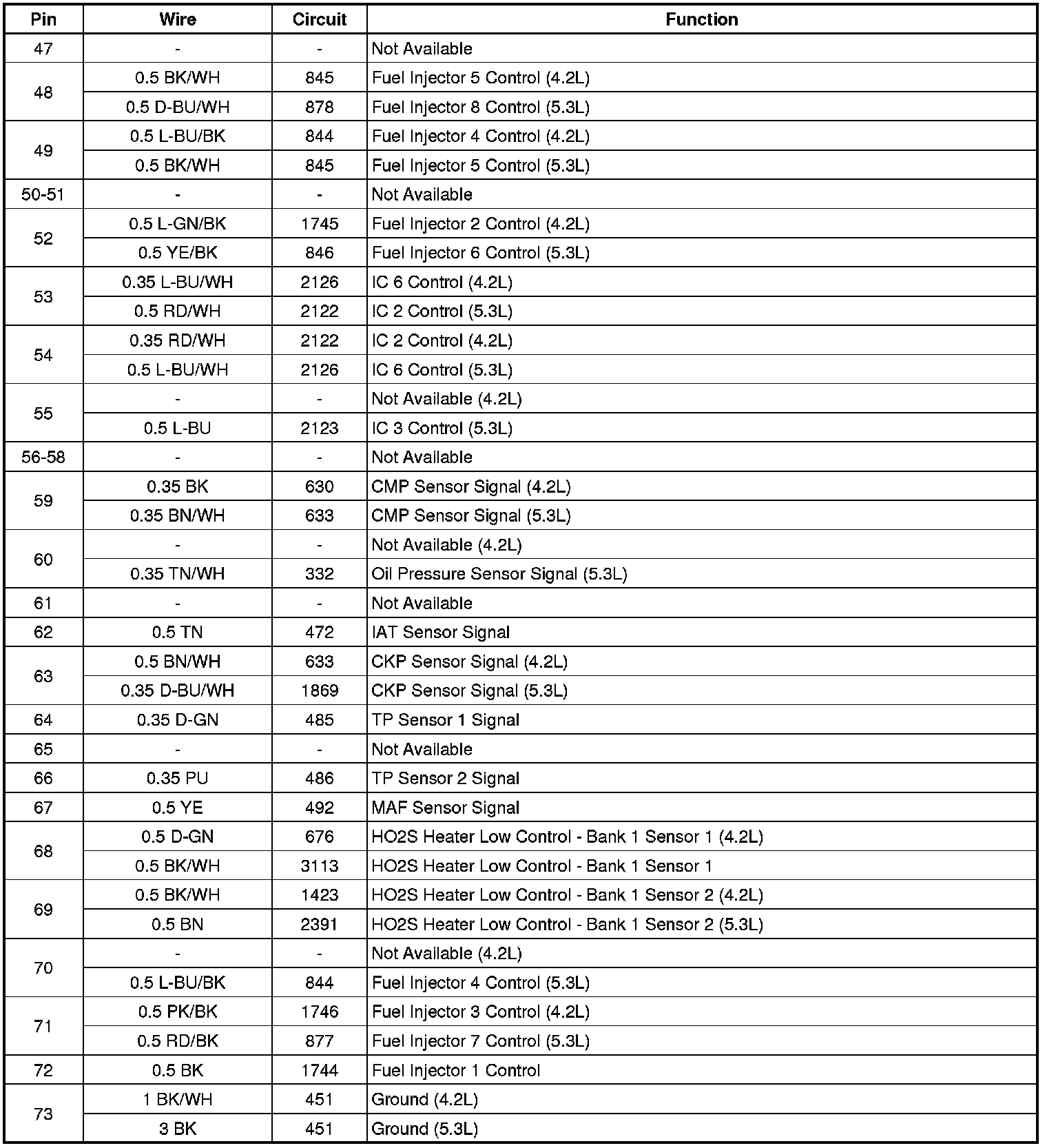

Engine Control Module (ECM) X2

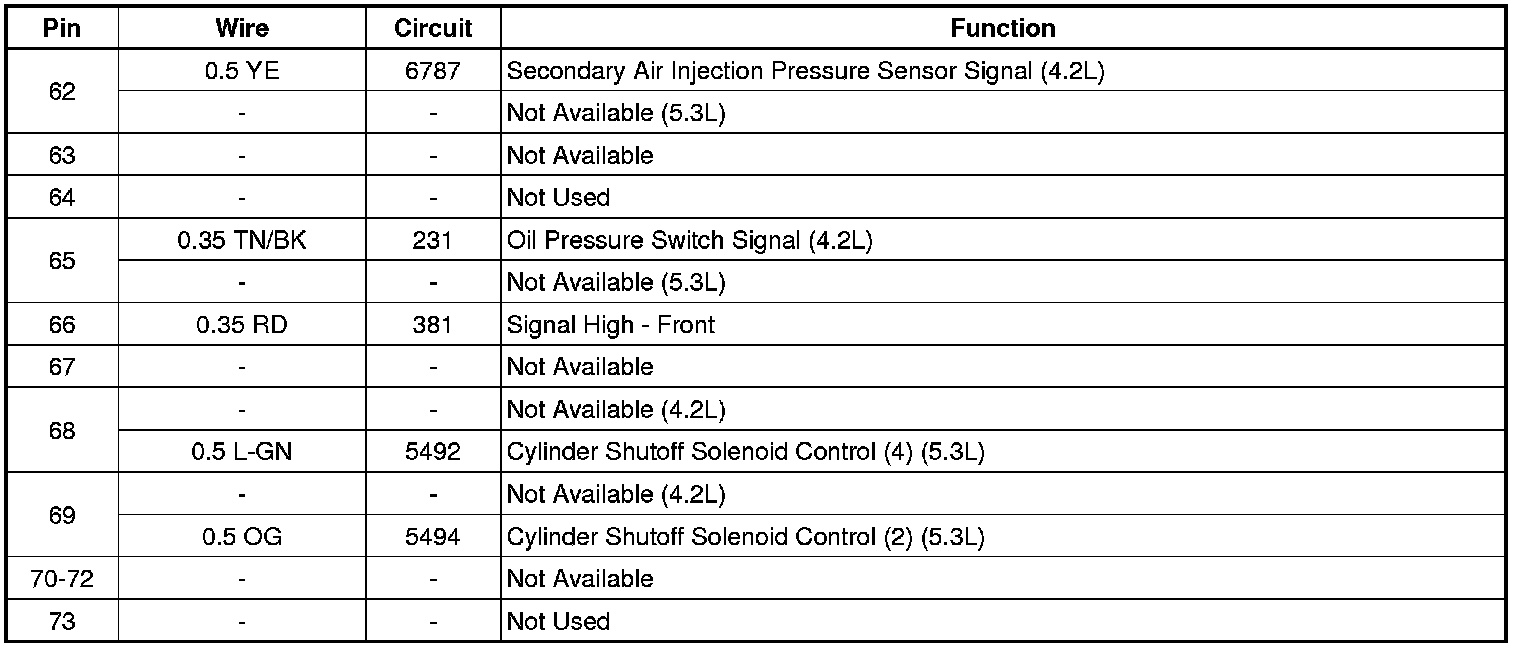

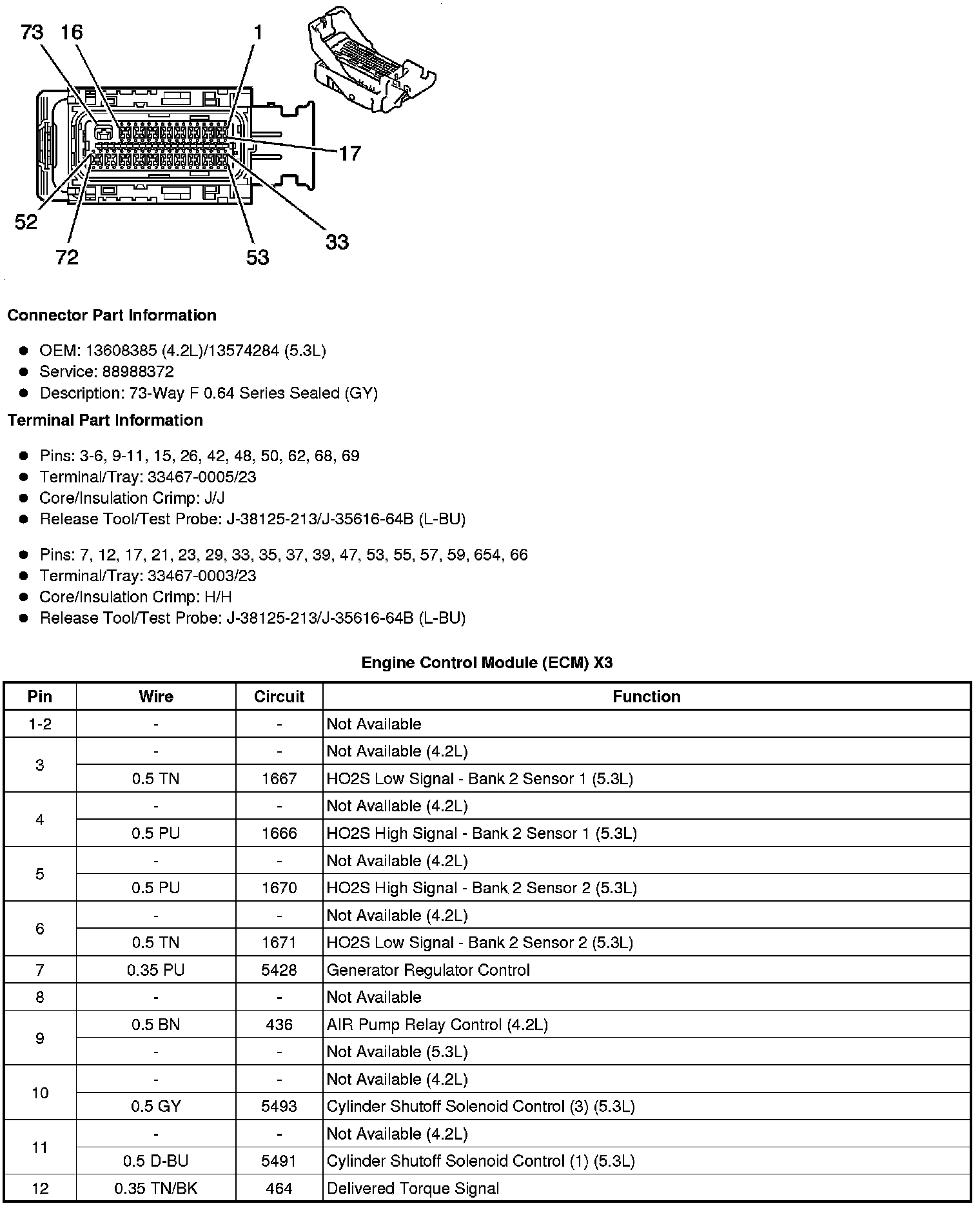

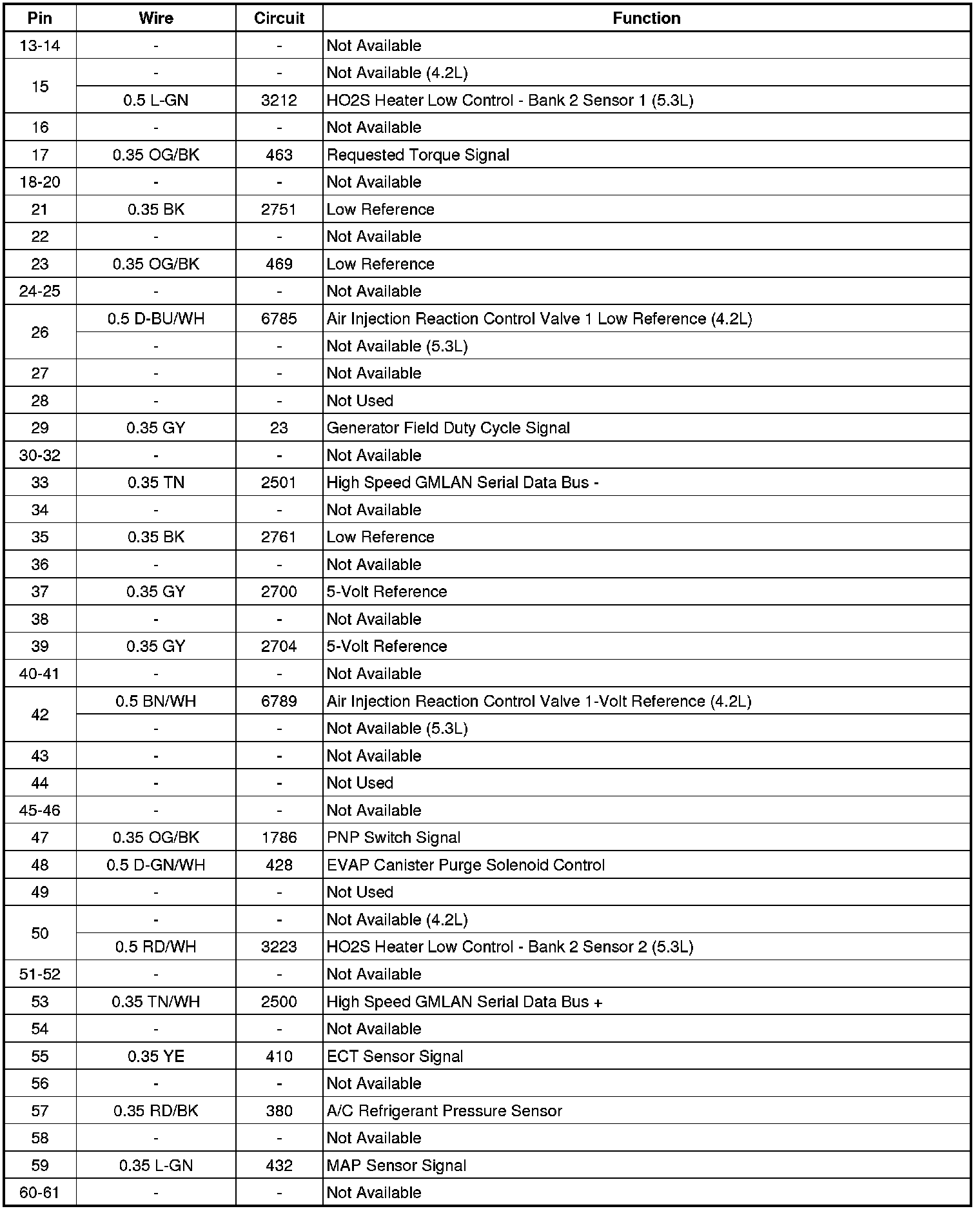

Engine Control Module (ECM) X3
