Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-7X L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Horn
>>
System Diagram
System Diagram

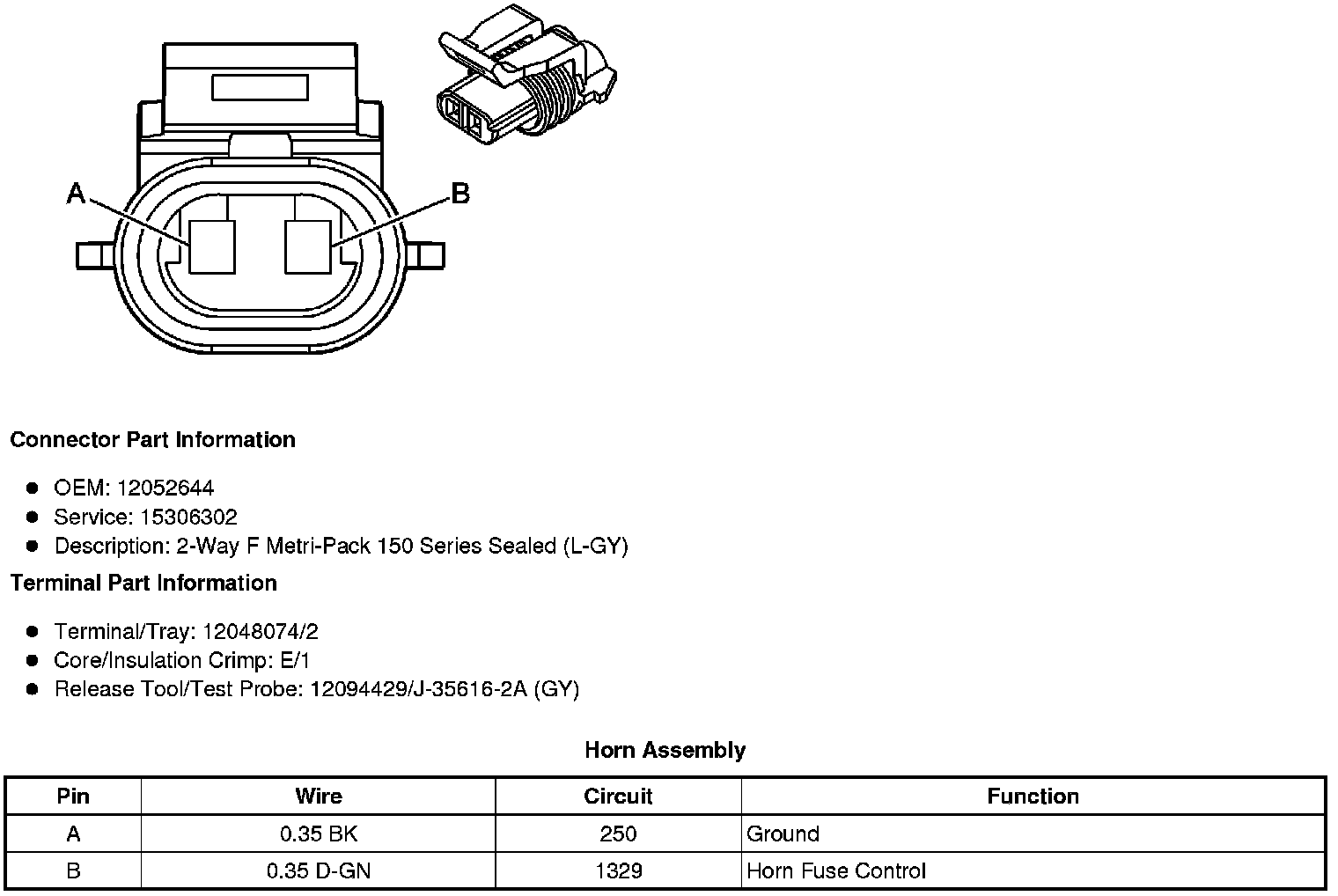

Component Connector End Views
Horn Assembly
