Home >> Saab >> 2008 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor

Impact Sensor



Component Connector End Views

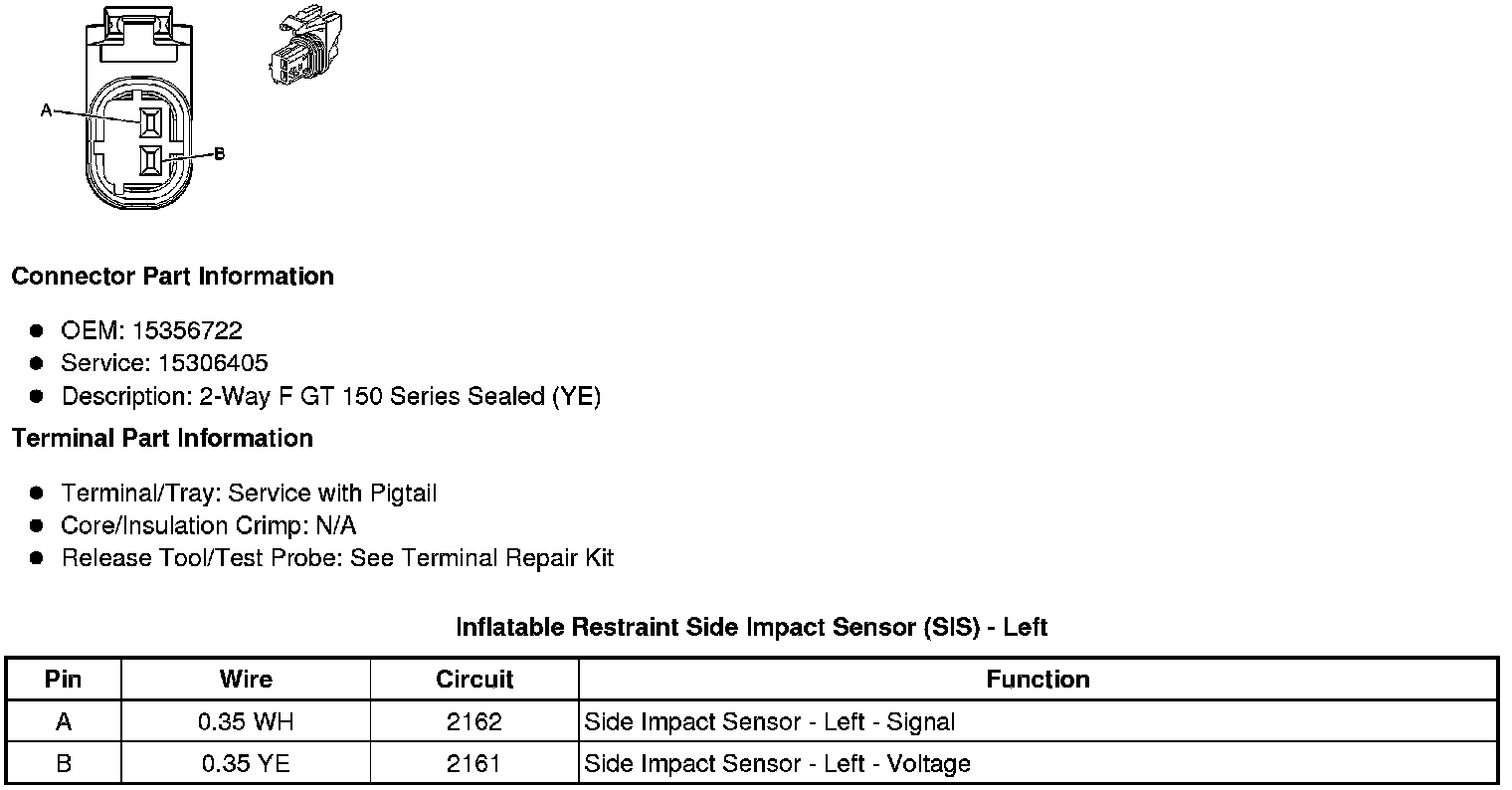

Inflatable Restraint Side Impact Sensor (SIS) - Left

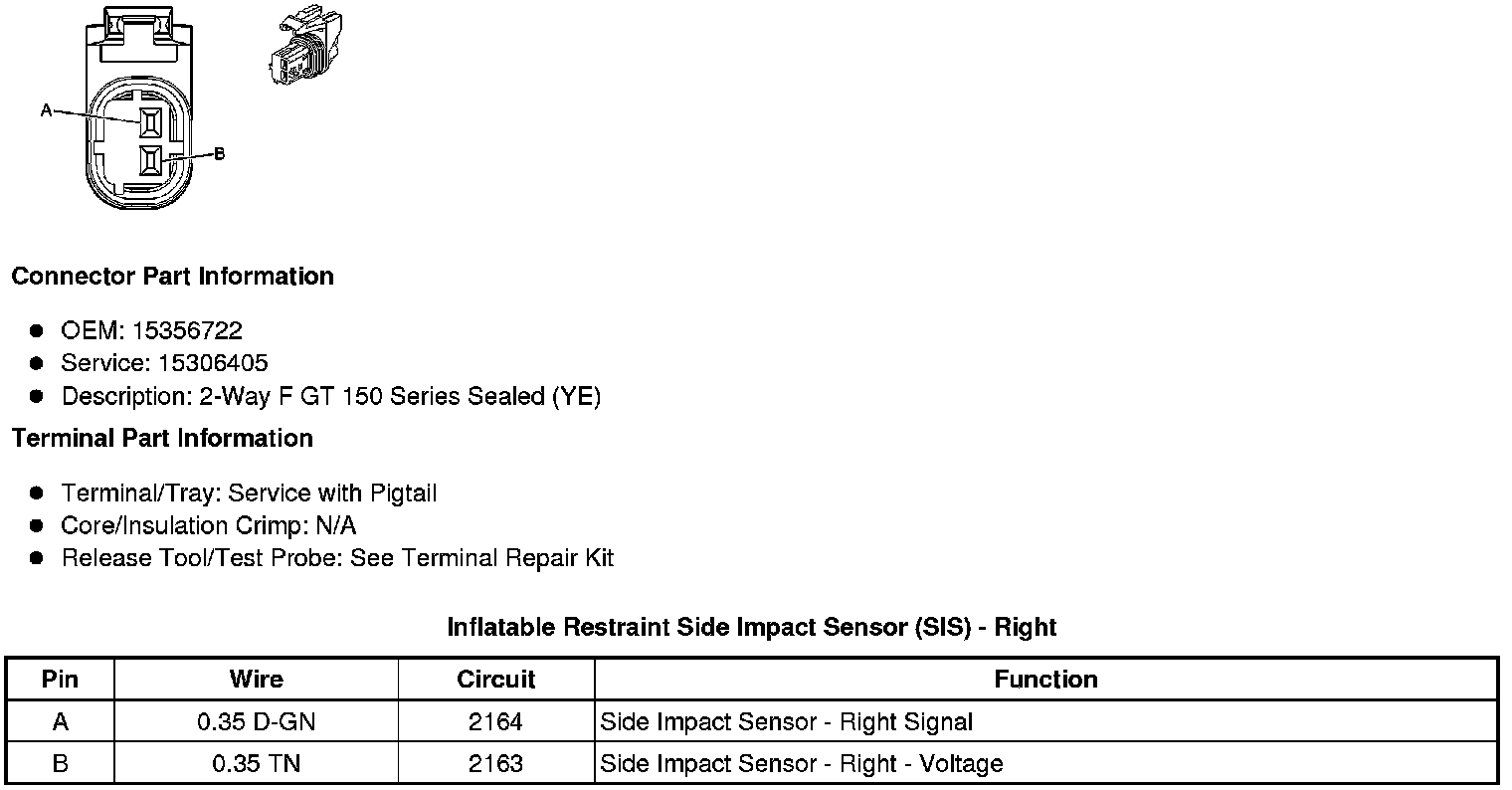

Inflatable Restraint Side Impact Sensor (SIS) - Right
