Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-7X L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Inline Harness Connector End Views
>>
X200-X299
>>
X275
X275
Inline Harness Connector End Views

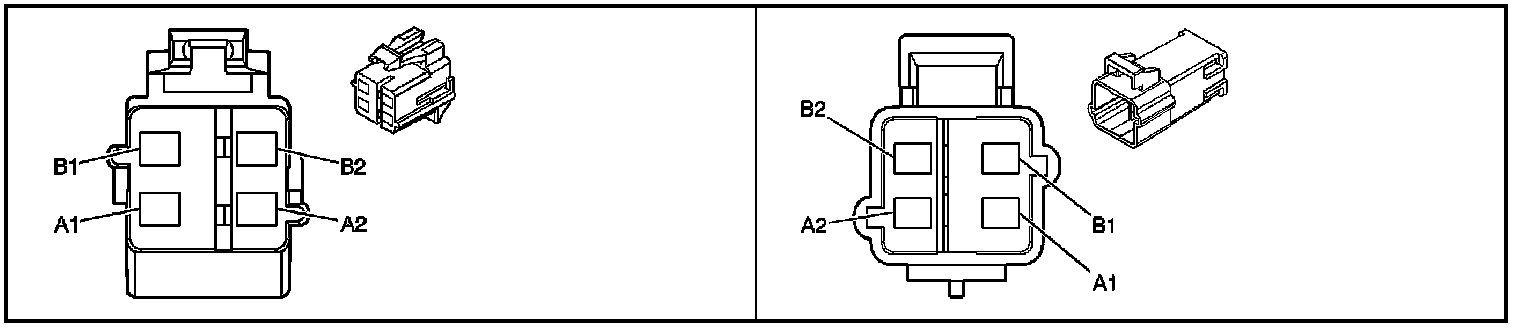

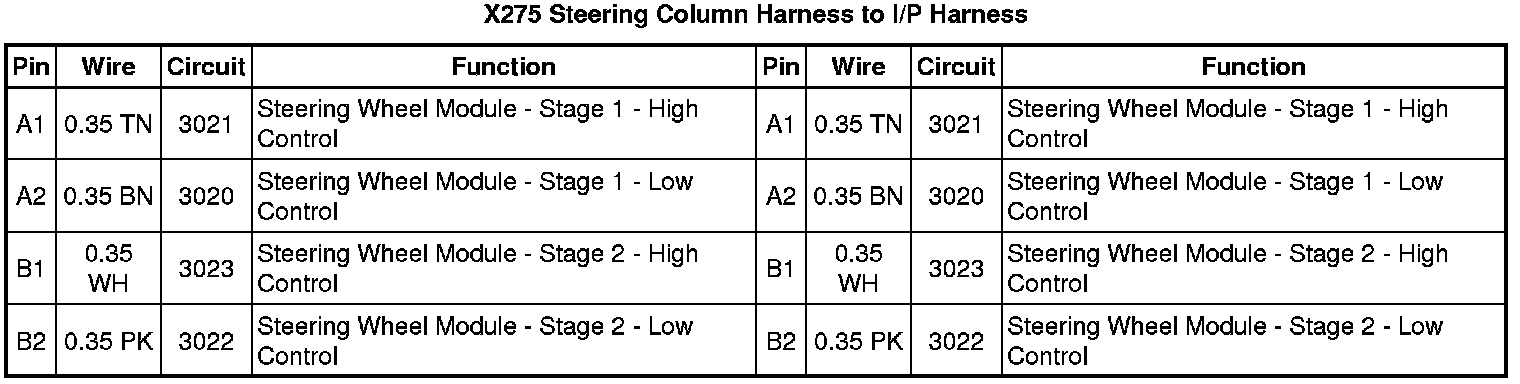

X275 Steering Column Harness to I/P Harness
