Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-7X L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Inline Harness Connector End Views
>>
X300-X399
>>
X306
X306
Inline Harness Connector End Views

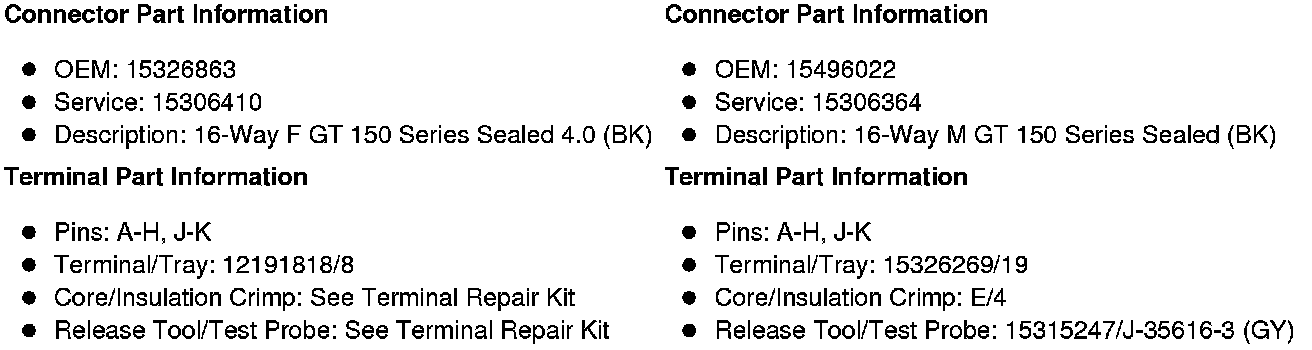

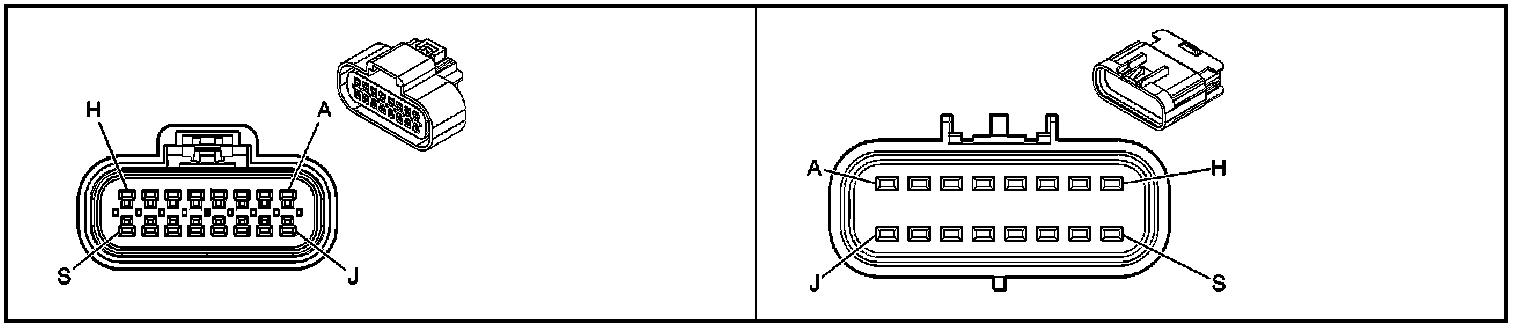

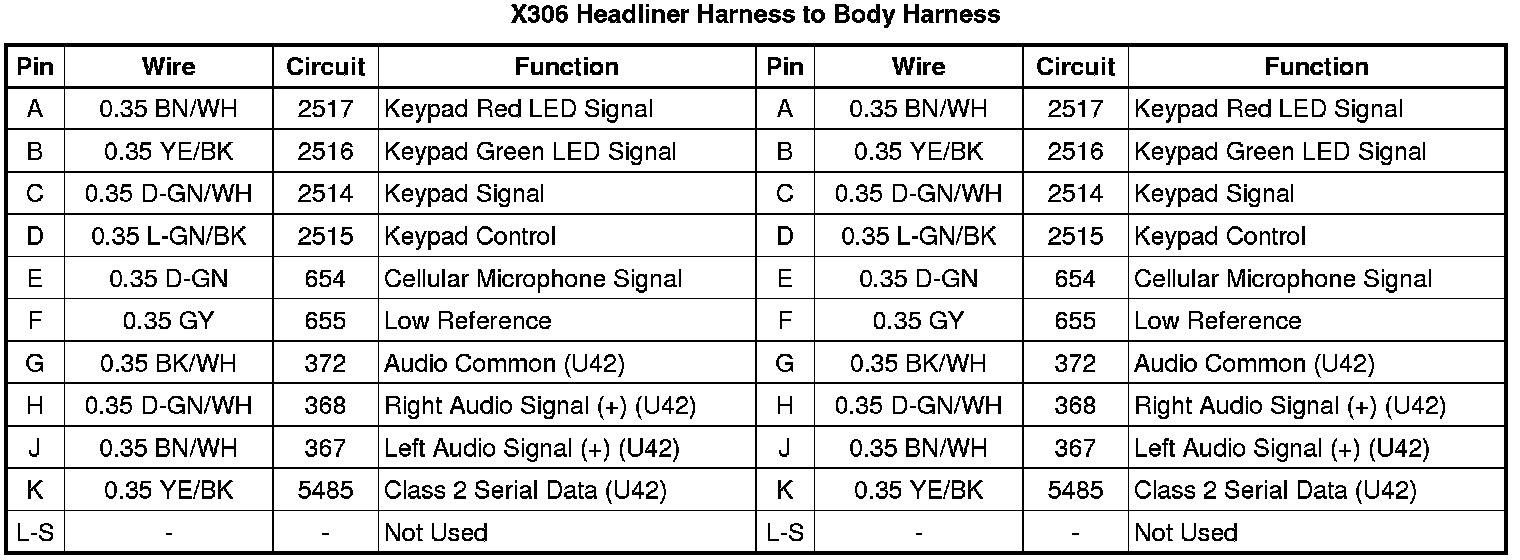

X306 Headliner Harness to Body Harness
