Inline Harness Connector End Views
>>
X300-X399
>>
X308
X308

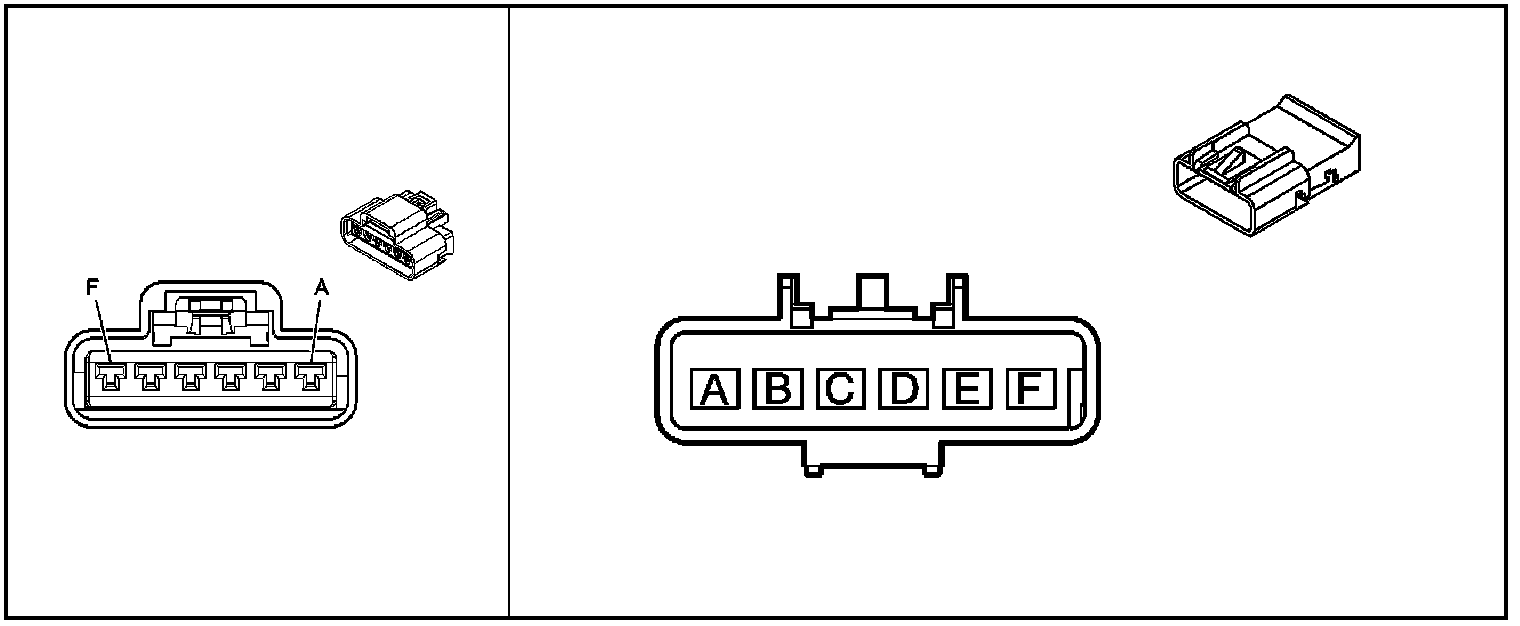

Inline Harness Connector End Views

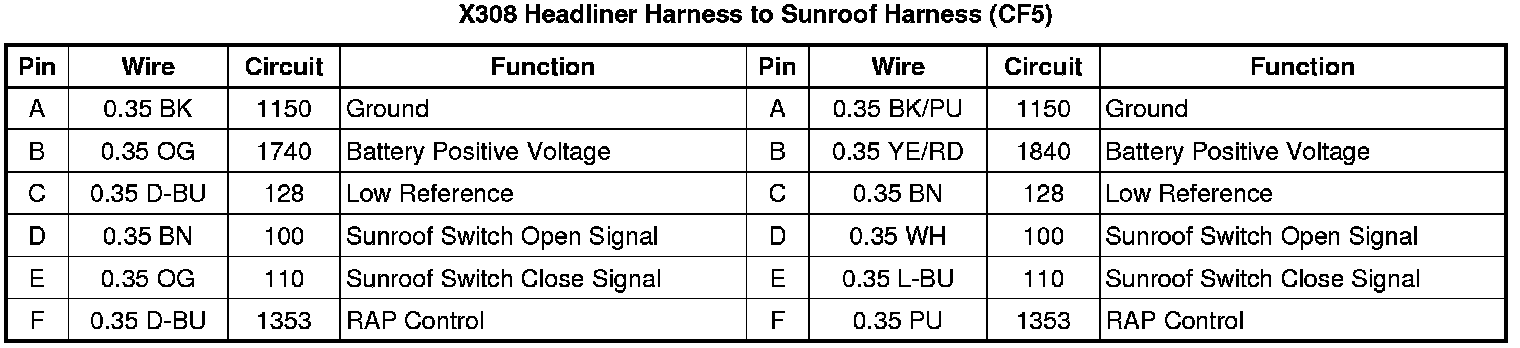

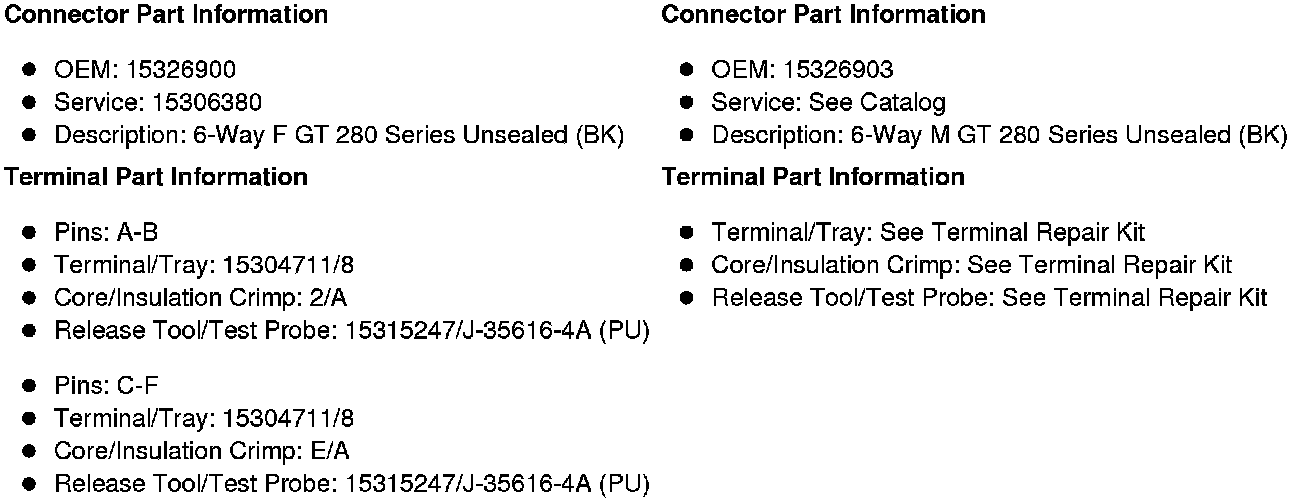

X308 Headliner Harness to Sunroof Harness (CF5)
