Multiple Junction Connector
>>
X300-X399
>>
X311
X311

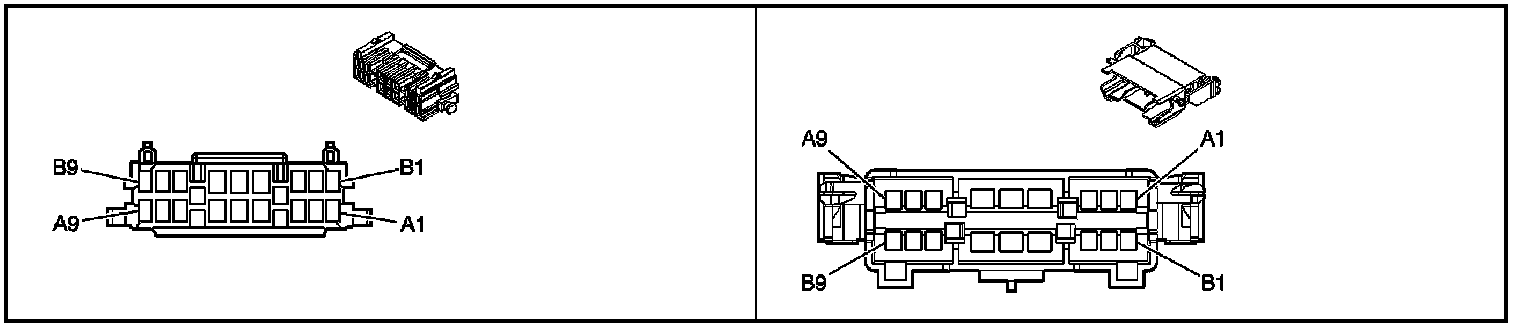

Inline Harness Connector End Views

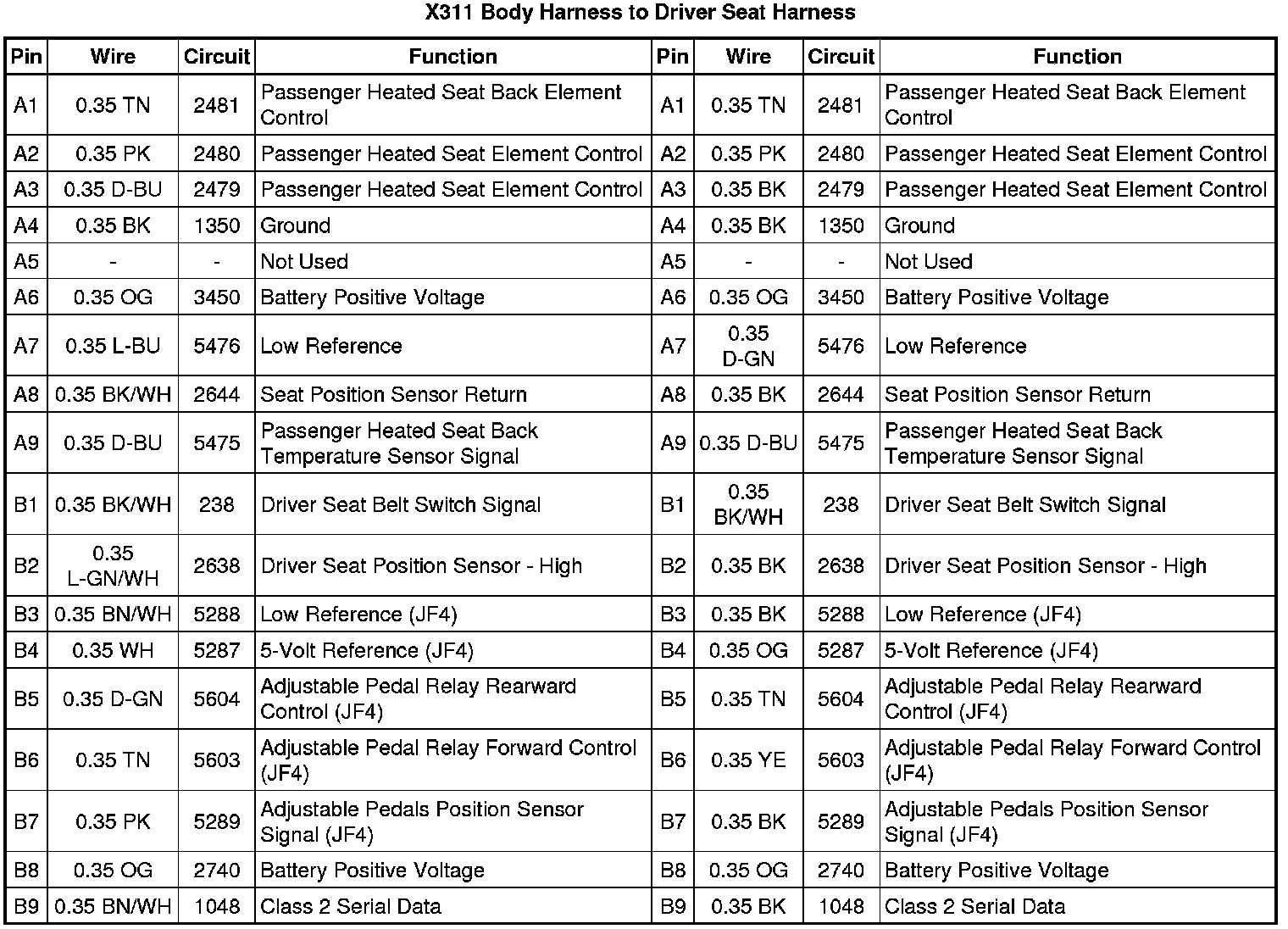

X311 Body Harness to Driver Seat Harness
