Ride Height Sensor, Suspension Control



Air Suspension Connector End Views

Air Suspension Compressor Assembly C2 (Air Suspension Inflator Switch)

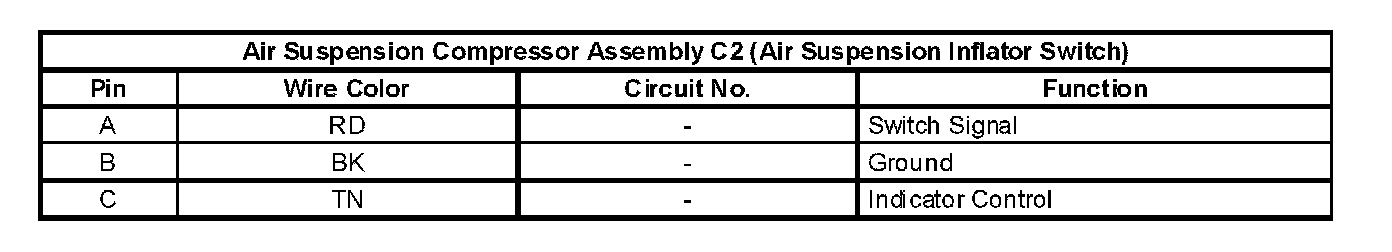

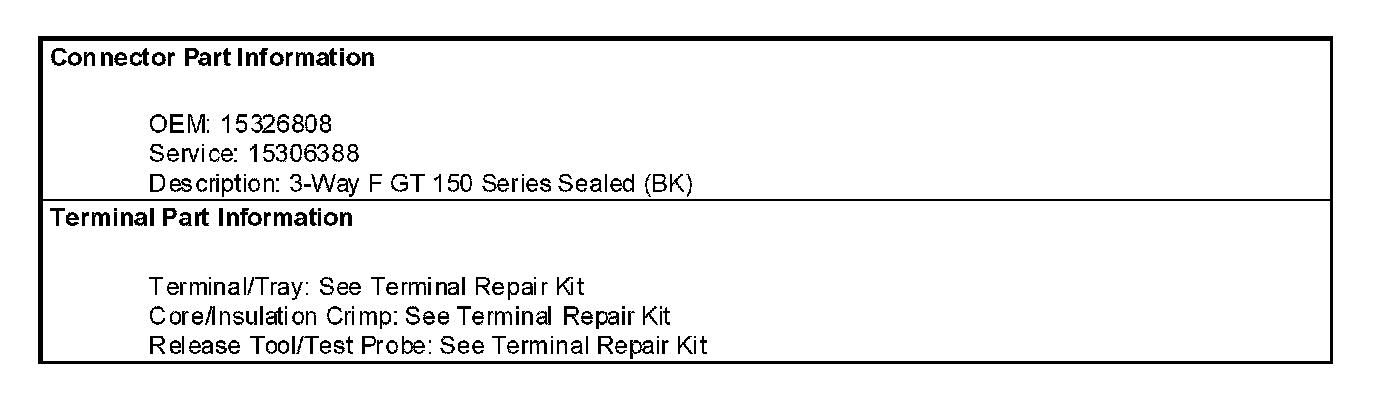

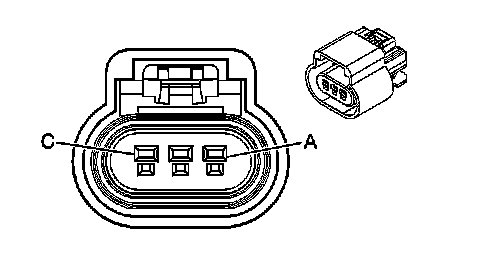

Air Suspension Compressor Assembly C2 (Air Suspension Inflator Switch):
