Home >> Saab >> 2008 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights Diagram 2

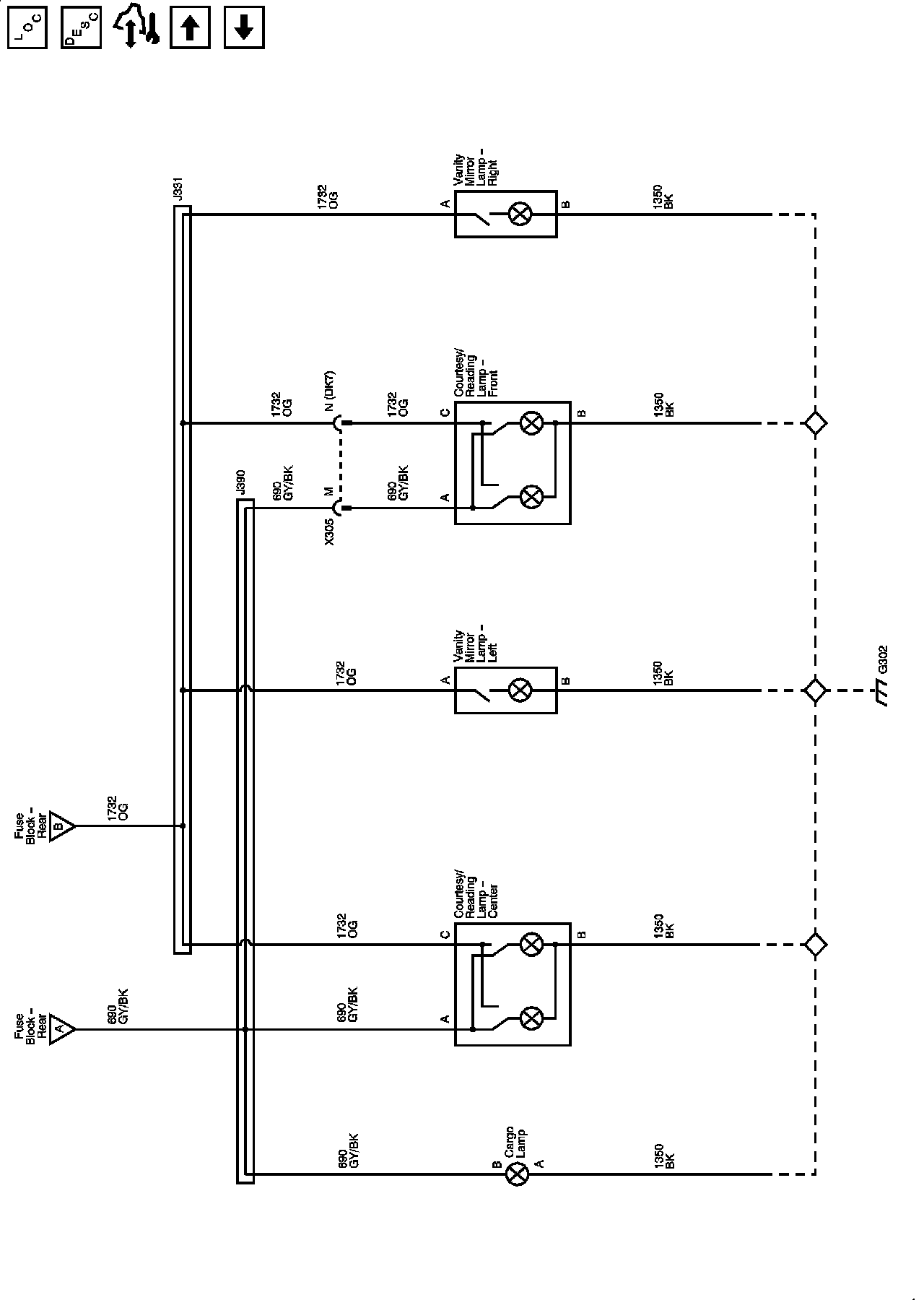

Interior Lights Diagram 2

Interior Lights Schematics

Interior Lamps

Interior Lights Diagram 2:
