Power Distribution Schematics
>>
Power Distribution Diagram 15
Power Distribution Diagram 15
Power Distribution Schematics

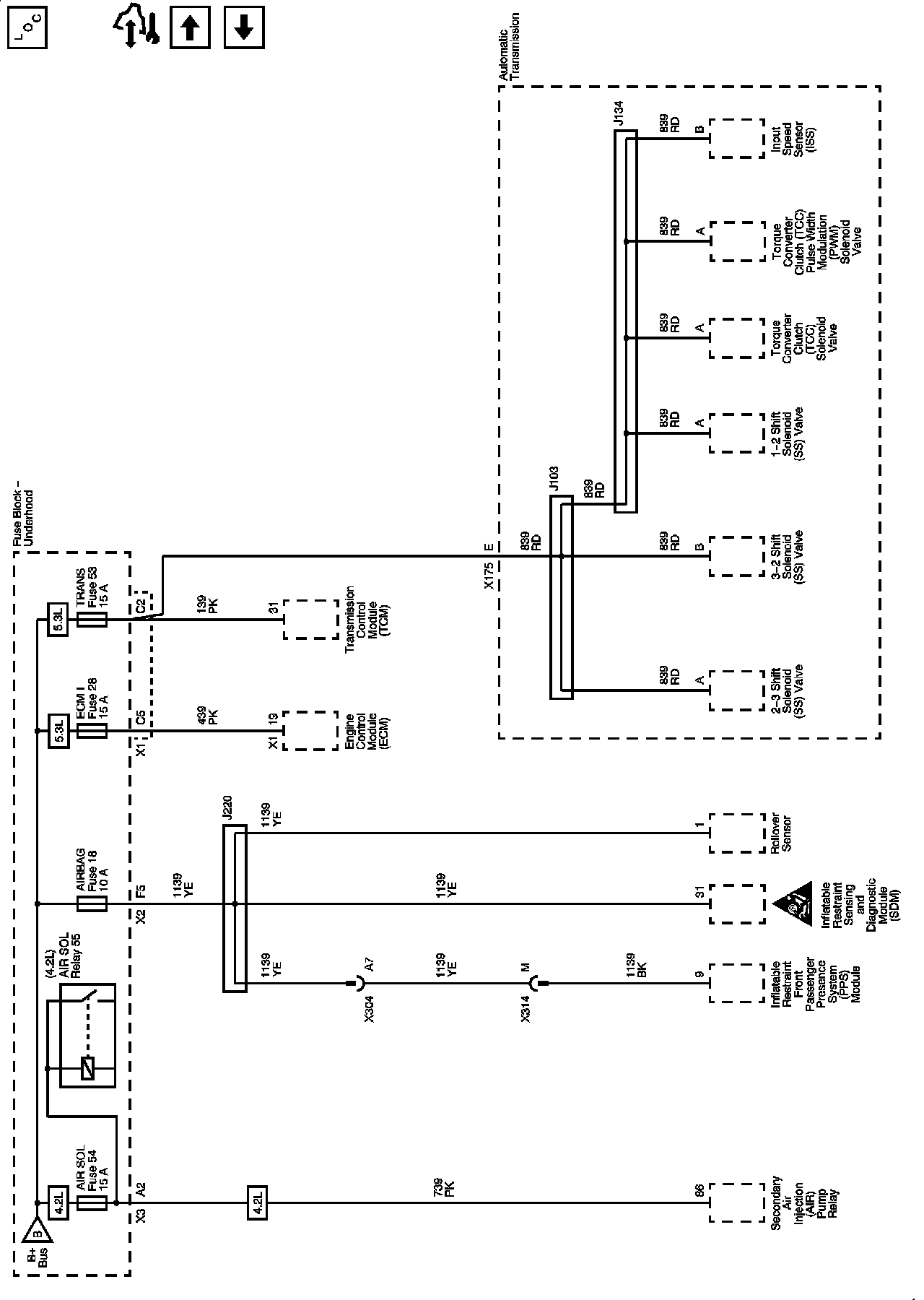

AIR SOL, AIRBAG, ECM I, and TRANS Fuses
