Saab
>>
2008
>>
9-7X L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
System Diagram
System Diagram
Starting and Charging
Schematics

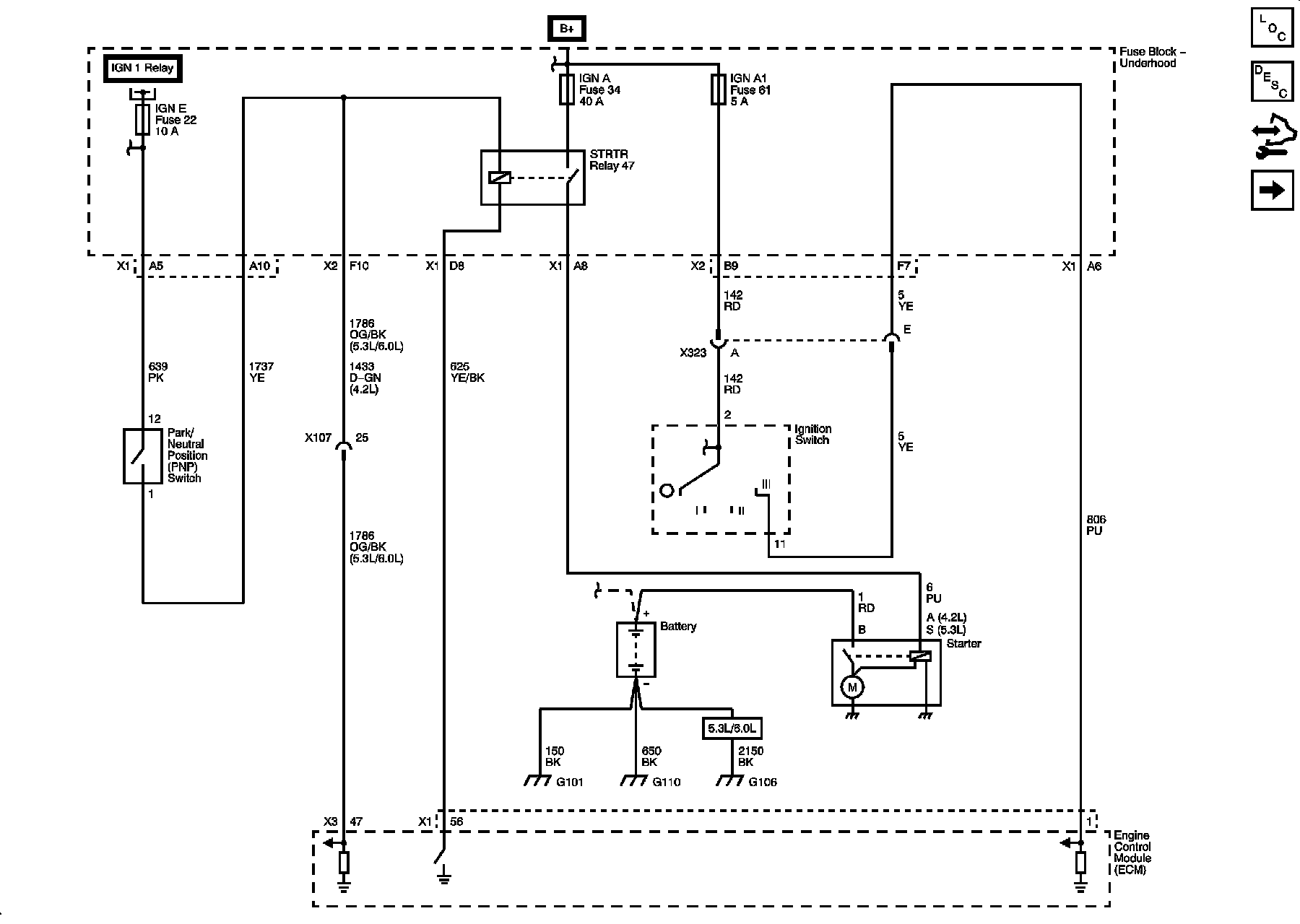

Starting System

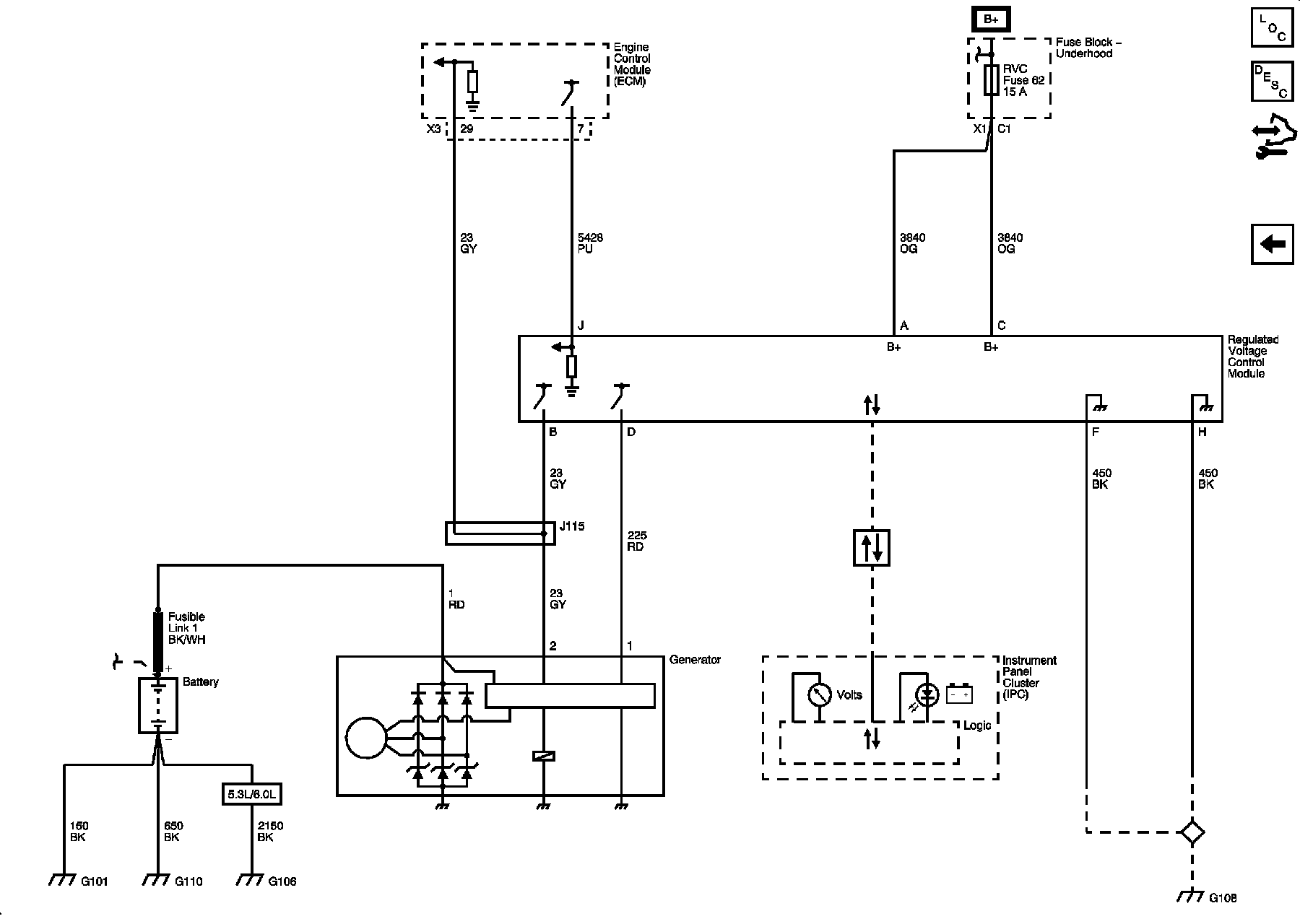

Charging System
