Engine Lift Bracket Installation

Engine Lift Bracket Installation

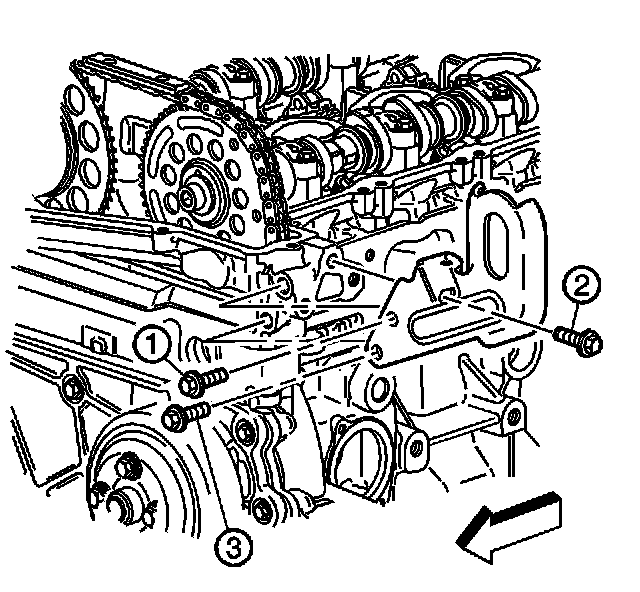

1. Install the engine lift bracket.

Notice: Refer to Fastener Notice.

2. Install the engine lift bracket bolts in sequence.

Tighten the engine lift bracket bolts in sequence to 50 Nm (37 ft. lbs.)
