Heater Outlet Hose Fitting Installation

Heater Outlet Hose Fitting Installation




1. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the heater outlet hose fitting threads.

Notice: Refer to Fastener Notice.

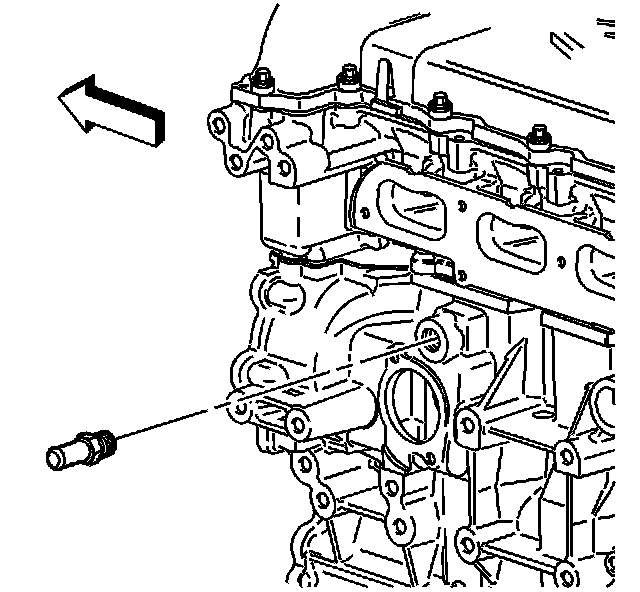

2. Install the heater outlet hose fitting.

Tighten the heater outlet hose fitting to 45 Nm (33 ft. lbs.).
