Power Steering Pump Bracket Installation

Power Steering Pump Bracket Installation

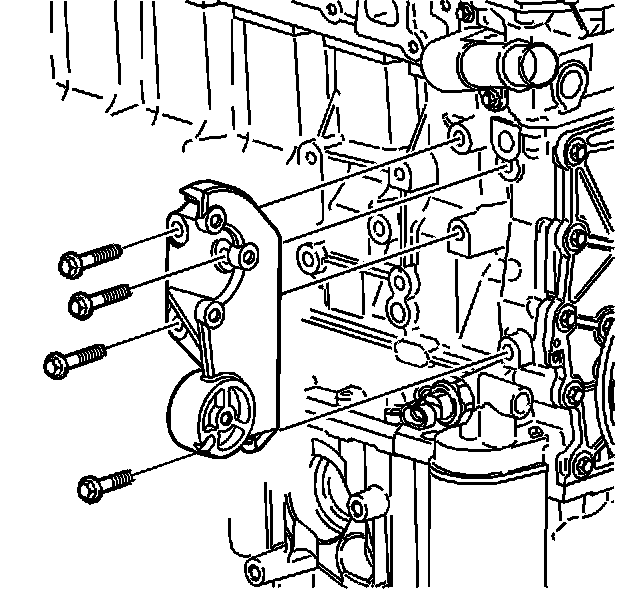

1. Install the power steering pump bracket.

Notice: Refer to Fastener Notice.

2. Install the power steering pump bracket bolts.

Tighten the power steering pump bracket bolts to 50 Nm (37 ft. lbs.).
