Water Outlet Installation

Water Outlet Installation

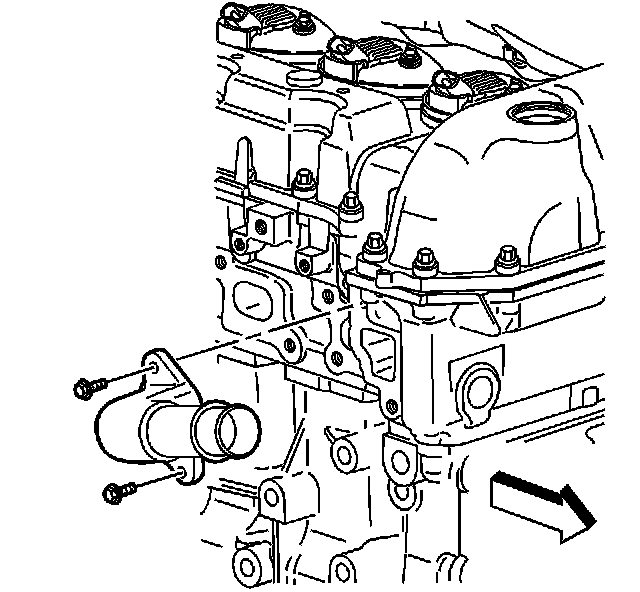

1. Install the water outlet.

Notice: Refer to Fastener Notice.

2. Install the water outlet bolts.

Tighten the water outlet bolts to 10 Nm (89 in. lbs.).
