Timing Chain: Diagrams

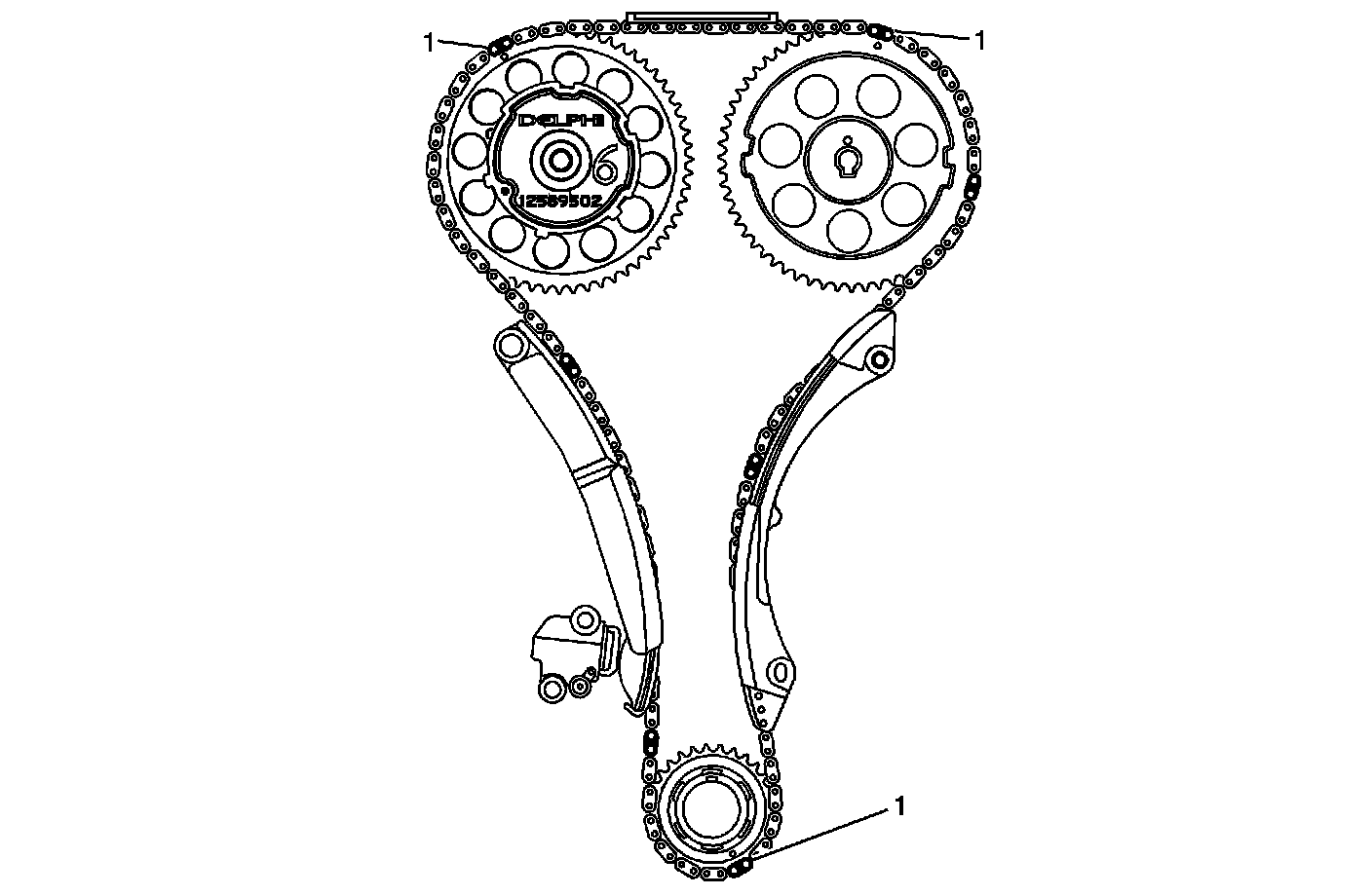

Timing Chain Alignment Diagram

1 - Timing Marks
1 - Timing Marks
1 - Timing Marks
