Evaporator Drain Tube: Service and Repair

Evaporator Tube Replacement

Tools Required
* J 26549-E Orifice Tube Remover
* J 39400-A Halogen Leak Detector

Removal Procedure

1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (Refrigerant Recovery and Recharging).

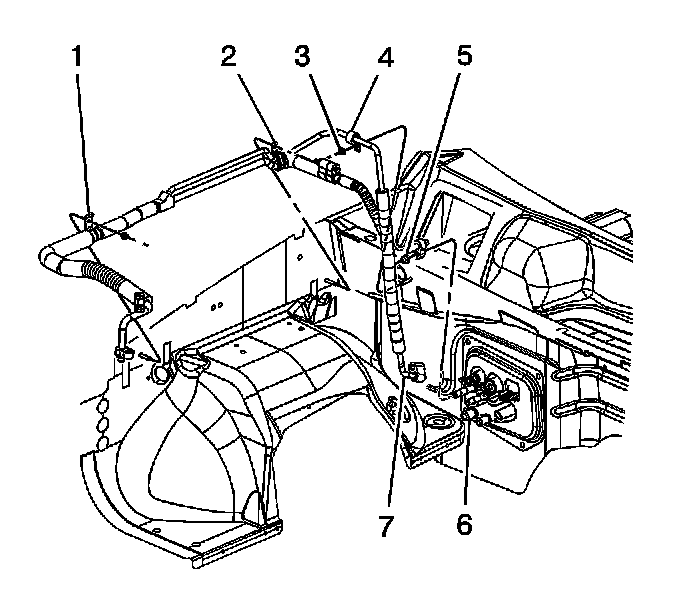

2. Loosen the evaporator tube (5) from the evaporator.
3. Loosen the auxiliary evaporator tube (7) from the auxiliary piping.
4. Remove the evaporator tube nut from the condenser.
5. Remove the nuts (1, 2) retaining the evaporator tube to the fender.
6. Remove the washer solvent container. Refer to Windshield Washer Solvent Container Replacement (Service and Repair).
7. Remove the coolant recovery tank. Refer to Coolant Recovery Reservoir Replacement (Coolant Recovery Reservoir Replacement).
8. Remove the evaporator tube using J 26549-E.
9. Remove the O-ring seal and discard.

Installation Procedure

1. Install the new O-ring seal. Refer to O-Ring Replacement (O-Ring Replacement).




2. Install the evaporator tube.

Notice: Refer to Fastener Notice.

3. Connect the evaporator tube to the evaporator (5).

Tighten the nut to 28 Nm (21 ft. lbs.).

4. Connect the auxiliary evaporator tube to the auxiliary piping.

Tighten the nut to 28 Nm (21 ft. lbs.).

5. Connect the evaporator tube to the condenser.

Tighten the nut to 28 Nm (21 ft. lbs.).

6. Install the coolant recovery tank. Refer to Coolant Recovery Reservoir Replacement (Coolant Recovery Reservoir Replacement).
7. Install the washer solvent container. Refer to Windshield Washer Solvent Container Replacement (Service and Repair).
8. Install the nuts (1, 2) retaining the evaporator tube to the fender.

Tighten the nuts to 28 Nm (21 ft. lbs.).

9. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging (Refrigerant Recovery and Recharging).
10. Leak test the fittings of the components using the J 39400-A.
