Instrument Cluster / Carrier: Diagrams

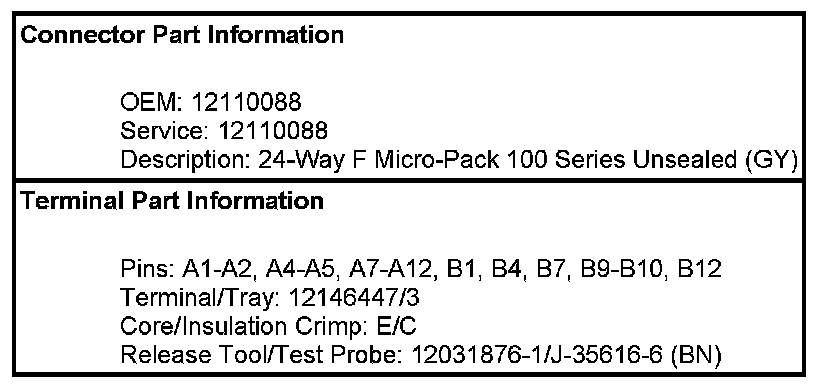

Displays and Gages Connector End Views

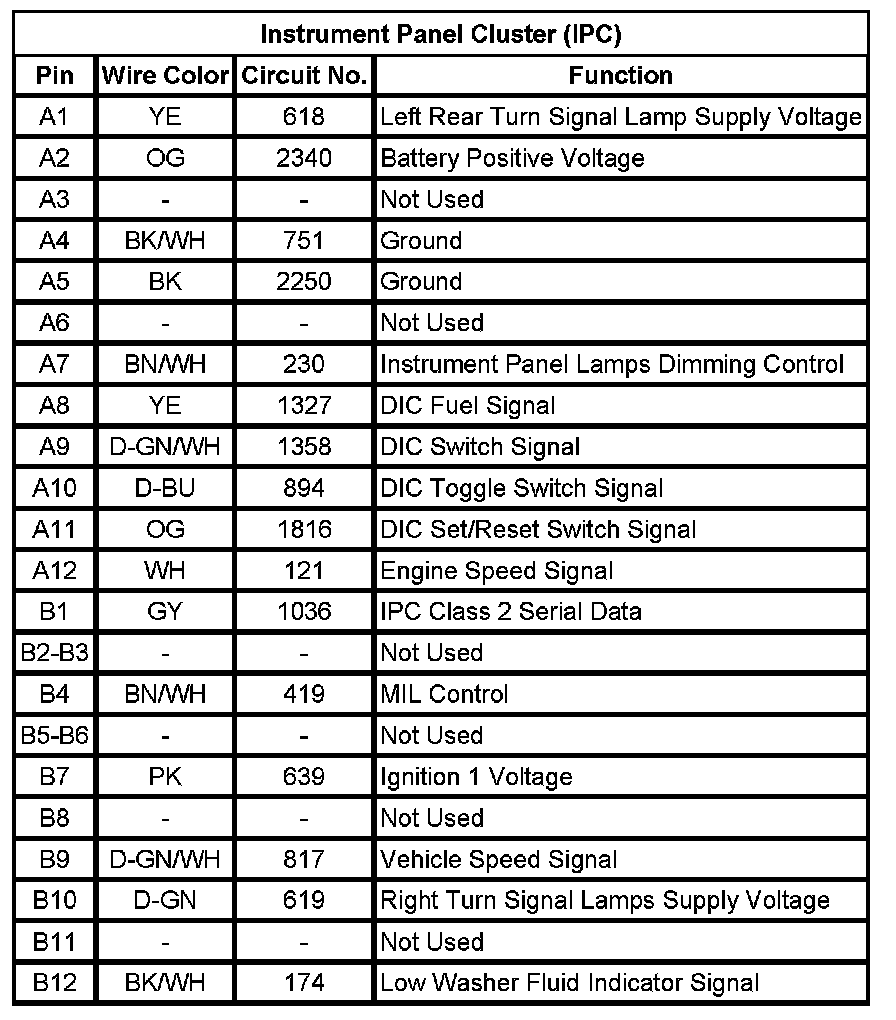

Instrument Panel Cluster (IPC)
