Exterior Lights Diagram 2

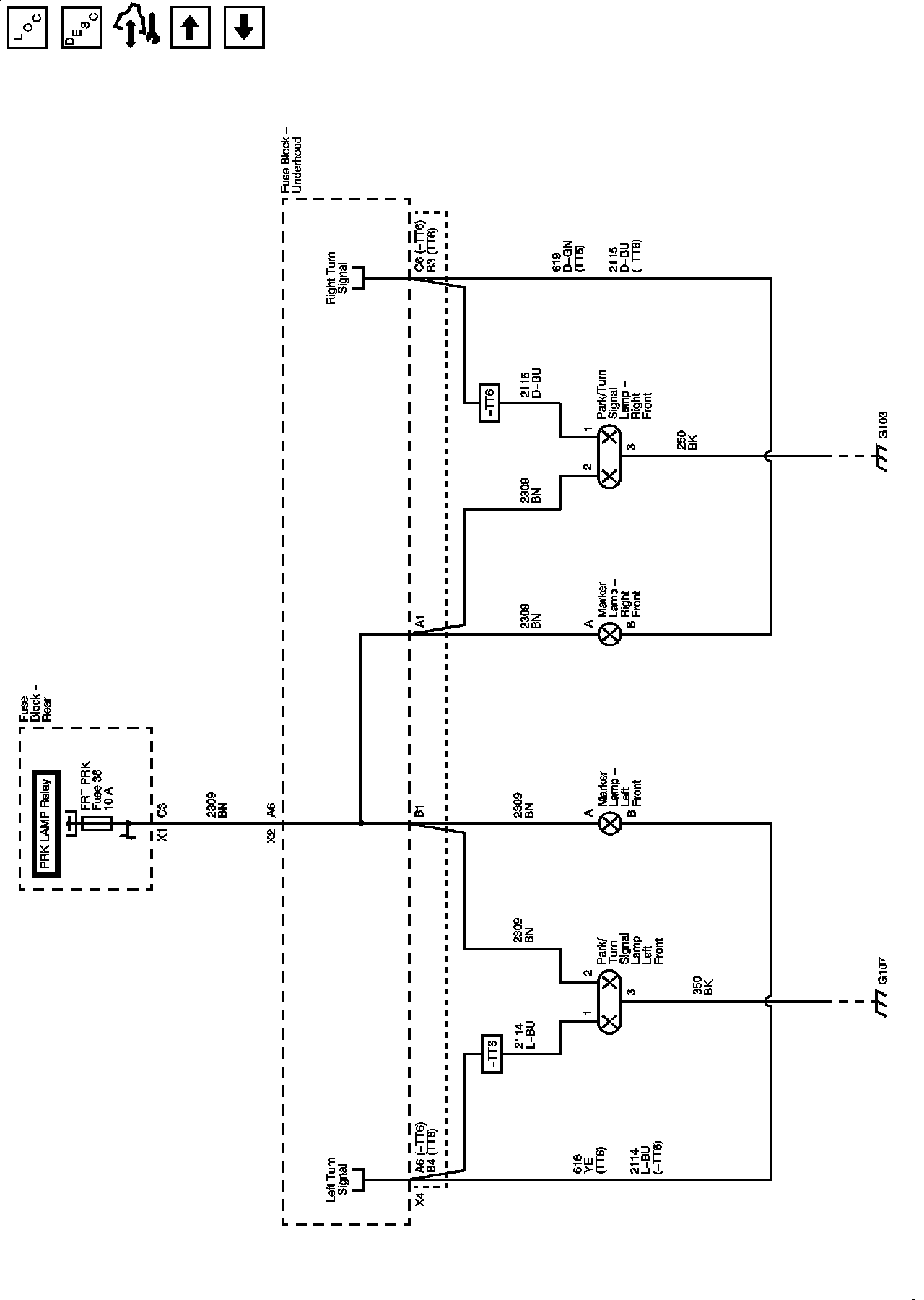

Exterior Lights Schematics

Marker and Front Park Lamps

Exterior Lights Diagram 2:
