Power Distribution Diagram 1
Power Distribution Diagram 1
Power Distribution Schematics

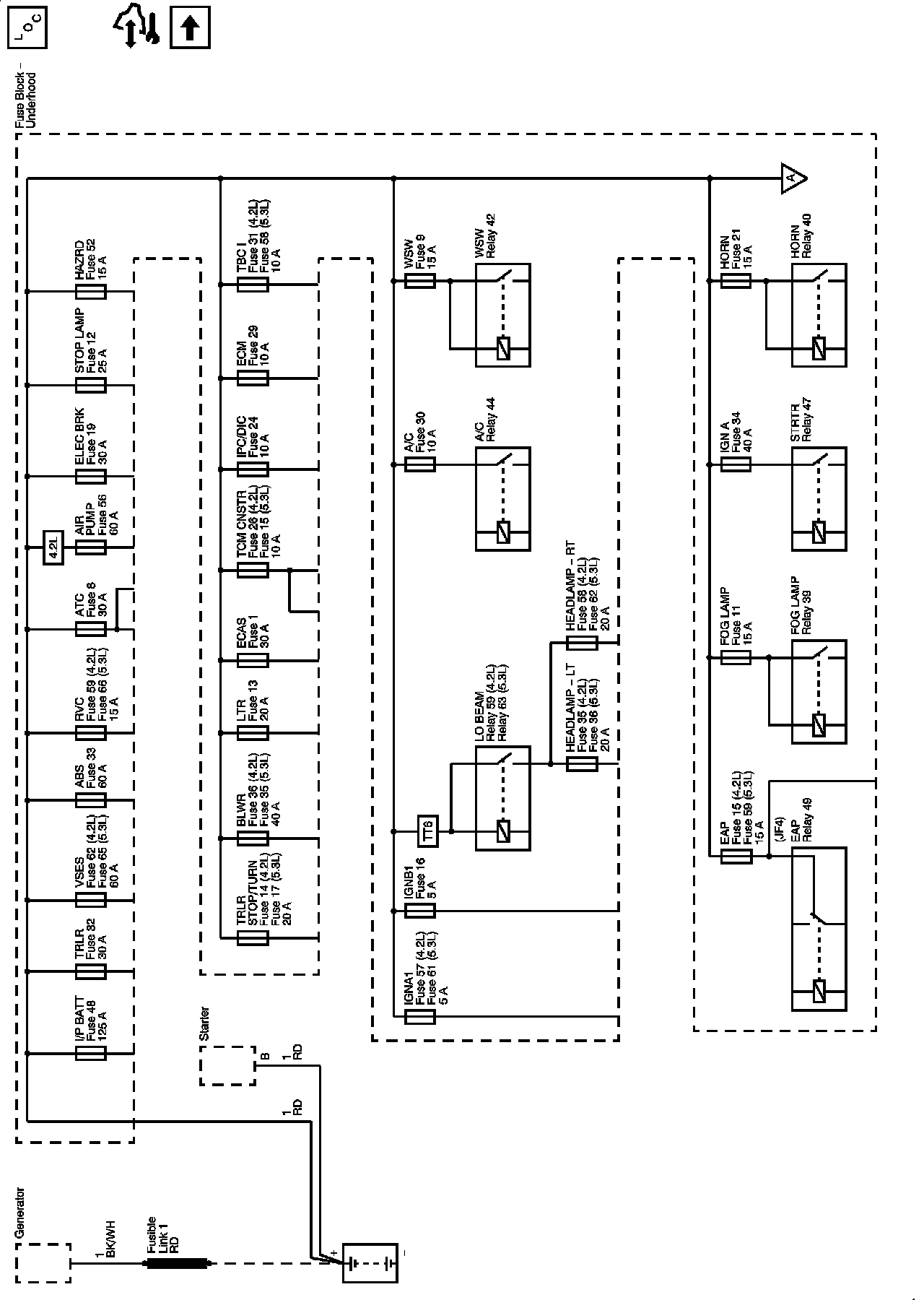

B+ BUS - Underhood Fuse Block - 1 of 2
