Power Distribution Diagram 5

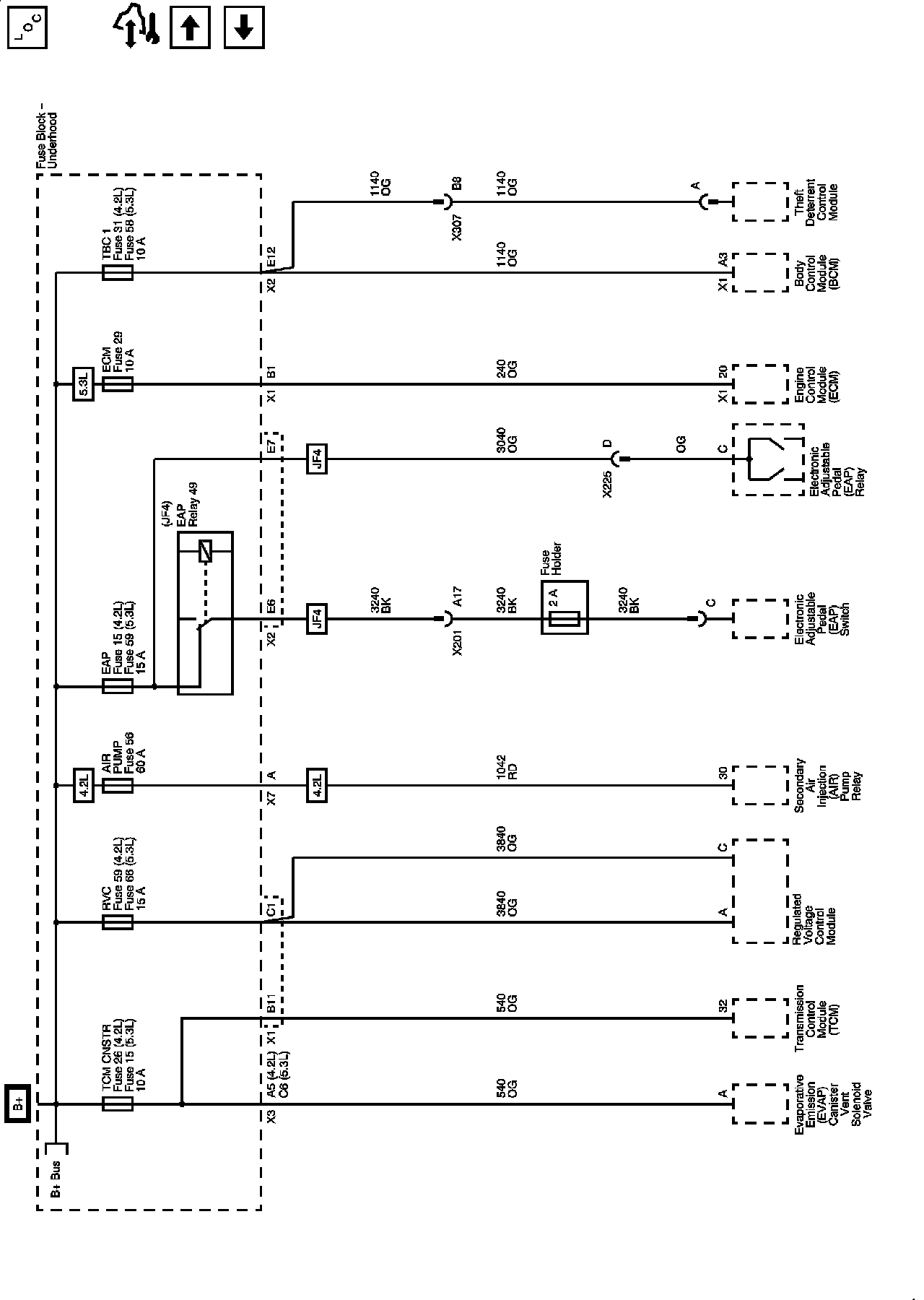

Power Distribution Diagram 5
Power Distribution Schematics
AIR PUMP, EAP, ECM, RVC, TBC I, and TCM CNSTR Fuses
