Power Distribution Diagram 8

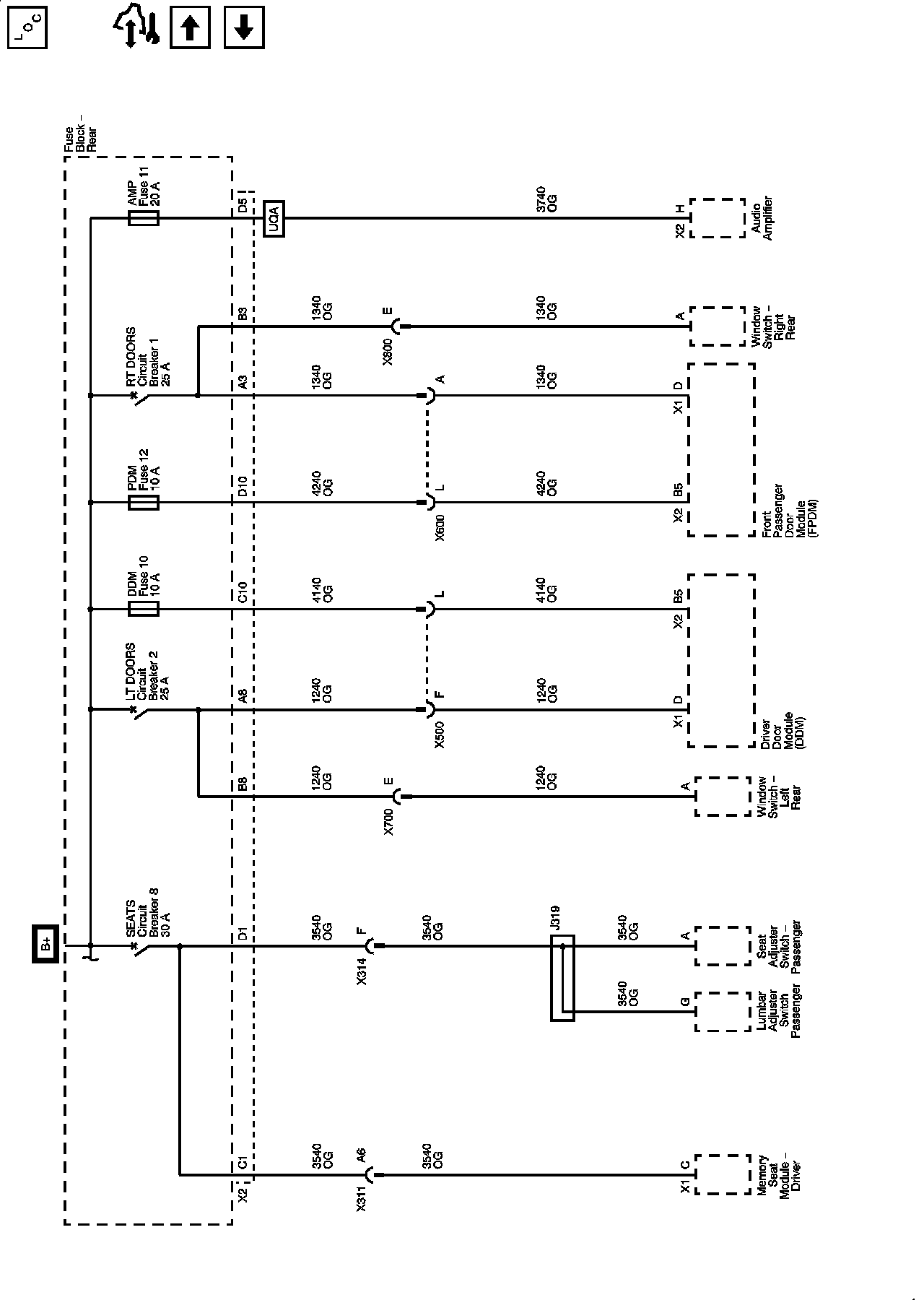

Power Distribution Diagram 8
Power Distribution Schematics
AMP, DDM, PDM Fuses, LT DOORS, RT DOORS, and SEATS Circuit Breakers
