Evaporative Emission Hoses/Pipes Replacement - Engine/Chassis

Evaporative Emission Hoses/Pipes Replacement - Engine/Chassis

Removal Procedure

1. Remove the evaporative emission (EVAP)/fuel hose/pipe assembly. Refer to Fuel Hose/Pipes Replacement - Chassis (Service and Repair).





Important: Note the position of the EVAP/fuel hose/pipe assembly clips before disassembly.


2. Remove the fuel/EVAP hose/pipe assembly retaining clips.

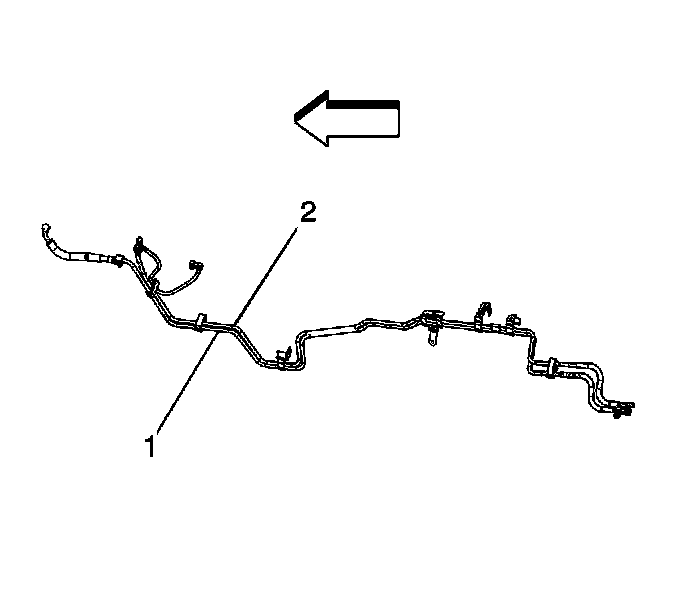

3. Separate the EVAP purge pipe (2) from the fuel pipe (1).

Installation Procedure




1. Position the new EVAP purge pipe (2) to the fuel pipe (1).
2. Install the EVAP/fuel hose/pipe assembly clips as noted during disassembly.
3. Install the EVAP/fuel hose/pipe assembly. Refer to Fuel Hose/Pipes Replacement - Chassis (Service and Repair).
