Trailer Connector/Provision Schematics
Trailer Connector/Provision Schematics
Trailer Connector/Provision Schematics

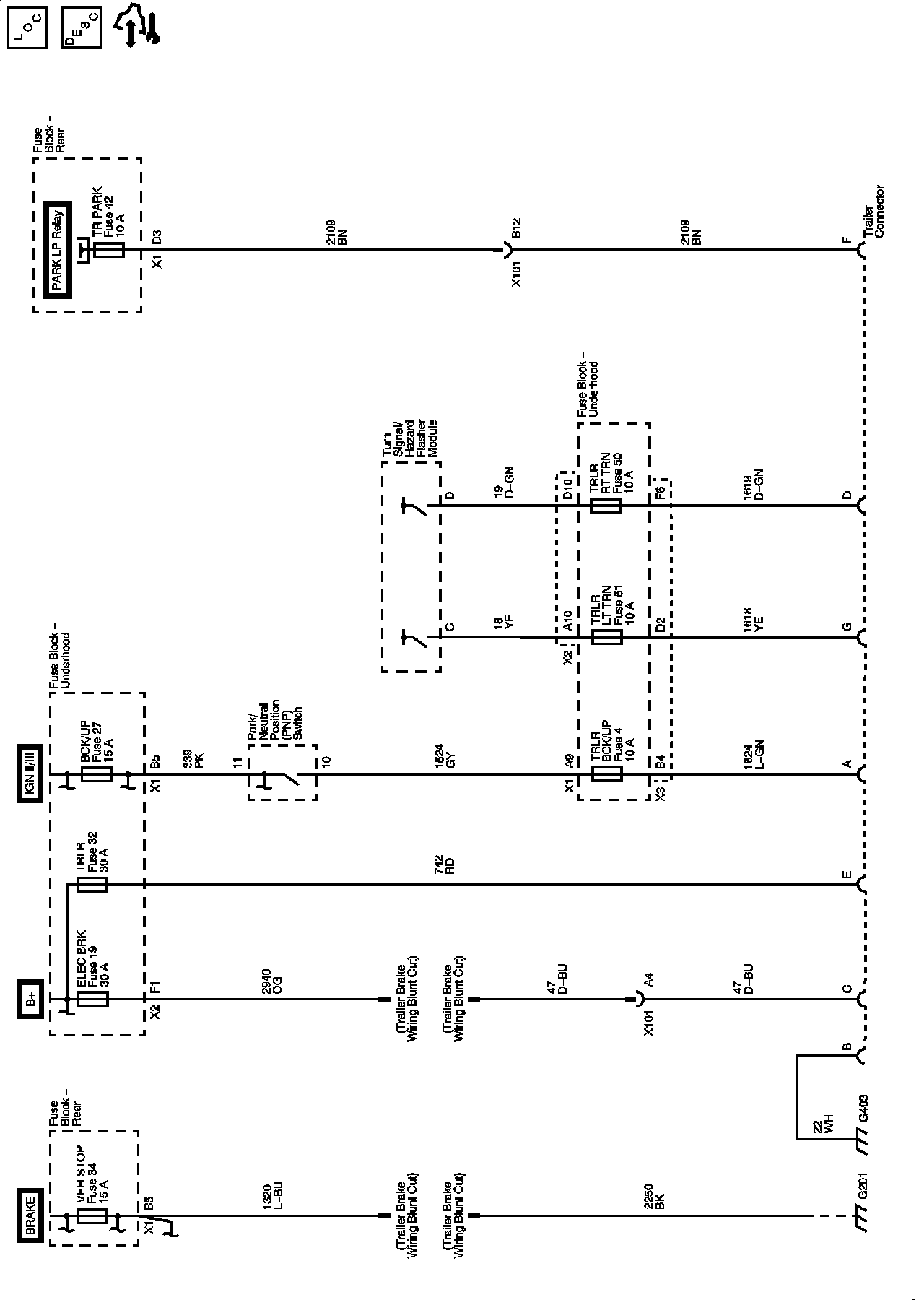

Trailer Wiring
Exterior Lights Diagram 9:
