Connector Views

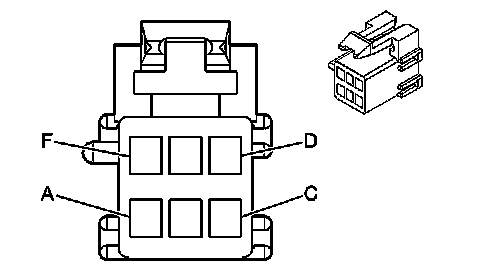

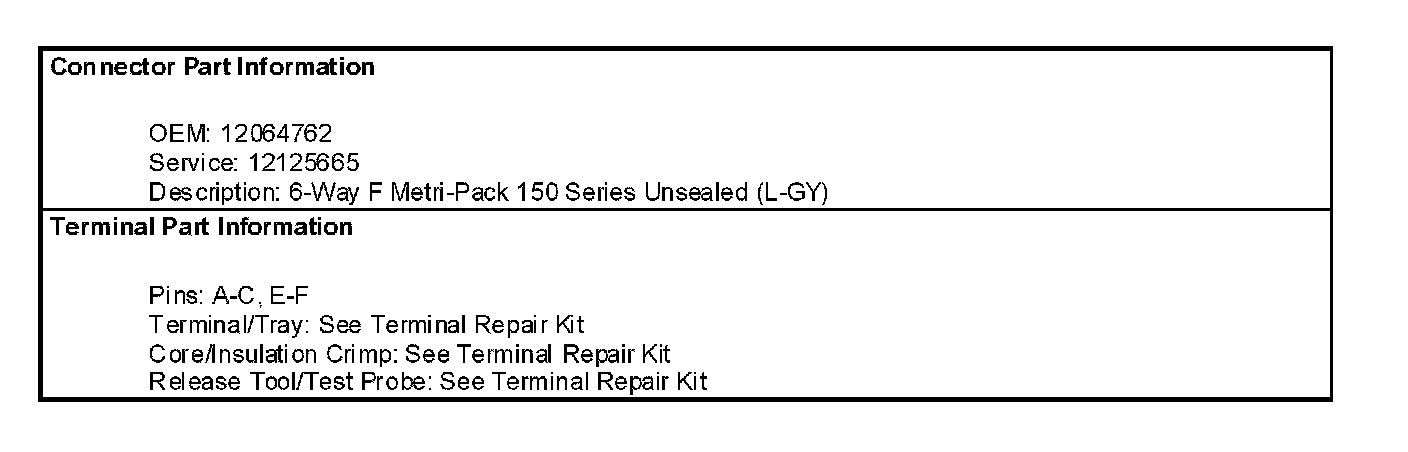

Shift Lock Control Connector End Views

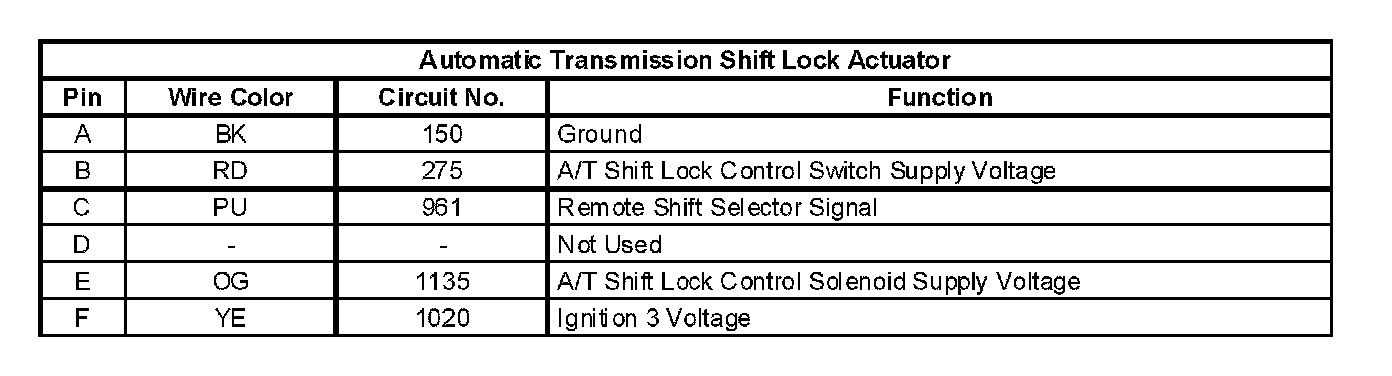

Automatic Transmission Shift Lock Actuator
Automatic Transmission Shift Lock Actuator:
