Windshield Washer Nozzle Replacement

Windshield Washer Nozzle Replacement

Removal Procedure

1. Remove the wiper arms. Refer to Windshield Wiper Arm Replacement (Windshield Wiper Arm Replacement).
2. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Service and Repair).

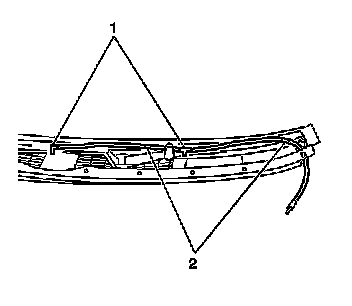

3. Remove the washer hose connection (1) from the nozzle.

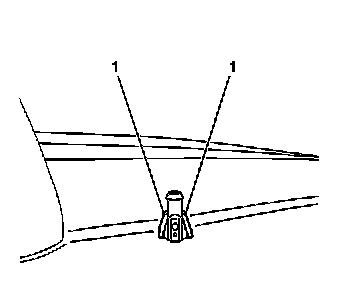

4. Remove the washer nozzles from the air inlet grille panel by squeezing the retaining tabs (1) and pushing outward.

Installation Procedure




1. Install the washer nozzles to the air inlet grille panel, by indexing the tab in the air inlet grille panel to the washer nozzle.
2. Be sure the retaining tabs (1) are secure.




3. Install the washer hose connection (1) to the washer nozzle.
4. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Service and Repair).
5. Install the wiper arms. Refer to Windshield Wiper Arm Replacement (Windshield Wiper Arm Replacement).
