Antenna Cable Replacement

Antenna Cable Replacement

Removal Procedure




1. Open the instrument panel (I/P) compartment to a full down position.

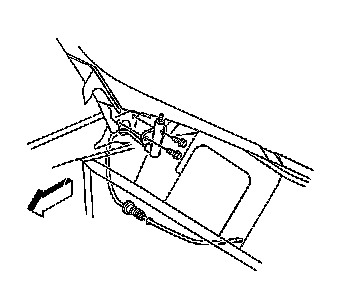

2. Disconnect the radio antenna cable (2) from the radio extension cable.
3. Remove the lower rear portion of the wheelhouse panel. Refer to Wheelhouse Panel Replacement (Front End) ()Wheelhouse Panel Replacement (Rear End) ().

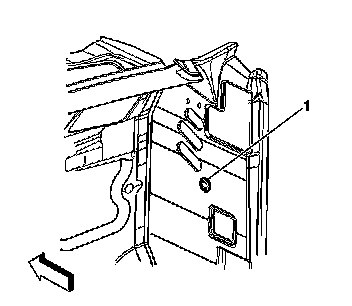

4. Reach up behind the wheelhouse panel and remove the antenna cable and grommet assembly from the cowl opening (1).
5. Pass the end of the radio antenna cable assembly through the cowl opening (1).
6. Remove the antenna mast. Refer to Fixed Antenna Mast Replacement (Service and Repair).
7. Open the hood.




8. Remove the radio antenna cable assembly retaining screws.
9. Pass the antenna cable and grommet assembly through the fender opening.
10. Remove the radio antenna cable assembly from the vehicle.

Installation Procedure




1. Install the radio antenna cable assembly to the vehicle.
2. Pass the antenna cable and grommet assembly through the fender opening.

Notice: Refer to Fastener Notice.

3. Install the radio antenna cable assembly retaining screws.

Tighten the radio antenna cable assembly screws to 2.8 Nm (25 in. lbs.).

4. Close the hood.
5. Install the antenna mast. Refer to Fixed Antenna Mast Replacement (Service and Repair).




6. Reach up behind the wheelhouse panel and pass the end of the radio antenna cable assembly through the cowl opening (1).
7. Install the antenna cable grommet assembly to the cowl opening.
8. Install the wheelhouse panel. Refer to Wheelhouse Panel Replacement (Front End) ()Wheelhouse Panel Replacement (Rear End) ().




9. Install the radio antenna cable (2) to the radio extension cable.
10. Close the I/P compartment.
