Brake Booster Vacuum Sensor
Brake Booster Vacuum Sensor

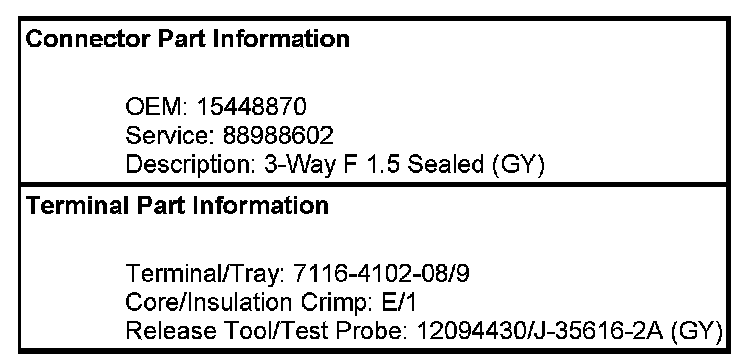

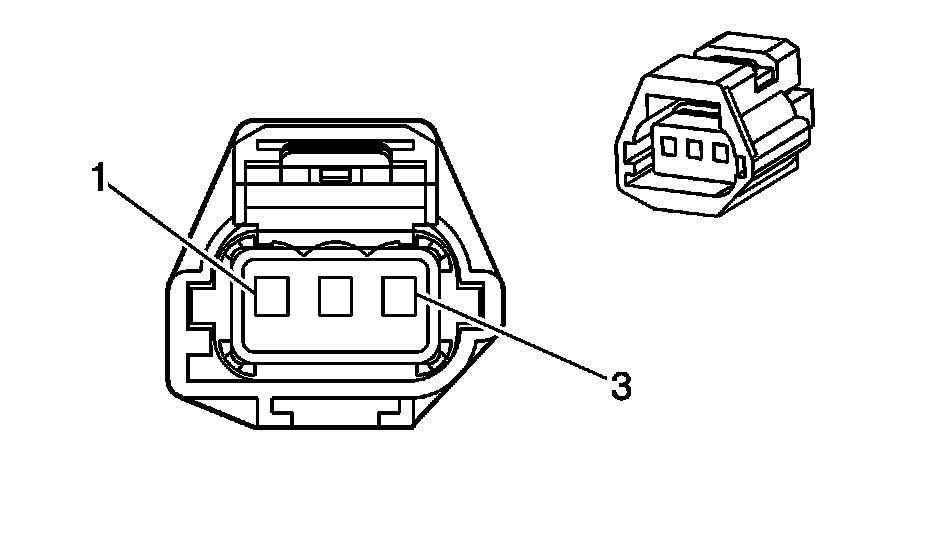

Engine Controls Connector End Views

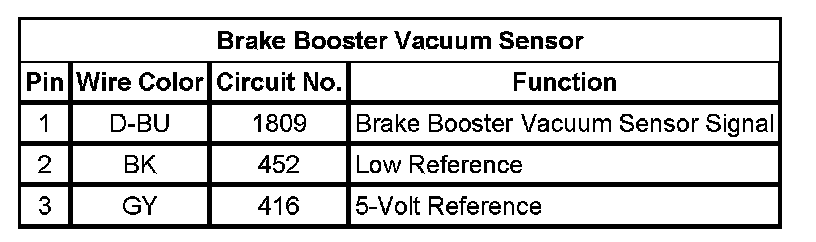

Brake Booster Vacuum Sensor
