Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-7X V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Buckle
Seat Belt Buckle
Component Connector End Views

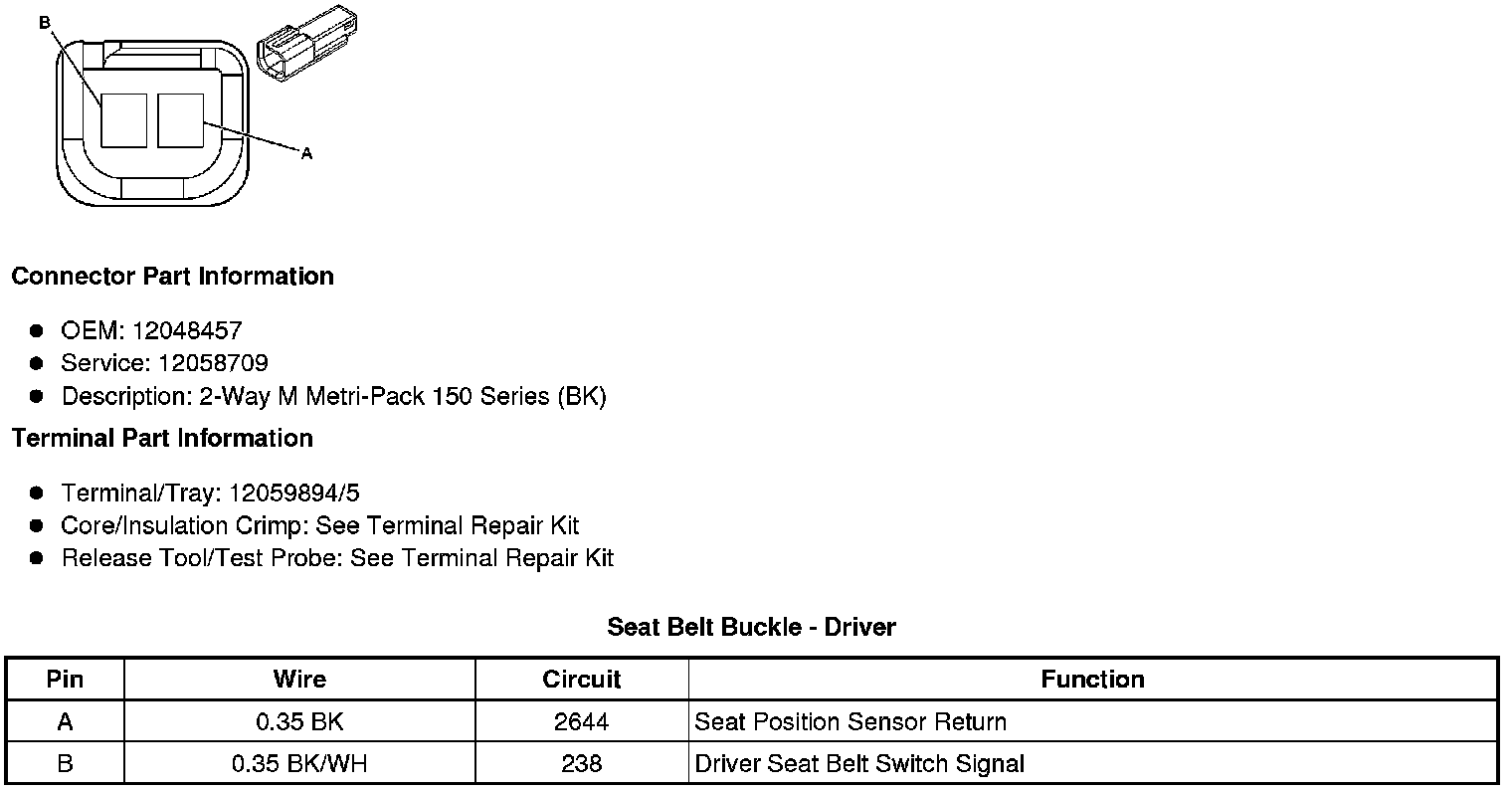

Seat Belt Buckle
- Driver

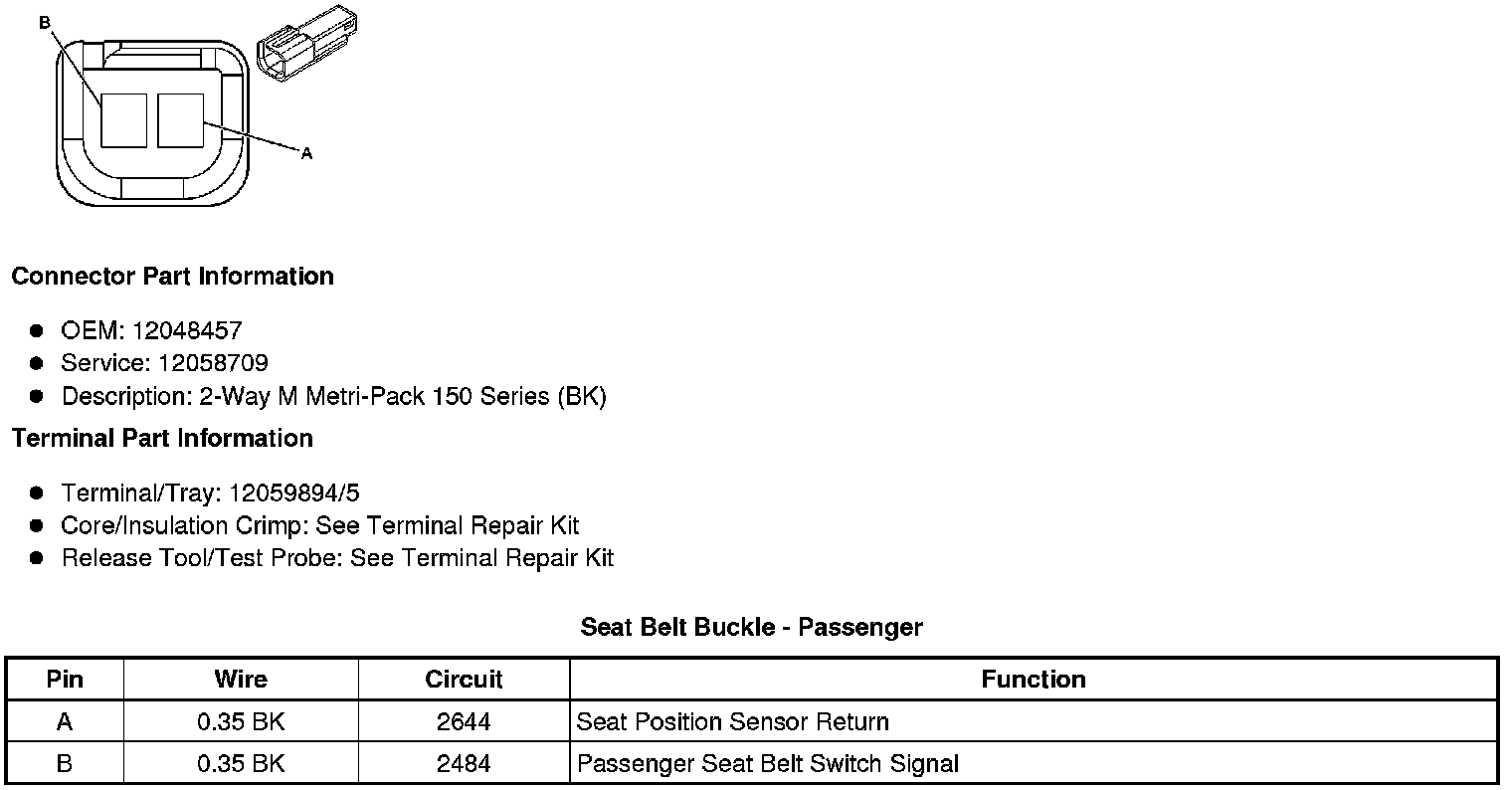

Seat Belt Buckle
- Passenger
