Diagrams
>>
Connector Views
>>
Wiper Switch
Wiper Switch
Component Connector End Views

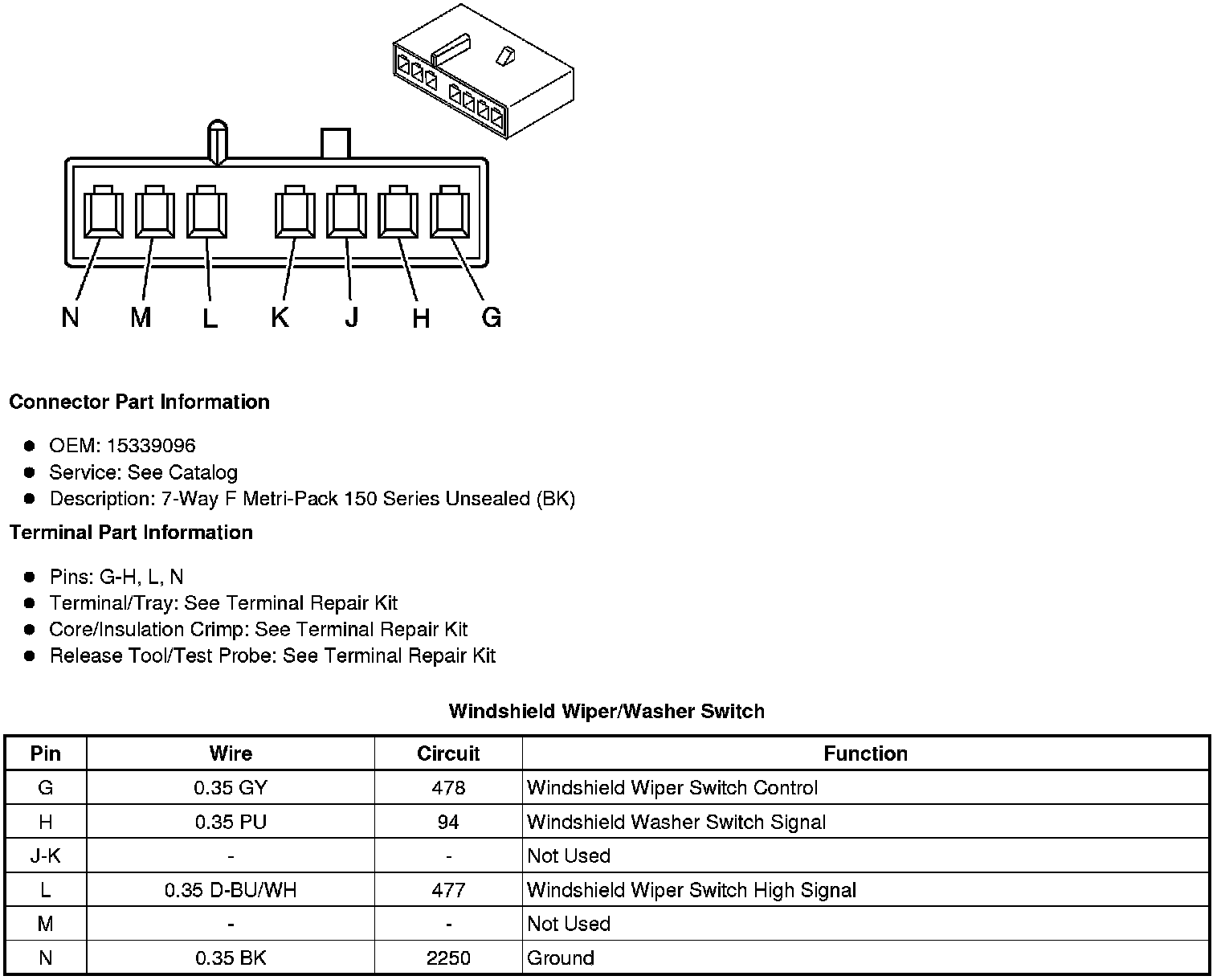

Windshield Wiper/Washer Switch

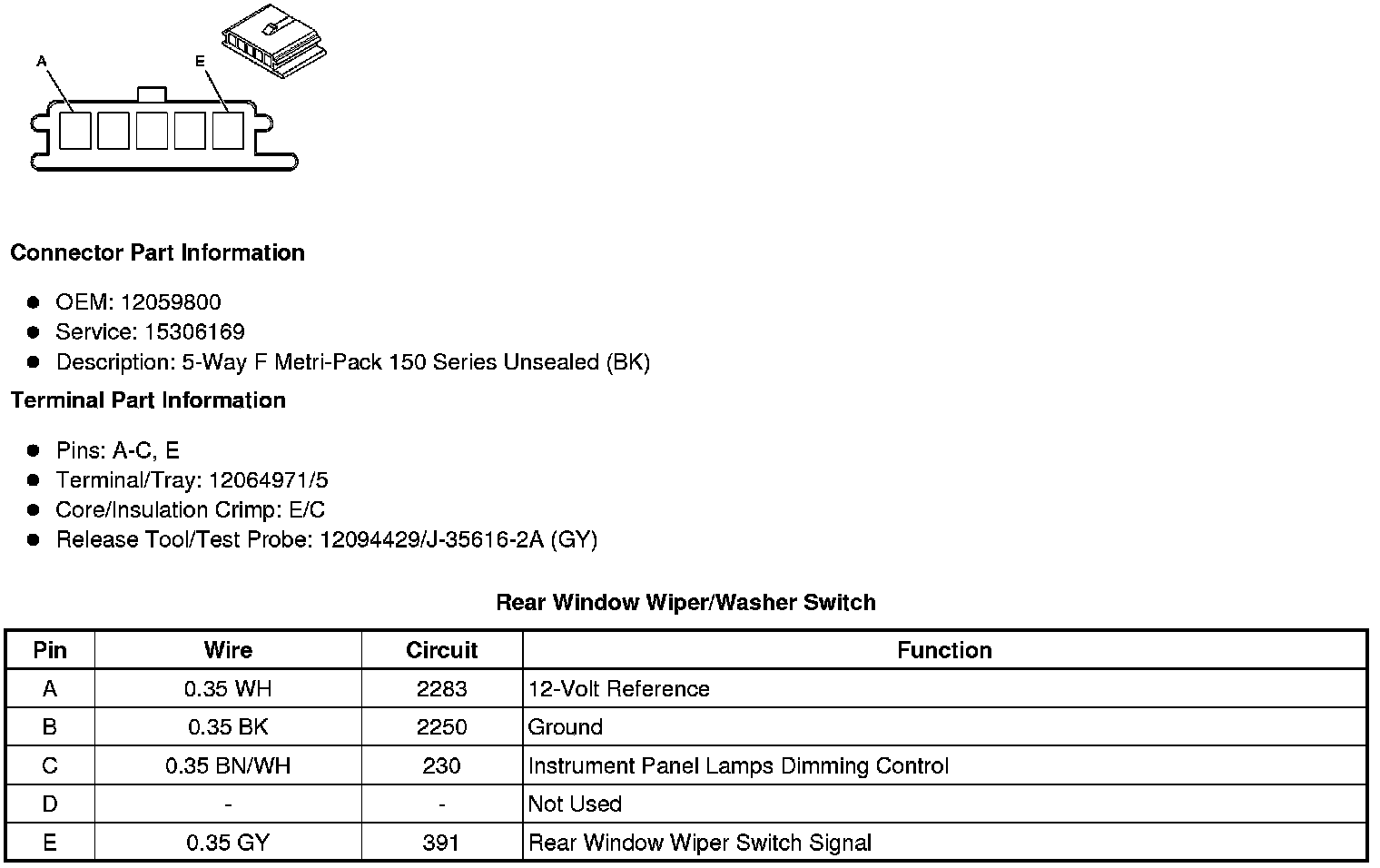

Rear Window Wiper/Washer Switch
